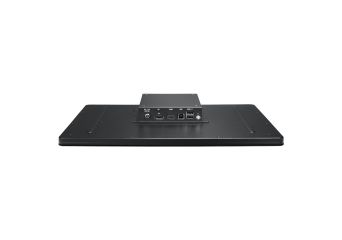

FPM-115W

15.6" Full HD Semi-Industrial Monitors with P-CAP Touch Control

Manufacturer: Advantech

Product was phase-out. Suggested successor - FPM-215W
15.6" full HD TFT LED LCD display
Built in 10-point PCAP multi-touch panel with USB interface
Slim bezel & compact design
Wide operating temperature from 0 to 50° C
Support VESA arm mounting (100 x 100mm)

Product out of stock

Free shipping from €300

Promocja cenowa na model HDR-15-5

Product intended for professional use only

Description
Technical Specification
Download
Recommended Products

FPM-115W

Description

In IIoT and Industry 4.0 era, more and more customers need data to be visualized to benefit process management and decision making. The FPM-100W series is a semi-industrialgrade monitor which provides vivid images and intuitive multi-touch functionalities. Along with its slim and compact design, FPM-100W series is suitable to be placed everywherethat both information display and human interactions are required to increase the production efficiency.

Technical Specification

General
Certification	BSMI, CCC, CE, FCC Class A, UL
Dimensions	382 x 241.3 x 43.8 mm
Enclosure	Front: ABS Rear Cover: SGCC
Mount	VESA
OS	Windows XP, Vista,7, 8,10,XPe and Linux
Power Input	External 36 W power adapter, with AC 100 V ~ 240 Vinput and DC +12 V @ 3 A output (included)
Power Consumption	15W +20%
Video Port	HDMI, DP
Weight	1,5 kg

Display
Type	Full HD
Size	15,6''
Resolution	1920 x 1080
Max. Color	262K
Viewing Angle	170°/170°
Luminance	220 cd/m2
Backlight Life	15,000 h
Contrast	800:1

Touchscreen
Type	Projected Capacitive Touch (P-CAP)
Interface	USB
Light Transmission	Above 85%

Environment
Operating Temperature	0 ~ 50 °C
Storage Temperature	-10 ~ 60 °C
Humidity	10 ~ 90% RH @ 40 °C, non-condensing
Vibration	1 Grms (5 ~ 500 Hz) (Operating, Random)
