new

ITA-560

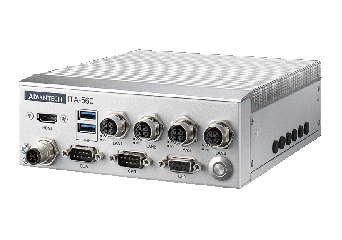

Compact Railway Computer with NVIDIA® Jetson Orin™ Nano / NX for AI Inference, EN 50155

Manufacturer: Advantech
Manufacturer: Advantech
  • Computer for railway applications
  • Fanless design for AI inference
  • Built-in NVIDIA® Jetson Orin™ NX 16GB or Orin™ Nano 8GB
  • Compliant with railway standards EN 50155 OT1 and EN 50121-3-2 EMC
  • M12 connectors resistant to vibration and shock
  • Available ports: 4 x M12 GbLAN, HDMI, 2 x USB 3.0, 1 x CAN (DB9), 1 x RS-232/422/485, DIO (DB9)
  • 1 x Mini PCIe, 1 x M.2 (E-key), 1 x M.2 (M-key), and 1 x M.2 (B-key) for easy expansion
  • Pre-installed Linux Ubuntu 20.04 operating system
Price from €2,698.00 Net price

High price? Log in and buy cheaper

Product out of stock

Free shipping from €300

See 1 model

Promocja cenowa na model HDR-15-5

Models

  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    ITA-560NX-LOA1
    Jetson Orin NX, 16G AI computing 24V, EN50155
    Out of stock Warranty:
    €2,698.00
    €3,318.54
    Login to check your price
    ITA-560NX-LOA1
    Jetson Orin NX, 16G AI computing 24V, EN50155
    Availability: Out of stock
    Net price:
    €2,698.00

Description

The ITA-560 computer is a fanless industrial computer designed for AI analytics applications, particularly in intelligent transportation systems. It is equipped with an NVIDIA® Jetson Orin™ NX or Orin™ Nano module, offering advanced data processing capabilities.

Example applications:

  • Behavioral analytics: detecting aggressive behavior, fall detection, suspicious movement,
  • Vandalism detection,
  • Facial recognition,
  • Object recognition (abandoned luggage, firearms, etc.),
  • People counting, studying train usage patterns,
  • Smoke and fire detection,
  • Anomaly detection.

Technical Specification

Function Description
System
Processor NVIDIA® Jetson Orin™ NX: 8-core Arm® Cortex®-A78AE v8.2 64-bit
NVIDIA® Jetson Orin™ Nano: 6-core Arm® Cortex®-A78AE v8.2 64-bit
GPU NVIDIA® Ampere GPU
1024 CUDA cores and 32 Tensor cores
Orin NX: Up to 100 (Sparse) and 50 (Dense) INT8 TOPs
Orin Nano: Up to 40 (Sparse) and 20 (Dense) INT8 TOPs
Memory Orin NX: 16 GB 128-bit LPDDR5
Orin Nano: 8 GB 128-bit LPDDR5
External I/O
Display 1 x HDMI
CAN 1 x CAN, DB9
USB 2 x USB 3.0 type A
Serial Port 1 x RS-232/RS-422/RS-485, DB9
DI/O 1 x 8bit (4in/4out), DB9
Internal I/O (Pin Header)
OTG USB 1 x Micro USB
Serial Port 1 x RS-232/RS-422/RS-485, DB9 (optional)
Ethernet
Controller Intel® I210-IT
Interface 10/100/1000 Mbps
Connector 4 x M12 (X-coded)
Expansion
Mini PCIe 1 x Mini PCIe slot
M.2 1 x M.2 (B-key) 3052 (5G/LTE)
1 x M.2 (E-key) 2230 (Wi-Fi/Bluetooth)
1 x M.2 (M-key) 2280 (storage)
SIM 1 x Nano SIM card slot
Antenna 6
Power
Input Range 24/110VDC
Connector 1 x M12 (S-coded)
Environmental
Operating Temperature -25 ~ 55 °C
Storage Temperature -40 ~ 85 °C
Humidity 5% ~ 95% @ 40 °C (non-condensing)
Mechanical
Dimensions (W x H x D) 160 x 60 x 190 mm
Mounting
Mount Options Wall mount
Certification
EMC CE, FCC, BSMI, CCC
Safety CE, FCC, BSMI, CCC
EN50155 Compliance -25 ~ 55 °C (EN 50155 OT1), IEC 61373, Class S2, Class C1, EN 50121-3-2
