PCIE-1802
8/4-ch, 24-Bit, 216 kS/s Dynamic Signal Acquisition PCI Express Card
Manufacturer: Advantech
Manufacturer: Advantech
- 24-bit resolution ADCs with 115 dB dynamic range
- Wide input ranges from ±0.2 V to ±10 V
- Software selectable AC/DC coupling
- Software configurable 4 or 10 mA Integrated Electronic Piezoelectric Excitation (IEPE)
- Built-in anti-aliasing filter
- 8 simultaneously sampled analog inputs up to 216 kS/s
- Multiple card synchronization
- Full auto-calibration
Price from €1,990.00 Net price
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
PCIE-1802
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPCIE-1802-AE8-ch, 24-Bit DSA PCIE CardOut of stock Warranty: €3,411.00€4,195.53Login to check your price PCIE-1802-AE8-ch, 24-Bit DSA PCIE CardAvailability: Out of stockNet price:€3,411.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPCIE-1802L-AE4-ch, 24-Bit DSA PCIE CardOut of stock Warranty: €1,990.00€2,447.70Login to check your price PCIE-1802L-AE4-ch, 24-Bit DSA PCIE CardAvailability: Out of stockNet price:€1,990.00
Description

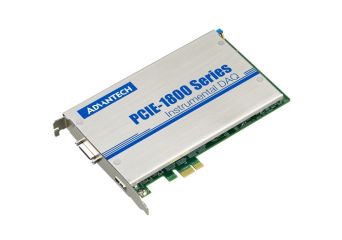

The Advantech PCIE-1802 is a 24-bit high-accuracy data acquisition PCI Express module specifically designed for sound and vibration applications. This module has built-in 4 or 10 mA excitation currents for IEPE sensors such as accelerometers and microphones.
- 24-bit resolution ADCs with 115 dB dynamic range
- Wide input ranges from ±0.2 V to ±10 V
- Software selectable AC/DC coupling
- Software configurable 4 or 10 mA Integrated Electronic Piezoelectric Excitation (IEPE)
- Built-in anti-aliasing filter
- 8 simultaneously sampled analog inputs up to 216 kS/s
- Multiple card synchronization
- Full auto-calibration
Download
