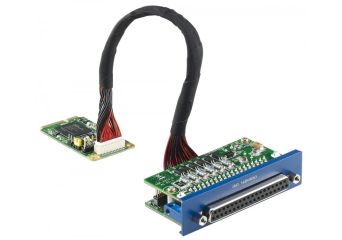

PCM-27D24DI

iDoor Module: 24-Channels Isolated Digital I/O with counter mPCIe, DB37 The PCM-27 series are categorized as digital input/output modules from Advantech iDoor Technology. They are all compatible with the PCI Express® Mini Card Specification Revision 1.2. including Isolated / Non-Isolated RS-232/422/485 communication cards for automation control, Wi-Fi/3G/GPS/GSM/LTE wireless communication models for data exchange during the management and machine level of automation application, Zigbee module as an IoT terminal or controller and PoE function for smart camera in detect inspection application of production. This is a flexible design that enables customers to customize their features which meet iDoor Technology.

• Meets Advantech Standard iDoor Technology
• PCI Express® Mini Card Specification Revision 1.2 compliant
• Supports wide-input/output voltage (10-30 VDC/5-30 VDC)
• High over-voltage-protection (70 VDC) and voltage isolation (2,500 VDC)
• Easy configuration & efficient programming by Advantech DAQNavi
• I/O address automatically assigned by PCIe plug & play
• Keeps the output settings and values after system hot reset
• Supports Embedded Automation PC UNO-2200/2300/2400 series
• Supports Control DIN-Rail PC UNO-1300/1400 series
• Supports Control Cabinet PC UNO-3200/3300/3400 series
• Supports Control Panel Computers TPC-xx81/xx82 series
• Supports Thin Client Panel Computers TPC-xx51 series
