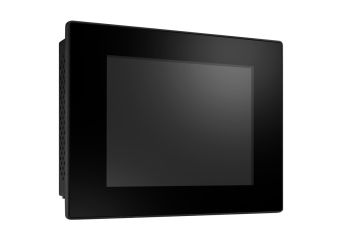

PPC-306 EHL
6.5" Fanless Panel PC with Intel Celeron N6210
- Industrial-grade 6.5" VGA TFT LCD with LED backlight
- Durable true-flat touchscreen with 5-wire resistive touch control
- Embedded Intel® Celeron® N6210 dual-core, 1.2 GHz, processor
- Up to 32 GB DDR4 SDRAM
- Compact, fanless design with IP66-rated front panel
- Supports expansion via M.2 slot
- Supports VESA 75 x 75 mounting holes
- No power supply, RAM, disk and operating system included
Price from €640.00 Net price
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
PPC-306 EHL
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPPC-306-RN6A6.5" PPC w/Intel N6210, Res.Out of stock Warranty: €640.00€787.20Login to check your price PPC-306-RN6A6.5" PPC w/Intel N6210, Res.Availability: Out of stockNet price:€640.00
Technical Specification
| PPC-306 EHL | |
| Processor | Celeron N6210 dual core |
| RAM | up to 32 GB DDR4 |
| VGA (DSub) | - |
| HDMI | - |
| DP | - |
| Audio | - |
| Gigabit Ethernet | 2 |
| 2,5" HDD | - |
| Slot mSATA | - |
| Slot M.2 | 1 x M.2 slot: M key for storage (SATA only, 2242) 1 x M.2 slot : E key for wireless module (Type: 2230) |
| USB 3.0 | 2 |
| USB 2.0 | 1 |
| RS-232 | 1 |
| RS-232/422/485 | 1 |
| Slot miniPCIe | - |
| TPM | - |
| Display | 6.5" TFT LCD (LED backlight) |
| Resolution | 640 x 480 |
| Contrast | 1000 |
| Luminance | 800 |
| Touch type | 5-wire resistive touch |
| Controller | USB interface |
| Working temp. | -10°C ~ +50°C |
