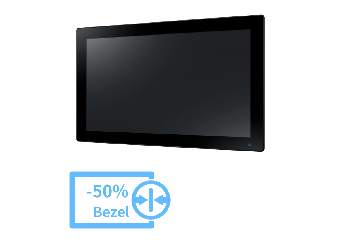

PPC-315SW RPL
15.6" fanless panel PC with 13th gen Intel Core processors (i7/i5/i3)
- Built-in Intel Core i3/i5/i7 13th gen.
- Industrial-grade true-flat touchscreen with IP66-rated front panel
- High-performance, fanless 13th gen Intel Core processors
- Slim Compact, fanless design with aluminum alloy enclosure
- Supports dual displays (1x external DP), iDoor and PCI or PCIe
- 1x M.2 M Key 2242/2280 (SATA or NVME PCIe x4) for storage, support SATA RAID 0,1
- 2x 2500BASE-T Ethernet Supports Time-Sensitive Network(TSN) technology
- Supports VESA 100
- Support TPM2.0 hardware security
- Support iDoor, PCI or PCIe
- No RAM, storage, power supply and operating system included
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
PPC-315SW RPL
Technical Specification
| PPC-315SW RPL | |
| Processor | Intel Core i3/i5/i7 13th gen. |
| RAM | Up to 32 GB SODDR5 |
| VGA (DSub) | - |
| HDMI | - |
| DP | 1 |
| Audio | Line out |
| Gigabit Ethernet | 2x 2.5 GbE LAN |
| 2,5" HDD | 1 |
| Slot mSATA | - |
| Slot M.2 | 1 x M.2 M Key 2242/2280 (SATA or NVME PCIe x 4), support SATA RAID 0,1 1 x M.2 B key 2242 or 3042/3052 (SATA, PCIe X1 ,USB 3.0 & SIM slot)*** 1 x M.2 E Key 2230 (PCIe & USB 2.0) |
| USB 3.2 | 3 |
| USB 2.0 | 1 |
| RS-232/422/485 | 2 |
| Slot miniPCIe | - |
| Expansions | 1x iDoor (optional) 1x PCI or PCIe x1 (optional) |
| TPM | Supports TPM 2.0 |
| Display | 15.6" TFT LCD (LED backlight) |
| Resolution | 1920 x 1080 |
| Contrast | 800 |
| Luminance | 350 |
| Touch type | Multi-touch projected capacitive |
| Conrtoller | USB interface |
| Front Panel Protection | IP66 compliant |
| Working temp. | -10°C ~ +50°C |
*** For Storage,choose either the B key or the 2.5” SATA bay
