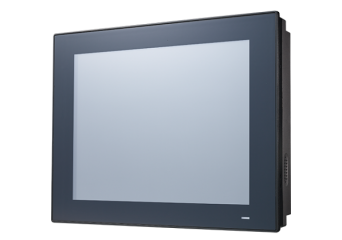

PPC-412 is a new generation industrial interactive panel PC with a 12.1" TFT LCD 1024 x 768 resolution, which features a flat, sleek design to greatly reduce maintenance effort.
|
System |
CPU |
Intel® Core™ i5-7300U dual core (default); i7-7600U/i3-7100U (optional) |
|
|
Frequency |
2.6 GHz, up to 3.5 GHz with turbo |
||
|
L2 Cache |
3 MB |
||
|
RAM |
1 x SODIMM DDR4 1866/2133 MHz, (max. 16 GB) |
||
|
Pamięć |
1 x 2.5" SATA bay 1 x M.2 bay (size: 22 x 42 mm, socket 2 B key, for storage only) |
||
|
Network (LAN) |
2 x 10/100/1000 Mbps Ethernet (Intel I219LM; Intel I211-AT/ I210AT) |
||
|
I/O |
3 x RS-232, 1 x RS-422/485 with 1K VDC isolation 4 x USB 3.0 1 x Line-out, 1 x Mic-in 1 x DB15 VGA 1 x DisplayPort (1.2) 1 x TPM 2.0 internal(optional) |
||
|
Expansion |
1 x Mini PCIe |
||
|
Watchdog Timer |
255 timer levels, set up by software |
||
|
Speaker |
2 x 1W |
||
|
Characteristics |
Dimensions |
317 x 246 x 60.5 mm (12.4 x 9.7 x 2.4 in) |
|
|
Physical |
Weight |
3.4 kg (7.5 lb) |
|
|
OS Support |
OS Support |
Microsoft® Windows 10 (64-bit), Win 10 LTSC, Linux |
|
|
Power Consumption |
Input Voltage |
9 - 32 VDC |
|
|
Power Consumption |
i5-7300U 60W (Burn-in test 8.0 in Windows 10 64bit) |
||
|
LCD |
Display Type |
12,1" TFT LCD (LED backlight) |
|
|
Resolution |
1024x768 |
||
|
Viewing Angle |
89 (left), 89 (right), 89 (up), 89 (down) |
||
|
Luminance (cd/m²) |
600 |
||
|
Contrast |
1000 |
||
|
Backlight Lifetime |
50,000 hr (min.) |
||
|
Touchscreen |
Type |
ELO 5-wire resistive touch |
|
|
Light Transmission |
80+5% at 550 nm wavelength |
||
|
Controller |
USB interface |
||
|
Environment |
Operating Temperature |
0 - 50°C (14 - 122°F) |
|
|
Storage Temperature |
-20 - 60 °C (-4 - 140 °F) |
||
|
Relative Humidity |
10 - 95% @ 40 °C (non-condensing) |
||
|
Shock |
Operating 10 G Peak Acceleration (11 ms Duration), Follows IEC 60068-2-27 |
||
|
Vibration |
Operating Random Vibration Test 5 ~ 500Hz, 2Grms @with SSD, Follows IEC 60068-2-64 |
||
|
EMC |
CE, FCC Class B, BSMI |
||
|
Safety |
CB, UL, CCC, BSMI |
||
|
Front Panel Protection |
IP66 compliant |
||
