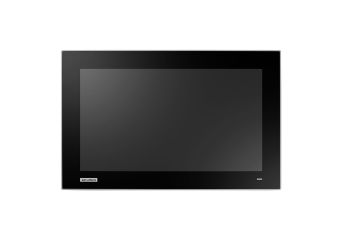

TPC-100W

Panel computers TPC-115W/110W/107W-N31A from series TPC-100W, processor NXP ARM Cortex, up to 4GB RAM and 16GB eMMC, IP66.

Manufacturer: Advantech

Embedded NXP ARM Cortex-A53 i.MX 8M Mini quad-core processor
16:9 LCD with multi-touch P-CAP and true-flat IP66-rated front panel
Built-in 4GB DDR4 RAM
16 GB eMMC storage onboard
1 mb FRAM backup memory for unexpected power interruptions
2 x Serial port with 120Ω termination resistor that one supports the CAN 2.0B protocol and offers a programmable bit rate of up to 1 Mb/sec
Embedded browser and for rapid Web App development
Supports Linux Yocto and Android
Optional and mPCIe expansion modules
Wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F)
No power supply and operating system

Price from €733.00 Net price

High price? Log in and buy cheaper

In stock

Place the order by 12:00, the package will be shipped on the same day

Free shipping from €300

See 1 model

Promocja cenowa na model HDR-15-5

Product intended for professional use only

Models
Description
Technical Specification
Download
Recommended Products

TPC-100W

Models

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
TPC-110W-N31A 10.1"i.MX 8M Mini Quad, 2GB RAM, 16GB eMMC,W/CAN	In stock	Warranty:		€733.00 €901.59 Login to check your price	Login to check your price	pcs.

TPC-110W-N31A

10.1"i.MX 8M Mini Quad, 2GB RAM, 16GB eMMC,W/CAN

Availability:

In stock

Net price:

€733.00

Description

Technical Specification

TPC-100W-N31A (EN)	TPC-115W-N31A	TPC-110W-N31A	TPC-107W-N31A
Processor	Quad-core NXP ARM Cortex-A53 i.MX8M Mini	Quad-core NXP ARM Cortex-A53 i.MX8M Mini	Quad-core NXP ARM Cortex-A53 i.MX8M Mini
Operating system	Linux Yocto 3.0 (ver. YA), Android 10 (ver. AA)	Linux Yocto 3.0 (ver. YA), Android 10 (ver. AA)	Linux Yocto 3.0 (ver. YA), Android 10 (ver. AA)
RAM size	Up to 4GB RAM DDR4	Up to 4GB RAM DDR4	Up to 4GB RAM DDR4
Hard Drive capacity	16 GB eMMC	16 GB eMMC	16 GB eMMC
Extra memory	1MB FRAM	1MB FRAM	1MB FRAM
Aspect ratio	15,6"	10,1"	7"
Ecran type	FHD TFT LCD, anti-glare	TFT LCD, anti-glare	TFT LCD, anti-glare
Max. Resolution	1920 x 1080	1280 x 800	1024 x 600
Dimensions	419.7 x 269 x 52 mm	283.1 x 202.3 x 52 mm	205 x 146.92 x 52 mm
Certification	CE, BSMI, CCC, UL, FCC Class A	CE, BSMI, CCC, UL, FCC Class A	CE, BSMI, CCC, UL, FCC Class A
Communication	2 x 10/100/1000 Mbps LANs	2 x 10/100/1000 Mbps LANs with optional IEEE 802.3at/af PoE-PD modul	2 x 10/100/1000 Mbps LANs with optional IEEE 802.3at/af PoE-PD modul
Power consumption	about 9W ; max. 21W	about 9W ; max. 21W	about 9W ; max. 21W
Operating temperation	-20 ~ 60 °C	-20 ~ 60 °C	-20 ~ 60 °C
Storage temperation	-30 ~ 70 °C	-30 ~ 70 °C	-30 ~ 70 °C
Humidity	10 ~ 90%	10 ~ 90%	10 ~ 90%
Unit enclosure	Die-cast aluminum alloy front bezel PC + ABS rear housing	Die-cast aluminum alloy front bezel PC + ABS rear housing	Die-cast aluminum alloy front bezel PC + ABS rear housing
Ingress protection	IP66	IP66	IP66
Vibration protection	2 grms 5 ~ 500Hz	2 grms 5 ~ 500Hz	2 grms 5 ~ 500Hz
Shock protection	10 G	10 G	10 G
Protection	Against water and dust ingress	Against water and dust ingress	Against water and dust ingress
Compability	VESA and panel mounting	VESA and panel mounting	VESA and panel mounting
Serial ports	2 x Serial port with 120Ω termination resistor that one supports the CAN 2.0B	2 x Serial port with 120Ω termination resistor that one supports the CAN 2.0B	2 x Serial port with 120Ω termination resistor that one supports the CAN 2.0B
USB types	1 x USB 2.0 type B client (internal); 2 x USB 2.0 typu A	1 x USB 2.0 type B client (internal); 2 x USB 2.0 typu A	1 x USB 2.0 type B client (internal); 2 x USB 2.0 typu A
Memory cards	1 x Micro SD (internal)	1 x Micro SD (internal)	1 x Micro SD (internal)
RJ types	RS-232/422/485 (COM1); RS-485/CAN (COM2)	RS-232/422/485 (COM1); RS-485/CAN (COM2)	RS-232/422/485 (COM1); RS-485/CAN (COM2)
LAN types	LAN A; LAN B	LAN A; LAN B	LAN A; LAN B
Antenna types	2	2	2
