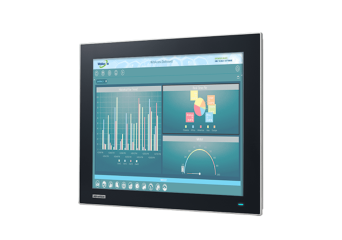

TPC-317 EHL

17" SXGA Elkhart Lake Thin-Client Terminal with Intel Atom / Celeron Processor

Manufacturer: Advantech

Intel Elkhart Lake (EHL) Atom x6425E 2.00 GHz quad-core / Celeron J6412 2.00 GHz quad-core processor
Built-in 8 GB DDR4 SDRAM
True-flat touchscreen with 5-wire resistive touch control and IP66-rated front panel
Wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F)
Front-facing LED indicators to show operating status
Built-in Advantech iDoor technology, SSD/HDD bay and VESA mount
Compact, fanless system with aluminum alloy front bezel and chassis grounding protection
Supports Advantech’s SNMP Subagent software
Supports Advantech’s WISE-PaaS/RMM remote management software
No power supply, disk and operating system included

Price from €1,412.00 Net price

High price? Log in and buy cheaper

Product out of stock

Free shipping from €300

Promocja cenowa na model HDR-15-5

Product intended for professional use only

TPC-317 EHL

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
TPC-317-RE23A 17" SXGA Touch Panel PC, Atom 6425E 2.0 GHz, 8G	Out of stock	Warranty:		€1,412.00 €1,736.76 Login to check your price	Login to check your price	pcs.

TPC-317-RE23A

17" SXGA Touch Panel PC, Atom 6425E 2.0 GHz, 8G

Availability: Out of stock

Net price:

€1,412.00

General
BIOS	AMI UEFI
Safety	BSMI, CCC, CE, FCC Class A, UL
Cooling	Fanless
Diemensions	410.4 x 324.4 x 68 mm
Case	Front bezel: Die cast aluminum alloy Back housing: Die cast aluminum alloy
Mount Options	VESA mount, Desktop/wall/panel
OS Support	Windows 10 Enterprise LTSC, Advantech Linux, Android
Power input	24 VDC +/- 20%
Watchdog Timer	15 ~ 255 sec (system)
Weight	6.1kg

Hardware
CPU	Intel Atom x6425E 2.00 GHz, quad core / Celeron J6412 2.00 GHz, quad core processor
RAM	1 x SODIMM 8 GB DDR4 SDRAM (up to 32 GB)
LAN	2 x Intel® I226; 2.5GbE
Expansion slots	1 x Full-size mini PCIe
Storage	1 x M.2 B key 2242/ 2280 (SATA/ USB3.0) 3042/ 3052 (5G) 1 x 2.5" SSD/ HDD (SATA, Max. 7mm)
I/O	1 x RS-232 1 x RS-232/422/485 3 x USB 3.2 1 x USB 2.0 1 x iDoor slot 1 x Displayport (Video output) 1 x Audio line out/ mic in 1 x Remote Power Buttom

Touchscreen
Lifespan	36 million touches at a single point
Light Transmission	Above 75%
Resolution	Linearity
Type	5-wire analog resistive

Environment
Humidity	10 ~ 95% RH @ 40 °C, non-condensing
Ingress Protection	IP66-rated front pane
Operating Temperature	-20 ~ 60 °C
Storage Temperature	-30 ~ 70 °C
Vibration Protection	With SSD: 1 Grms (5 ~ 500 Hz) (operating, random vibration)
