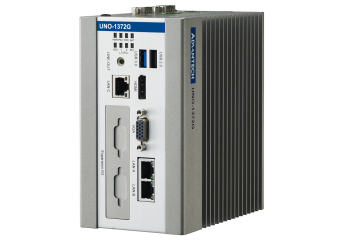

UNO-1372G

Intel® Atom™ Quad-Core Small Size Control DIN-rail PC w/ 3 x GbE, built-in 4GB DDR3L, 2 x mPCIe, 1 mSATA, 2 x COM, 8 x DI/O, 3 x USB, HDMI, VGA

Manufacturer: Advantech
Manufacturer: Advantech
  • Intel® Atom E3845 1.91GHz processor with 4GB DDR3L Memory
  • 3 x GbE, 3 x USB, 2 x COM, 1 x VGA, 1 x HDMI, Audio, iDoor, mSATA, 2 x mPCIe, 1 x SATA, 4 x DI, 4 x DO, 1 x Power Terminal
  • Compact with Fanless Design
  • Dual Power Input for avoiding Power Down Time
  • Exchangeable RTC Battery with easy Access on the Top
  • Digital I/O with Isolation Protection for Sensing and controlling
  • Diverse system IO and Supports Fieldbus Protocol by iDoor Technology as a Protocol Gateway
  • Supports MRAM by iDoor Technology
  • LAN Redundancy (Teaming)
Price from €1,164.00 Net price

High price? Log in and buy cheaper

In stock

Place the order by 12:00, the package will be shipped on the same day

Free shipping from €300

See 1 model

Promocja cenowa na model HDR-15-5

Models

  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    UNO-1372G-E3AE
    Atom QC 1.91GHz, 4GB DDR, iDoor, 3LAN, 2COM
    In stock
    Warranty:
    €1,164.00
    €1,431.72
    Login to check your price
    UNO-1372G-E3AE
    Atom QC 1.91GHz, 4GB DDR, iDoor, 3LAN, 2COM
    Availability:
    In stock
    Net price:
    €1,164.00

Description

The UNO-1372G is an Intel Atom Quad-Core DIN-Rail controller. This controller featured with dual power input that shorten the down time to enhance operation excellence. The general purpose input/output ports also help machine builders integrate direct control of start/stop inspection and indicate inspection results. The UNO-1372G is also equipped with Advantech iDoor technology that uses iDoor modules to extend this product to become a gateway controller, such as a PoE card, or isolation serial port card. The UNO-1372G also features 3 gigabyte LAN ports, 1 USB 3.0 port, 2 COM ports and HDMI& VGA display ports for essential upstream and downstream links, for example, PoE connected to IP camera from iDoor.

  • Intel® Atom E3845 1.91GHz processor with 4GB DDR3L Memory
  • 3 x GbE, 3 x USB, 2 x COM, 1 x VGA, 1 x HDMI, Audio, iDoor, mSATA, 2 x mPCIe, 1 x SATA, 4 x DI, 4 x DO, 1 x Power Terminal
  • Compact with Fanless Design
  • Dual Power Input for avoiding Power Down Time
  • Exchangeable RTC Battery with easy Access on the Top
  • Digital I/O with Isolation Protection for Sensing and controlling
  • Diverse system IO and Supports Fieldbus Protocol by iDoor Technology as a Protocol Gateway
  • Supports MRAM by iDoor Technology
  • LAN Redundancy (Teaming)

Technical Specification

UNO-1372G
Processor Intel Atom E3845 1.91GHz
RAM Built-in 4GB DDR3L (Up to 8GB)
VGA (DSub) 1
HDMI 1
Audio Line out
Gigabit Ethernet 3
2,5" HDD 1 (max. 9.5 mm)
Slot mSATA 1
Slot M.2 -
USB 3.0 1
USB 2.0 2
RS-232 1
RS-422/485 1
Slot miniPCIe 2x full-size
TPM -
Working temp. -20°C ~ +60°C
