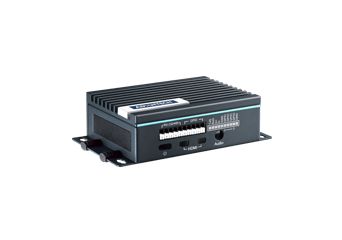

UNO-220
Industrial Raspberry Pi 4 HAT Gateway Kit
- Protect your Raspberry Pi device from dust and temperature extremes.
- Industrial-grade gateway kit provides Raspberry Pi-ready solutions for rapid prototyping.
- Designed for Raspberry Pi single-board computers - Develop unique IoT applications
- UNO-220 industrial-grade chassis transforms RPi 4 into a ruggedized gateway for shopfloor environment
- Industrial grade I/O board for RS-232/485 and GPIO extension
- Build IoT Applications with the UNO-220 Industrial Kit for Raspberry Pi 4
- Provide optimum protection for Raspberry Pi and 2 years warranty
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use onlyModels
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUNO-220-P4N1AERPi Gateway Kit with 1 RS232/485, 4 GPIO, 8G SDOut of stock Warranty: €115.00€141.45Login to check your price UNO-220-P4N1AERPi Gateway Kit with 1 RS232/485, 4 GPIO, 8G SDAvailability: Out of stockNet price:€115.00
Description
Featuring a system-image OS equipped micro SD card, an RPi 4 HAT I/O board, additional RS-232/485 GPIOs, and an RTC battery backup for precise time keeping; UNO-220 is designed for customers using Raspberry Pi 4 (RPi 4) single-board computers (SBCs) in IoT applications.
Technical Specification
|
General |
Certification |
CE, FCC |
||
|
Dimensions |
100 x 70 x 32 mm |
|||
|
Form Factor |
Micro |
|||
|
Enclosure |
Aluminum housing |
|||
|
Weight |
0.5 kg |
|||
|
Power Consumption |
15 W |
|||
|
OS Support |
AdvRaspbian |
|||
|
System Hardware |
Hardware Security |
TPM 2.0 (available upon request) |
||
|
Storage |
1 x Micro SD slot (dummy) (internal 8 GB SD card interchangeable with Raspberry Pi 4) |
|||
|
I/O Interfaces |
Serial Ports |
1 x RS232/485 (5-pin terminal block), automatic direction control, 300 ~ 115.2k bps |
||
|
GPIO |
GPI 0-3: VIH: 2 ~ 5V VIL: 0 ~ 0.8V GPO 0-3: 0 ~ 5V |
|||
|
Environment |
Operating Temperature |
0 - 50°C |
||
|
Storage Temperature |
20 ~ 60 °C |
|||
|
Relative Humidity |
10 ~ 95% RH @ 40 °C, non-condensing |
|||
|
Ingress Protection |
IP40 |
|||
Download
