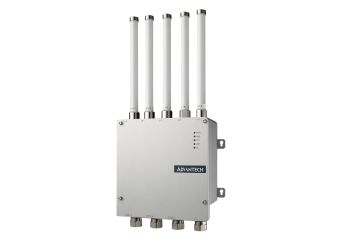

main product photo

UNO-430 EXP

Waterproof Data Gateway with IP66 Rating and Explosion Protection

Manufacturer: Advantech
Manufacturer: Advantech
  • Intel® Atom™ E3950 quad-core processor with 8GB of DDR3L memory
  • 2 x Gigabit Ethernet, 2 x RS-422/485 with isolation protection, 1 x RS-232 console port
  • IP66 rating for protection from water and dust ingress
  • Wide operating temperature range (-40 ~ 70 °C/-40 ~ 158 °F)
  • Built-in TPM 2.0 for hardware-based security
  • 1 x M.2 (E-key) and 1 x M.2 (B-key) expansion sockets for integrating CE-RED-compliant Wi-Fi, LTE, and GPS wireless communication modules
  • Enclosure with front door and cable gland design ensures easy installation and maintenance
  • C1D2, ATEX, and IECEx certification for explosion tolerance
Product out of stock

Free shipping from €300

Promocja cenowa na model HDR-15-5

UNO-430 EXP

UNO-430 EXP

Description

UNO-430 EXP features all-around IP66-rated ingress protection and cable gland I/O connectors to provide a truly water and dust proof solution. With C1D2, ATEX, and IECEx certification for explosion tolerance, UNO-430 EXP is ideal for applications that can withstand the most demanding applications.

Technical Specification

Environment
Ingress Protection  All -around IP66
Operating Temperature  -40-70°C (-40-158°F )
Relative Humidity  10-95%RH (non -condensing )
Shock Protection  50G ,half sine
Storage Temperature  -40-85°C (-40-185°F )
Vibration Protection  2Grms ,random
Hardware
CPU  Intel® ATOM E3950 1.6GHzQuad -Core
Graphics Engine  Intel® HD Graphics
Hardware Security  TPM 2.0
Memory  1x SO -DIMM with 8GB DDR3L 1600MHz
OS Support  Microsoft® Windows 102019LTSC ,Linux
Power Input  10-36VDC
Storage  1x M.2 B key
I /O Interface
Displays  1x DP
Expansion  1x M.2 B key ,1x M.2 E key
LAN Ports  2x 10/100/1000Mbps
Power Connector  1x 3-Pin Terminal Block
Serial Ports  2x RS -232/422/485,1x RS -232(Console )
USB Ports  2x Internal USB
Cable Gland  4x 1/2"NPT conduit explosive atmosphere cable gland
  (cable size OD 6.55-14mm /0.26-0.55in )
Mechanical
Dimension (W x H x D ) 200x 68x 200mm
Enclosure  Aluminum housing
Weight (Net ) 3.7kg
