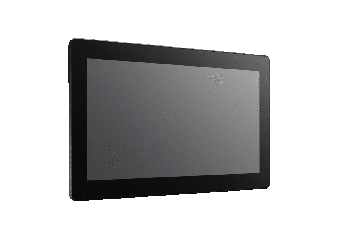

UTC-315H

15.6" All-in-One Touch Computer with Intel® Core™ i5-8365UE/Core™ i3-8145UE

Manufacturer: Advantech
Manufacturer: Advantech
  • Low power and fanless system design
  • Embedded Intel® Core™ i5-8365UE
  • Built-in 8 GB RAM
  • 15.6" monitor with 16:9 widescreen display
  • IP65-rated front panel for water and dust resistance
  • Supports both landscape and portrait screen orientations
  • VESA 75 mm standard mounting holes for varied mounting demands
  • Detachable frame design for panel mount applications
  • Support TPM 2.0
  • Power supply included
  • No disk and operating system included
Product out of stock

Free shipping from €300

See 1 model

Promocja cenowa na model HDR-15-5

Models

  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    UTC-315HP-ATB0E
    15.6" Pcap,i5-8365UE,FHD 220nits,8G,Black
    Out of stock Warranty:
    €1,902.00
    €2,339.46
    Login to check your price
    UTC-315HP-ATB0E
    15.6" Pcap,i5-8365UE,FHD 220nits,8G,Black
    Availability: Out of stock
    Net price:
    €1,902.00

Description

UTC-315H is the multi-purpose all-in-one computing system which equipped with wide format, touch based LCD panel. It is easy to integrate key peripherals and display systems for diversified self-service and interactive signage deploy in different application areas.

Technical Specification



UTC-315HR-ATW0E

UTC-315HR-ATB0E

UTC-315HP-ATW0E

System

CPU

Intel® Pentium® N4200 (Default) / Intel® Celeron® N3350 (Available)

RAM

1 x SO-DIMM DDR3L 1866 MHz up to 8GB

Storage

1 x 2.5 internal SATA HDD bay

Network (LAN)

2 x Gigabit Ethernet (RJ-45)

I/O

1 x COM (RS-232); 1 x COM (RS-232/422/485)

2 x USB 2.0; 4 x USB 3.0

1 x HDMI

1 x Line-out, 1 x Mic-in

2 x 2W Speaker

Expansion

M.2 2230/mSATA

OS support

OS support

WES 7P 32bit

WES 7E 32bit

Windows Pro Embedded 7

SP1 64bit

WE8S 64bit

Windows Embedded 8.1 Industry Pro 64bit

Win 10 IoT Enterprise 64bit

Linux

Android 6.0

Power Supply

Input Voltage

12 V/7 A (84W ITE Adapter)*Optional 12-30V

LCD

Resolution

1920 x 1080

Brightness (cd/m²)

250 cd/m² (optional 400 nits)

Touch Screen

Type

Analog Resistive 5-wires (Res. Flat Glass) / Projected Capacitive Touch Panel (Pcap. Flat Glass) / Glass Panel

Controller

USB interface

Environment

Operating Temperature

0 - 40°C

Relative Humidity

10 - 95% @ 40 °C (non-condensing)

Shock

10 G peak acceleration (11 msec. duration)

Vibration

0,5 G

Front Panel Protection

IP65/ NEMA4 Compliant
