ELMATIC ETA 1221-WT
Fanless DIR-rail BOX PC, Intel Atom x6413E, 8GB RAM, 128GB SSD, Windows 11 IoT
- 2x 2.5 GbE LAN
- 2x USB3.2, 2x USB2.0
- 2 x RS-232/422/485 (default RS-232)
- 1x HDMI, 1x DisplayPort
- 8-bit Programmable DIO
- No power supply by default (see accessories)
Price from €943.00 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
ELMATIC ETA 1221-WT
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddELMATIC ETA 1221-WTBoxPC, x6413E, 8GB, 128GB, DIN, Win11IoT, -40~60CIn stockWarranty: €943.00€1,159.89Login to check your price ELMATIC ETA 1221-WTBoxPC, x6413E, 8GB, 128GB, DIN, Win11IoT, -40~60CAvailability:In stockNet price:€943.00
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddFSP090-AAAN3Desktop PSU 90W, 24 VDC, 3,75AIn stockWarranty: €26.00€31.98Login to check your price FSP090-AAAN3Desktop PSU 90W, 24 VDC, 3,75AAvailability:In stockNet price:€26.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDIN rail power supply 100W 24V 4AIn stockWarranty: €31.70€38.99Login to check your price DIN rail power supply 100W 24V 4AAvailability:In stockNet price:€31.70
Description

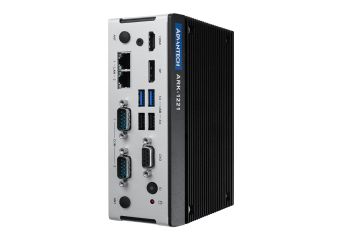

The ELMATIC ETA 1221-WT is a fanless Box PC designed for DIN rail mounting, equipped with an Intel Atom x6413E processor, 8 GB of RAM, and 128 GB of built-in SSD storage. The device offers two 2.5 GbE LAN ports, two USB 3.2 ports, two USB 2.0 ports, two RS-232/422/485 serial ports (RS-232 by default), one HDMI output, one DisplayPort output, and 8-bit programmable DIO. The operating temperature range is from -40°C to 60°C. Windows 11 IoT is included in the package.
Technical Specification
| Model | |||
| Model | ELMATIC ETA 1221-WT | ||
| CPU | |||
| CPU | Intel Atom x6413E | ||
| Memory | |||
| Memory | Built-in 8 GB SODDR4 | ||
| Storage | |||
| Slot 2,5" HDD | Built-in 128GB SSD | ||
| Slot mSATA | - | ||
| Expansions | |||
| Slot M.2 | 1 x M2. 2230 E key 1 x M.2 2280 B key with nano SIM holder * (* SIM holder and M.2 slot are hardware interfaces for wireless communication integration only. System level RF certification is not available) |
||
| Slot miniPCIe | 1 x Full-size | ||
| I/O | |||
| DisplayPort | 1 | ||
| HDMI | 1 | ||
| Audio | Mic in, Line out | ||
| Gigabit Ethernet | 2 x 2.5 GbE LAN | ||
| USB 3.2 | 2 | ||
| USB 2.0 | 2 | ||
| Serial Ports | 2 x RS-232/422/485 (default RS-232) | ||
| GPIO | 8-bit Programmable DIO | ||
| CANbus | - | ||
| Operating System | |||
| Operating System | Windows 11 IoT LTSC included | ||
| Environment | |||
| Working temperature | -40 ~ 60°C | ||
