AIG-302
Advanced IIoT gateways with ARM® Cortex™-A7 dual-core 1GHz processor, Azure IoT Edge software, -40 to 70°C operating temperature
- Supports generic MQTT client to facilitate MQTT connections via built-in device SDKs tailored for Azure cloud integration
- Supports Modbus RTU/ASCII/TCP client
- Supports Modbus TCP server
- Supports Azure IoT Edge
- Built-in network traffic monitoring and diagnostic tool for easy troubleshooting
- Provides robust OTA function to prevent system failure during software upgrades
- Equipped with secure boot to prevent malicious software-injection attacks
- -40 to 70°C operating temperature range
- LTE Cat. 4 US, EU, and APAC models available
Price from €987.00 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use onlyModels
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddAIG-302-T-AZU-LXAdvanced IIoT gateways with ARM Cortex-A7 dual-core 1GHz processor, Azure IoT Edge software, -40 to 85°C operating temperatureIn stockWarranty: €987.00€1,214.01Login to check your price AIG-302-T-AZU-LXAdvanced IIoT gateways with ARM Cortex-A7 dual-core 1GHz processor, Azure IoT Edge software, -40 to 85°C operating temperatureAvailability:In stockNet price:€987.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddAIG-302-T-EU-AZU-LXAdvanced IIoT gateways with ARM Cortex-A7 dual-core 1GHz processor, Azure IoT Edge software, -40 to 70°C operating temperature, Europe region LTE module preinstalledOut of stock Warranty: €1,458.00€1,793.34Login to check your price AIG-302-T-EU-AZU-LXAdvanced IIoT gateways with ARM Cortex-A7 dual-core 1GHz processor, Azure IoT Edge software, -40 to 70°C operating temperature, Europe region LTE module preinstalledAvailability: Out of stockNet price:€1,458.00
Description
Introduction
The AIG-302 Series advanced IIoT gateways connect Modbus RTU/ASCII/TCP devices to clouds such as Azure, and MQTT platform. The gateways support the Modbus TCP server mode, enabling simultaneous transmission of data to a cloud platform and local SCADA system.
Boost Edge Computing Capabilities With Azure IoT Edge
AIG-302 supports Azure IoT Edge to bring in a multitude of benefits, including edge computing capabilities, reduced bandwidth costs, flexibility and scalability, seamless integration with Azure services, and ease of management and updates. Specifically, with the AIG-302 processing data locally, it not only offers rapid response and low latency but also effectively reduces network bandwidth usage, thereby cutting costs. Additionally, the modular design of AIG-302 supporting Azure IoT Edge makes your system both flexible and easily expandable. At the same time, its seamless integration with Azure cloud services allows you to effortlessly extend cloud capabilities to edge devices.
Built-in Ready-to-use Data Preprocessing Functions, No Coding Required
Energy Management Systems mainly collect energy data such as average power generation and energy efficiency. This data is then used to display on-site conditions, observe the energy trend, and optimize energy usage. Most energy management systems require meaningful data so gateways at the field site require to preprocess the edge collected data in advanced. For some applications, they even require to do actions within a short period of time after preprocessing the collected data. AIG-302 series have built in the intuitive UI enables to handle the data easily.
Secure Remote Access Reduces Maintenance Costs
The AIG-302 comes with powerful troubleshooting tools to diagnose issues with protocol statuses and capture and analyze traffic packets, enabling engineers to remotely identify the root cause of issues and quickly bring the operation back to normal. Moreover, AIG-302 series provide secure remote access allowing maintenance engineers saving a lot of time and effort and reducing system downtime in energy management systems.
Security Dashboard Optimized for Detecting Security Issues
The security dashboard utilizes device scanning to identify potential cybersecurity threats from multiple angles, such as during account settings management, application networking, application resource usage monitoring, product certificates deployment, service settings modifications, and system status checks. Upon detecting threats, a mitigation plan is recommended to resolve issues.

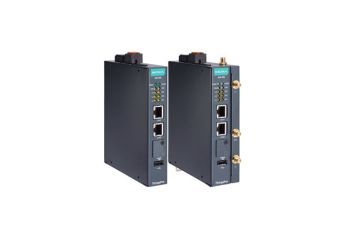

Appearance
AIG-302-T-AZU-LX
AIG-302 US, EU, AP, and CN Models
Technical Specification
Computer
| Processor | Dual-core 1 GHz Armv7 Cortex-A7 |
| DRAM | 2 GB DDR3L |
| Storage Installed | 32 GB eMMC |
| Pre-installed OS | Moxa Industrial Linux (Debian 11, kernel 5.10.x) |
| Number of Supported Tags | 3000 |
Interfaces
| TPM | TPM v2.0 |
| USB 2.0 | USB 2.0 hosts x 1, type-A connectors |
| Wi-Fi Antenna Connector | RP-SMA x 2 (excluding AIG-302-T-AZU-LX) |
| Cellular Antenna Connector | SMA x 2 (excluding AIG-302-T-AZU-LX) |
| GPS Antenna Connector | SMA x 1 (excluding AIG-302-T-AZU-LX) |
| Expansion Slots | mPCIe slots x 1 (excluding AIG-302-T-AZU-LX) |
| Buttons | Reset button, Reset to factory default |
| Digital Input | DIs x 4 |
| Digital Output | DOs x 4 |
| Number of SIMs | 2 |
| SIM Format | Nano (excluding AIG-302-T-AZU-LX) |
Ethernet Interfaces
| Opto-isolation | 1.5 kV (built-in) |
| 10/100/1000BaseT(X) Ports (RJ45 connector) | 2 |
Ethernet Interface
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| 10/100/1000BaseT(X) Ports (RJ45 connector) | 2 |
Serial Interface
| Console Port | 1 x 4-pin header |
| Number of Ports | 2 |
| Connector | DB9 male |
| Baudrate | 300 bps to 921.6 kbps |
| Data Bits | 7, 8 |
| Flow Control | ADDC (automatic data direction control) for RS-485, RTS/CTS, XON/XOFF |
| Parity | None, Even, Odd, Space, Mark |
| Stop Bits | 1, 2 |
Serial Signals
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
Serial Software Features
| Industrial Protocols | Modbus RTU/ASCII Master |
CAN Interface
| Number of Ports | 1 |
| Connector | DB9 male |
| Baudrate | 10 to 1000 kbps |
| Industrial Protocols | CAN 2.0A, CAN 2.0B |
| Signals | CAN_H, CAN_L, CAN_GND, CAN_SHLD, CAN_V+, GND |
| Isolation | 2 kV (built-in) |
Digital Inputs
| Connector | Spring-type Euroblock terminal |
| Sensor Type | Wet contact (NPN), Dry contact |
| Dry Contact | Off: open, On: short to GND |
| Wet Contact (DI to COM) | On: 10 to 30 VDC, Off: 0 to 3 VDC |
| Isolation | 3 kV DC |
Digital Outputs
| Connector | Spring-type Euroblock terminal |
| Current Rating | 200 mA per channel |
| IO Type | Sink |
| Voltage | 24 VDC, nominal, open collector to 30 VDC |
Cellular Interface
| Cellular Standards | LTE Cat. 4 |
| Band Options (US) | LTE Band 2 (1900 MHz) / LTE Band 4 (1700 MHz) / LTE Band 5 (850 MHz) / LTE Band 12 (700 MHz) / LTE Band 13 (700 MHz) / LTE Band 14 (700 MHz) / LTE Band 17 (700 MHz) / LTE Band 25 (1900 MHz) / LTE Band 26 (850 MHz) / LTE Band 66 (1700 MHz) / LTE Band 71 (600 MHz) UMTS/HSPA 850 MHz / 1900 MHz Carrier Approval: Verizon, AT&T |
| Band Options (EU) | LTE Band 1 (2100 MHz) / LTE Band 3 (1800 MHz) / LTE Band 7 (2600 MHz) / LTE Band 8 (900 MHz) / LTE Band 20 (800 MHz) / LTE Band 28 (700 MHz) / LTE Band 38 (2600 MHz) / LTE Band 40 (2300 MHz) / LTE Band 41 (2500 MHz) UMTS/HSPA 900 MHz / 2100 MHz |
| Band Options (APAC) | LTE Band 1 (2100 MHz) / LTE Band 3 (1800 MHz) / LTE Band 5 (850 MHz) / LTE Band 8 (900 MHz) / LTE Band 9 (1700 MHz) / LTE Band 18 (850 MHz) / LTE Band 19 (850 MHz) / LTE Band 21 (1500 MHz) / LTE Band 28 (700 MHz) / LTE Band 38 (2600 MHz) / LTE Band 39 (1900 MHz) / LTE Band 40 (2300 MHz) / LTE Band 41 (2500 MHz) UMTS/HSPA 850 MHz / 900 MHz / 2100 MHz |
GPS Interface
| Receiver Types | GPS/GLONASS/BeiDou/Galileo/QZSS |
| Accuracy | 2.0 m |
| Acquisition | -147 dBm |
| Sensitivity | Cold starts: -145 dBm, Tracking: -160 dBm |
LED Indicators
| System | Power x 2, User x 1, SIM card indicator x 1 |
| LAN | 2 per port (10/100/1000 Mbps) |
| Wireless Signal Strength | Cellular/Wi-Fi x 6 |
Azure IoT Edge
| Versions Supported | v1.4.20 |
| Authentication Methods | Manual / Connection String, DPS / Symmetric Encryption, DPS / X.509 Certificate, DPS / TPM |
| Azure Direct Methods | Reboot, Software Upgrade, Remote API Invocation |
| Azure Module Twin | Device Configuration |
| Moxa Functions | Custom Payload, Message Group |
Generic MQTT Client
| Versions Supported | v3.1.1, v3.1 |
| QoS Levels | 0, 1, 2 |
| Authentication Methods | Username and password |
| Secure Transmission | TLS 1.0, TLS 1.1, TLS 1.2 |
| Native Capabilities | Keep Alive, Retain Message, Clean Session, Will and Testament |
| Moxa Functions | Store and Forward, Custom Payload, Remote API Invocation |
Azure IoT Device
| Connection Protocols Supported | MQTT, MQTT over WebSockets, AMQP, AMQP over WebSockets |
| Authentication Methods | Symmetric Key, X.509 Certificate |
| Azure Direct Methods | Reboot, Software Upgrade, Remote API Invocation |
AWS IoT Core
| QoS Levels | 0, 1 |
| Authentication Methods | X.509 Certificate, Private Key, Trusted Root CA |
| Native Capabilities | Keep Alive |
| Moxa Functions | Store and Forward, Custom Payload |
| Commands Invokable Via Jobs | Reboot, Software Upgrade, Remote API Invocation |
Modbus RTU/ASCII
| Mode | Client |
| Functions Supported | 1, 2, 3, 4, 5, 6, 15, 16, 23 |
| Max. No. of Commands | 256 per port |
| Max. No. of Connected Devices | 62 |
Modbus TCP
| Mode | Client/Server |
| Functions Supported | 1, 2, 3, 4, 5, 6, 15, 16, 23 |
| Max. No. of Server Connections | 64 |
| Max. No. of Client Connections | 4 |
| Max. No. of Commands | 3000 |
Power Parameters
| No. of Power Inputs | Redundant dual inputs |
| Input Voltage | 12 to 48 VDC |
| Power Connector | 4-pin terminal block |
| Power Consumption | 12 W |
| Input Current | 1 A @ 12 VDC |
Reliability
| Automatic Reboot Trigger | External WDT (watchdog timer) |
Physical Characteristics
| Housing | Metal, SECC |
| Installation | DIN-rail mounting, Wall mounting (with optional kit) |
| IP Rating | IP30 |
| Weight | AIG-302-T-AZU-LX: 560 g (1.23 lb), All other models: 750 g (1.65 lb) |
| Dimensions | AIG-302-T-AZU-LX: 141.5 x 120 x 27 mm (5.7 x 4.72 x 1.06 in), All other models: 141.5 x 120 x 39 mm (5.7 x 4.72 x 1.54 in) |
Environmental Limits
| Operating Temperature | AIG-302-T-AZU-LX: -40 to 85°C (-40 to 185°F), All other models: -40 to 70°C (-40 to 158°F) |
| Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Shock | IEC 60068-2-27 |
| Vibration | 2 Grms @ IEC 60068-2-64, random wave, 5 to 500 Hz, 1 hr per axis (without USB devices attached) |
Standards and Certifications
| EMC | EN 55032/35, EN 61000-6-2/6-4 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact 4 kV; Air 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF |
| Safety | UL 62368-1, EN 62368-1 |
| Radio | NCC, KC, RCM |
| Carrier Approvals | AT&T, Verizon, PTCRB |
| RED | EN 301 489-1/19/52, EN 301 908-1, EN 303 413, EN 62311 |
| Green Product | RoHS, CRoHS, WEEE |
| Hazardous Locations | Class I Division 2, ATEX |
MTBF
| Time | AIG-302-T-AZU-LX: 1,772,745, All other models: 1,403,998 |
| Standards | Telcordia (Bellcore) Standard TR/SR |
Warranty
| Warranty Period | 5 years |
| Details | See www.moxa.com/warranty |
