BXP-C100
Box computers with Tiger Lake 11th Gen Intel® Core™ processor base model and high-interface models
- Box-type computer with fanless design
- 11th Gen Intel® Celeron® or Intel® Core® processor
- Rich interface options for up to 10 serial and 10 LAN ports
- Compact size to fit most field applications
- -30 to 60°C operating temperature range
Price from €1,175.00 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use onlyModels
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddBXP-C100-C1-TBox type, Celeron 6305E, 8GB DDR4, COMx2, LANx2, USBx6, DIOx4, VGA+HDMI, 12/24 VDCOut of stock Warranty: €1,175.00€1,445.25Login to check your price BXP-C100-C1-TBox type, Celeron 6305E, 8GB DDR4, COMx2, LANx2, USBx6, DIOx4, VGA+HDMI, 12/24 VDCAvailability: Out of stockNet price:€1,175.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddBXP-C100-C1-8L-TBox type, Celeron 6305E, 8GB DDR4, COMx2, LANx10, USBx6, DIOx4, VGA+HDMI, 12/24 VDCOut of stock Warranty: €1,506.00€1,852.38Login to check your price BXP-C100-C1-8L-TBox type, Celeron 6305E, 8GB DDR4, COMx2, LANx10, USBx6, DIOx4, VGA+HDMI, 12/24 VDCAvailability: Out of stockNet price:€1,506.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddBXP-C100-C1-8C-TBox type, Celeron 6305E, 8GB DDR4, COMx10, LANx2, USBx6, DIOx4, VGA+HDMI, 12/24 VDCOut of stock Warranty: €1,317.00€1,619.91Login to check your price BXP-C100-C1-8C-TBox type, Celeron 6305E, 8GB DDR4, COMx10, LANx2, USBx6, DIOx4, VGA+HDMI, 12/24 VDCAvailability: Out of stockNet price:€1,317.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddBXP-C100-C1-2L3C-TBox type, Celeron 6305E, 8GB DDR4, COMx5, LANx4, USBx6, DIOx4, VGA+HDMI, 12/24 VDCOut of stock Warranty: €1,333.00€1,639.59Login to check your price BXP-C100-C1-2L3C-TBox type, Celeron 6305E, 8GB DDR4, COMx5, LANx4, USBx6, DIOx4, VGA+HDMI, 12/24 VDCAvailability: Out of stockNet price:€1,333.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddBXP-C100-C5-TBox type, Core i5-1145G7E, 8GB DDR4, COMx2, LANx2, USBx6, DIOx4, VGA+HDMI, 12/24 VDCIn stockWarranty: €1,758.00€2,162.34Login to check your price BXP-C100-C5-TBox type, Core i5-1145G7E, 8GB DDR4, COMx2, LANx2, USBx6, DIOx4, VGA+HDMI, 12/24 VDCAvailability:In stockNet price:€1,758.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddBXP-C100-C5-8L-TBox type, Core i5-1145G7E, 8GB DDR4, COMx2, LANx10, USBx6, DIOx4, VGA+HDMI, 12/24 VDCOut of stock Warranty: €2,168.00€2,666.64Login to check your price BXP-C100-C5-8L-TBox type, Core i5-1145G7E, 8GB DDR4, COMx2, LANx10, USBx6, DIOx4, VGA+HDMI, 12/24 VDCAvailability: Out of stockNet price:€2,168.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddBXP-C100-C5-8C-TBox type, Core i5-1145G7E, 8GB DDR4, COMx10, LANx2, USBx6, DIOx4, VGA+HDMI, 12/24 VDCOut of stock Warranty: €1,995.00€2,453.85Login to check your price BXP-C100-C5-8C-TBox type, Core i5-1145G7E, 8GB DDR4, COMx10, LANx2, USBx6, DIOx4, VGA+HDMI, 12/24 VDCAvailability: Out of stockNet price:€1,995.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddBXP-C100-C5-2L3C-TBox type, Core i5-1145G7E, 8GB DDR4, COMx5, LANx4, USBx6, DIOx4, VGA+HDMI, 12/24 VDCOut of stock Warranty: €1,979.00€2,434.17Login to check your price BXP-C100-C5-2L3C-TBox type, Core i5-1145G7E, 8GB DDR4, COMx5, LANx4, USBx6, DIOx4, VGA+HDMI, 12/24 VDCAvailability: Out of stockNet price:€1,979.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddBXP-C100-C7-TBox type, Core i7-1185G7E, 8GB DDR4, COMx2, LANx2, USBx6, DIOx4, VGA+HDMI, 12/24 VDCOut of stock Warranty: €2,026.00€2,491.98Login to check your price BXP-C100-C7-TBox type, Core i7-1185G7E, 8GB DDR4, COMx2, LANx2, USBx6, DIOx4, VGA+HDMI, 12/24 VDCAvailability: Out of stockNet price:€2,026.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddBXP-C100-C7-8L-TBox type, Core i7-1185G7E, 8GB DDR4, COMx2, LANx10, USBx6, DIOx4, VGA+HDMI, 12/24 VDCOut of stock Warranty: €2,373.00€2,918.79Login to check your price BXP-C100-C7-8L-TBox type, Core i7-1185G7E, 8GB DDR4, COMx2, LANx10, USBx6, DIOx4, VGA+HDMI, 12/24 VDCAvailability: Out of stockNet price:€2,373.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddBXP-C100-C7-8C-TBox type, Core i7-1185G7E, 8GB DDR4, COMx10, LANx2, USBx6, DIOx4, VGA+HDMI, 12/24 VDCOut of stock Warranty: €2,153.00€2,648.19Login to check your price BXP-C100-C7-8C-TBox type, Core i7-1185G7E, 8GB DDR4, COMx10, LANx2, USBx6, DIOx4, VGA+HDMI, 12/24 VDCAvailability: Out of stockNet price:€2,153.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddBXP-C100-C7-2L3C-TBox type, Core i7-1185G7E, 8GB DDR4, COMx5, LANx4, USBx6, DIOx4, VGA+HDMI, 12/24 VDCOut of stock Warranty: €2,168.00€2,666.64Login to check your price BXP-C100-C7-2L3C-TBox type, Core i7-1185G7E, 8GB DDR4, COMx5, LANx4, USBx6, DIOx4, VGA+HDMI, 12/24 VDCAvailability: Out of stockNet price:€2,168.00
Description
Introduction

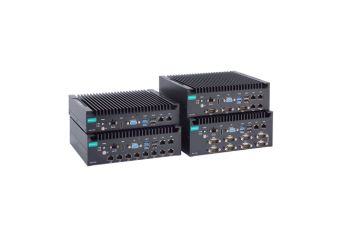

The BXP-C100 wall-mount computers are powered by a 11th Gen Intel® Celeron® or Intel® Core™i5, or i7 processor. The computers come with a rich set of interface options including up to 10 software-selectable RS-232/422/485 serial ports, up to 10 gigabit Ethernet ports, 4 digital inputs, and 4 digital outputs. The communication interfaces are located on the front and rear sides of the product, enabling easy access and expansion for industrial applications. A dual-storage design that includes CFast and SD slots enables easy storage expansion. The unique battery fastener cover design for the battery slot secures the battery in place and ensures stability in all operating environments.
The BXP-C100 compact wall-mountable computers come in a fanless design and can withstand a temperature range of -30 to 60°C, making them a good fit for harsh operating environments. The built-in TPM 2.0 module secures the platform from unauthorized access. The BXP-C100 Series is an intelligent computing solution that fulfills both OT and IT requirements in industrial environments.
Appearance
Front View
BXP-C100-C1-T/C5-T/C7-T/C1-T-Win10/C5-T-Win10/C7-T-Win10 Modeles
BXP-C100-C1-8L-T/C5-8L-T/C7-8L-T Modeles
BXP-C100-C1-8C-T/C5-8C-T/C7-8C-T Modeles
BXP-C100-C1-2L3C-T/C5-2L3C-T/C7-2L3C-T Modeles
Rear View
BXP-C100-C1-T/C5-T/C7-T/C1-T-Win10/C5-T-Win10/C7-T-Win10 Modeles
BXP-C100-C1-8L-T/C5-8L-T/C7-8L-T Modeles
BXP-C100-C1-8C-T/C5-8C-T/C7-8C-T Modeles
BXP-C100-C1-2L3C-T/C5-2L3C-T/C7-2L3C-T Modeles
Technical Specification
- Computer
| CPU | BXP-C100-C1 Models: Intel® Celeron® 6305E processor (Dual core, 4M cache, 1.80 GHz) BXP-C100-C5 Models: Intel® Core™ i5-1145G7E processor (Quad core, 8M cache, 2.60 GHz, Base:1.50 GHz)BXP-C100-C7 Models: Intel® Core™ i7-1185G7E processor (Quad core, 12M cache, 2.80 GHz, Base:1.80 GHz) |
| System Memory Slot | SODIMM DDR4 slots x 1, up to 32 GB max. |
| System Memory Pre-installed | 8 GB DDR4 |
| Storage Slot | CFast slot x 1 (SATAIII interface) SD slots x 1, SD 3.0 interface (SDHC/SDXC) |
| Storage Pre-installed | BXP-C100-C1-T-Win10/C5-T-Win10/C7-T-Win10: 64 GB CFast card |
| Supported OS | Windows Images and Drivers Supported: - Windows 10 IoT Enterprise LTSC 2021 64-bit - Windows 11 Professional 64-bit Linux Drivers Supported: - Debian 11 (kernel 5.10) - Ubuntu 22.04 LTS (kernel 5.15) - RHEL 9 (kernel 5.14) |
| Graphics Controller | Intel® UHD Graphics |
- Computer Interface
| Ethernet Ports | BXP-C100-C1-8L-T/C5-8L-T/C7-8L-T: Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 10 BXP-C100-C1-2L3C-T/C5-2L3C-T/C7-2L3C-T: Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 4 All Other Models: Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2 |
| Serial Ports | BXP-C100-C1-8C-T/C5-8C-T/C7-8C-T: RS-232/422/485 ports x 10, software selectable (DB9 male) x 10 BXP-C100-C1-2L3C-T/C5-2L3C-T/C7-2L3C-T: RS-232/422/485 ports x 5, software selectable (DB9 male) x 5 All Other Models: RS-232/422/485 ports x 2, software selectable (DB9 male) x 2 |
| USB 3.0 | USB 3.0 hosts x 2, type-A connectors |
| USB 2.0 | USB 2.0 hosts x 4, type-A connectors |
| Digital Input | DIs x 4 |
| Digital Output | DOs x 4 |
| TPM | TPM v2.0 |
| Video Output | HDMI 2.0b x 1, (type-A connector)VGA x 1, 15-pin D-sub connector (female) |
| Buttons | Reset button, Power button |
- Ethernet Interface
| Magnetic Isolation Protection | 1.5 kV (built-in) |
- Serial Interface
| Baudrate | 50 bps to 115.2 kbps |
| Connector | DB9 male |
| Data Bits | 5, 6, 7, 8 |
| Parity | None, Even, Odd, Space, Mark |
| Stop Bits | 1, 1.5, 2 |
| Flow Control | RTS/CTS, XON/XOFF |
- Serial Signals
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
- Digital Inputs
| Connector | Spring-type Euroblock terminal |
| Sensor Type | Dry contact |
| Dry Contact | Logic 0: Short to GND Logic 1: Open |
- Digital Outputs
| Connector | Spring-type Euroblock terminal |
| I/O Type | Sink |
| Current Rating | 200 mA per channel |
| Voltage | 0 to 24 VDC |
- LED Indicators
| System | Power x 1 Storage x 1 |
| LAN | 2 per port (10/100/1000 Mbps) |
- Power Parameters
| Input Voltage | 12/24 VDC |
| Power Connector | Screw-fastened Euroblock terminal |
| Power Consumption | 90 W |
- Physical Characteristics
| Housing | Metal |
| IP Rating | IP20 |
| Dimensions | BXP-C100-C1-T/C5-T/C7-T/C1-T-Win10/C5-T-Win10/C7-T-Win10: 210 x 166 x 48 mm (8.27 x 6.54 x 1.9 in) BXP-C100-C1-8L-T/C5-8L-T/C7-8L-T/C1-2L3C-T/C5-2L3C-T/C7-2L3C-T: 210 x 166 x 65.5 mm (8.27 x 6.54 x 2.58 in) BXP-C100-C1-8C-T/C5-8C-T/C7-8C-T: 210 x 166 x 83 mm (8.27 x 6.54 x 3.27 in) |
| Weight | BXP-C100-C1-T/C5-T/C7-T/C1-T-Win10/C5-T-Win10/C7-T-Win10: 2,015 g (4.44 Ib) BXP-C100-C1-8L-T/C5-8L-T/C7-8L-T: 2,355 g (5.19 Ib) BXP-C100-C1-2L3C-T/C5-2L3C-T/C7-2L3C-T: 2,208 g (4.86 Ib) BXP-C100-C1-8C-T/C5-8C-T/C7-8C-T:2,385 g (5.25 Ib) |
| Installation | Wall mounting (with optional kit) |
- Environmental Limits
| Operating Temperature | -30 to 60°C (-22 to 140°F) |
| Storage Temperature | -40 to 75°C (-40 to 167°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
- Standards and Certifications
| EMC | EN 55032/35 |
| EMI | CISPR 32, FCC Part 15B Class A BSMI |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 0.5 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 0.5 kV, Signal: 1 kV IEC 61000-4-6 CS: 3 V IEC 61000-4-8 PFMF: 1 A/m at 50 to 60 Hz |
| Safety | UL 62368-1 (CB) BSMI |
| Shock | IEC 60068-2-27 |
| Vibration | IEC 60068-2-64 |
| Package Drop Test | ISTA 1A |
| Package Vibration Test | ISTA 1A |
- Declaration
| Green Product | RoHS, CRoHS, WEEE |
- Reliability
| Time Source | Built-in RTC (real-time clock) with lithium-battery backup |
| Automatic Reboot Trigger | Built-in WDT |
- MTBF
| Time | 490,983 hrs |
| Standards | Telcordia (Bellcore), GB |
- Warranty
| Warranty Period | 3 years |
| Details | See www.moxa.com/warranty |
