- PCI Express 1.0 compliant
- 921.6 kbps maximum baudrate for fast data transmission
- 128-byte FIFO and on-chip H/W, S/W flow control
- Low-profile form factor fits small-sized PCs
- Drivers provided for a broad selection of operating systems, including Windows, Linux, and UNIX
- Easy maintenance with built-in LEDs and management software
High price? Log in and buy cheaper
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCP-104EL-A/DB9M4 Port PCIe Board, w/ DB9M Cable, RS-232, Low ProfileIn stockWarranty: €192.00€236.16Login to check your price CP-104EL-A/DB9M4 Port PCIe Board, w/ DB9M Cable, RS-232, Low ProfileAvailability:In stockNet price:€192.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCP-104EL-A w/o Cable4 Port PCIe Board, w/o Cable, RS-232, Low ProfileOut of stock Warranty: €183.00€225.09Login to check your price CP-104EL-A w/o Cable4 Port PCIe Board, w/o Cable, RS-232, Low ProfileAvailability: Out of stockNet price:€183.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCP-104EL-A/DB25M4 Port PCIe Board, w/ DB25M Cable, RS-232, Low ProfileOut of stock Warranty: €192.00€236.16Login to check your price CP-104EL-A/DB25M4 Port PCIe Board, w/ DB25M Cable, RS-232, Low ProfileAvailability: Out of stockNet price:€192.00
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCBL-M44M25x4-50Cable/CBL-M44M25x4-50Out of stock Warranty: €21.00€25.83Login to check your price CBL-M44M25x4-50Cable/CBL-M44M25x4-50Availability: Out of stockNet price:€21.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCBL-M44M9x4-50Cable/CBL-M44M9x4-50In stockWarranty: €18.00€22.14Login to check your price CBL-M44M9x4-50Cable/CBL-M44M9x4-50Availability:In stockNet price:€18.00
Description

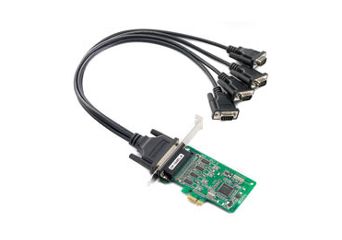

The CP-104EL-A is a smart, 4-port PCI Express board designed for POS and ATM applications. It is a top choice of industrial automation engineers and system integrators, and supports many different operating systems, including Windows, Linux, and even UNIX. In addition, each of the board’s 4 RS-232 serial ports supports a fast 921.6 kbps baudrate. The CP-104EL-A provides full modem control signals to ensure compatibility with a wide range of serial peripherals, and its PCI Express x1 classification allows it to be installed in any PCI Express slot.
Smaller Form Factor
The CP-104EL-A is a low-profile board that is compatible with any PCI Express slot. The board requires only a 3.3 VDC power supply, which means that the board fits any host computer, ranging from shoebox to standard-sized PCs.
Drivers Provided for Windows, Linux, and UNIX
Moxa continues to support a wide variety of operating systems, and the CP-104EL-A board is no exception. Reliable Windows and Linux/UNIX drivers are provided for all Moxa boards, and other operating systems, such as WEPOS, are also supported for embedded integration.
Technical Specification
- Serial Interface
| Comm. Controller | 16C550C compatible |
| Bus | PCI Express 1.0 |
| Connector | DB44 female |
| FIFO | 128 bytes |
| Max. No. of Boards per PC | 8 |
| No. of Ports | 4 |
| Serial Standards | RS-232 |
| Baudrate | 50 bps to 921.6 kbps (supports non-standard baudrates) |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | None, RTS/CTS, XON/XOFF |
- Serial Signals
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
- Serial Software Features
| Linux Drivers | Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x, Linux kernel 4.x, Linux kernel 5.x |
| Windows Drivers | DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| UNIX Drivers | QNX 6, Solaris 10, UnixWare 7, SCO OpenServer 5, SCO OpenServer 6 |
- Power Parameters
| Input Current | 805 mA @ 3.3 VDC |
- Physical Characteristics
| Dimensions | 67.21 x 103 mm (2.65 x 4.06 in) |
- LED Interface
| LED Indicators | Built-in Tx, Rx LEDs for each port |
- Environmental Limits
| Operating Temperature | 0 to 55°C (32 to 131°F) |
| Storage Temperature (package included) | -20 to 85°C (-4 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
- Standards and Certifications
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class B |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF |
- Declaration
| Green Product | RoHS, CRoHS, WEEE |
- MTBF
| Time | 3,601,447 hrs |
| Standards | Telcordia (Bellcore) Standard TR/SR |
