DRP-C100

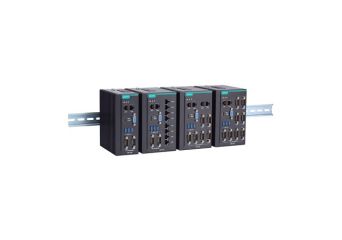

DIN-rail computers with Tiger Lake 11th Gen Intel® Core™ processor base model and high-interface models
Manufacturer: MOXA
Manufacturer: MOXA
- DIN-rail mountable computers with fanless design
- Intel® Celeron® or Intel® Core™ i5, or i7 processor
- Rich interface options for up to 8 serial and 10 LAN ports
- Compact size to fit most field applications
- -30 to 60°C operating temperature range
Price from €1,588.00 Net price
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDRP-C100-C1-TDIN-rail type, Celeron 6305E, 8GB DDR4, COMx2, LANx2, USB 3.0x3, VGA+HDMI, 12/24 VDCOut of stock Warranty: €1,588.00€1,953.24Login to check your price DRP-C100-C1-TDIN-rail type, Celeron 6305E, 8GB DDR4, COMx2, LANx2, USB 3.0x3, VGA+HDMI, 12/24 VDCAvailability: Out of stockNet price:€1,588.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDRP-C100-C1-T-Win10DIN-rail type, Celeron 6305E, 8GB DDR4, COMx2, LANx2, USB 3.0x3, VGA+HDMI, 12/24 VDC, 64GB CFAST, Win10Out of stock Warranty: €2,253.00€2,771.19Login to check your price DRP-C100-C1-T-Win10DIN-rail type, Celeron 6305E, 8GB DDR4, COMx2, LANx2, USB 3.0x3, VGA+HDMI, 12/24 VDC, 64GB CFAST, Win10Availability: Out of stockNet price:€2,253.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDRP-C100-C1-8L-TDIN-rail type, Celeron 6305E, 8GB DDR4, COMx2, LANx10, USB 3.0x3, VGA+HDMI, 12/24 VDCOut of stock Warranty: €2,309.00€2,840.07Login to check your price DRP-C100-C1-8L-TDIN-rail type, Celeron 6305E, 8GB DDR4, COMx2, LANx10, USB 3.0x3, VGA+HDMI, 12/24 VDCAvailability: Out of stockNet price:€2,309.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDRP-C100-C1-6C-TDIN-rail type, Celeron 6305E, 8GB DDR4, COMx8, LANx2, USB 3.0x3, VGA+HDMI, 12/24 VDCOut of stock Warranty: €2,016.00€2,479.68Login to check your price DRP-C100-C1-6C-TDIN-rail type, Celeron 6305E, 8GB DDR4, COMx8, LANx2, USB 3.0x3, VGA+HDMI, 12/24 VDCAvailability: Out of stockNet price:€2,016.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDRP-C100-C1-2L4C-TDIN-rail type, Celeron 6305E, 8GB DDR4, COMx6, LANx4, USB 3.0x3, VGA+HDMI, 12/24 VDCOut of stock Warranty: €2,106.00€2,590.38Login to check your price DRP-C100-C1-2L4C-TDIN-rail type, Celeron 6305E, 8GB DDR4, COMx6, LANx4, USB 3.0x3, VGA+HDMI, 12/24 VDCAvailability: Out of stockNet price:€2,106.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDRP-C100-C5-TDIN-rail type, Core i5-1145G7E, 8GB DDR4, COMx2, LANx2, USB 3.0x3, VGA+HDMI, 12/24 VDCOut of stock Warranty: €2,512.00€3,089.76Login to check your price DRP-C100-C5-TDIN-rail type, Core i5-1145G7E, 8GB DDR4, COMx2, LANx2, USB 3.0x3, VGA+HDMI, 12/24 VDCAvailability: Out of stockNet price:€2,512.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDRP-C100-C5-T-Win10DIN-rail type, Core i5-1145G7E, 8GB DDR4, COMx2, LANx2, USB 3.0x3, VGA+HDMI, 12/24 VDC, 64GB CFAST, Win10Out of stock Warranty: €3,232.00€3,975.36Login to check your price DRP-C100-C5-T-Win10DIN-rail type, Core i5-1145G7E, 8GB DDR4, COMx2, LANx2, USB 3.0x3, VGA+HDMI, 12/24 VDC, 64GB CFAST, Win10Availability: Out of stockNet price:€3,232.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDRP-C100-C5-8L-TDIN-rail type, Core i5-1145G7E, 8GB DDR4, COMx2, LANx10, USB 3.0x3, VGA+HDMI, 12/24 VDCOut of stock Warranty: €3,165.00€3,892.95Login to check your price DRP-C100-C5-8L-TDIN-rail type, Core i5-1145G7E, 8GB DDR4, COMx2, LANx10, USB 3.0x3, VGA+HDMI, 12/24 VDCAvailability: Out of stockNet price:€3,165.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDRP-C100-C5-6C-TDIN-rail type, Core i5-1145G7E, 8GB DDR4, COMx8, LANx2, USB 3.0x3, VGA+HDMI, 12/24 VDCOut of stock Warranty: €2,928.00€3,601.44Login to check your price DRP-C100-C5-6C-TDIN-rail type, Core i5-1145G7E, 8GB DDR4, COMx8, LANx2, USB 3.0x3, VGA+HDMI, 12/24 VDCAvailability: Out of stockNet price:€2,928.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDRP-C100-C5-2L4C-TDIN-rail type, Core i5-1145G7E, 8GB DDR4, COMx6, LANx4, USB 3.0x3, VGA+HDMI, 12/24 VDCOut of stock Warranty: €3,075.00€3,782.25Login to check your price DRP-C100-C5-2L4C-TDIN-rail type, Core i5-1145G7E, 8GB DDR4, COMx6, LANx4, USB 3.0x3, VGA+HDMI, 12/24 VDCAvailability: Out of stockNet price:€3,075.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDRP-C100-C7-TDIN-rail type, Core i7-1185G7E, 8GB DDR4, COMx2, LANx2, USB 3.0x3, VGA+HDMI, 12/24 VDCOut of stock Warranty: €3,131.00€3,851.13Login to check your price DRP-C100-C7-TDIN-rail type, Core i7-1185G7E, 8GB DDR4, COMx2, LANx2, USB 3.0x3, VGA+HDMI, 12/24 VDCAvailability: Out of stockNet price:€3,131.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDRP-C100-C7-T-Win10DIN-rail type, Core i7-1185G7E, 8GB DDR4, COMx2, LANx2, USB 3.0x3, VGA+HDMI, 12/24 VDC, 64GB CFAST, Win10Out of stock Warranty: €3,987.00€4,904.01Login to check your price DRP-C100-C7-T-Win10DIN-rail type, Core i7-1185G7E, 8GB DDR4, COMx2, LANx2, USB 3.0x3, VGA+HDMI, 12/24 VDC, 64GB CFAST, Win10Availability: Out of stockNet price:€3,987.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDRP-C100-C7-8L-TDIN-rail type, Core i7-1185G7E, 8GB DDR4, COMx2, LANx10, USB 3.0x3, VGA+HDMI, 12/24 VDCOut of stock Warranty: €3,807.00€4,682.61Login to check your price DRP-C100-C7-8L-TDIN-rail type, Core i7-1185G7E, 8GB DDR4, COMx2, LANx10, USB 3.0x3, VGA+HDMI, 12/24 VDCAvailability: Out of stockNet price:€3,807.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDRP-C100-C7-6C-TDIN-rail type, Core i7-1185G7E, 8GB DDR4, COMx8, LANx2, USB 3.0x3, VGA+HDMI, 12/24 VDCOut of stock Warranty: €3,424.00€4,211.52Login to check your price DRP-C100-C7-6C-TDIN-rail type, Core i7-1185G7E, 8GB DDR4, COMx8, LANx2, USB 3.0x3, VGA+HDMI, 12/24 VDCAvailability: Out of stockNet price:€3,424.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDRP-C100-C7-2L4C-TDIN-rail type, Core i7-1185G7E, 8GB DDR4, COMx6, LANx4, USB 3.0x3, VGA+HDMI, 12/24 VDCOut of stock Warranty: €3,593.00€4,419.39Login to check your price DRP-C100-C7-2L4C-TDIN-rail type, Core i7-1185G7E, 8GB DDR4, COMx6, LANx4, USB 3.0x3, VGA+HDMI, 12/24 VDCAvailability: Out of stockNet price:€3,593.00
Description
Introduction
DRP-C100 Komputery z serii montowane na szynie DIN są wyposażone w procesor Intel® Celeron®, lub procesor Intel® Core™ i5 lub i7. Komputery są bogate zestaw opcji interfejsu obejmujący do 8 wybieranych programowo RS-232/422/485 porty szeregowe i do 10 portów Gigabit Ethernet. Komunikacja interfejsy znajdują się z przodu i z tyłu produktu, umożliwiając łatwy dostęp i rozbudowę do zastosowań przemysłowych. A Konstrukcja z dwiema pamięciami, obejmująca gniazda CFast i SD, umożliwia łatwe rozbudowa pamięci masowej. Unikalna osłona mocowania akumulatora zabezpiecza akumulator na miejscu i zapewnia stabilność we wszystkich środowiskach operacyjnych konstrukcja z klapą w gnieździe akumulatora umożliwia łatwą wymianę akumulatora bez konieczności zdejmowania osłony.
The Kompaktowe komputery DRP-C100 są dostępne w wersji bez wentylatora i są odporne zakresie temperatur od -30 do 60°C, dzięki czemu dobrze nadają się do trudnych warunków środowiska operacyjne. Wbudowany moduł TPM 2.0 zabezpiecza platformę przed nieuprawnionym dostępem. Seria DRP-C100 to inteligentne, niezawodne, trwałe i wszechstronne, a jednocześnie przyjazne dla użytkownika rozwiązanie komputerowe, które spełnia wymagania zarówno wymagania OT, jak i IT środowisk przemysłowych.
Appearance
DRP-C100-C1-T/DRP-C100-C5-T/DRP-C100-C7-T/DRP-C100-C1-T-Win10/DRP-C100-C5-T-Win10/DRP-C100-C7-T-Win10 Models
DRP-C100-C1-8L-T/DRP-C100-C5-8L-T/DRP-C100-C7-8L-T Models
DRP-C100-C1-6C-T/DRP-C100-C5-6C-T/DRP-C100-C7-6C-T Models
DRP-C100-C1-2L4C-T/DRP-C100-C5-2L4C-T/DRP-C100-C7-2L4C-T Models
Technical Specification
- Computer
| CPU | DRP-C100-C1 Models:Intel® Celeron® 6305E (Dual core, 4M cache, 1.80 GHz) DRP-C100-C5 Models: Intel® Core™ Processor i5-1145G7E (Quad core, 8M cache,2.60 GHz, Base:1.50 GHz) DRP-C100-C7 Models: Intel® Core™ Processor i7-1185G7E (Quad core, 12M cache,2.80 GHz, Base:1.80 GHz) |
| System Memory Slot | SODIMM DDR4 slots x 1, up to 32 GB max. |
| System Memory Pre-installed | 8 GB DDR4 |
| Storage Slot | CFast slot x 1 (SATAIII interface) SD slots x 1, SD 3.0 interface (SDHC/SDXC) |
| Storage Pre-installed | DRP-C100-C1-T-Win10/C5-T-Win10/C7-T-Win10 Models: 64 GB CFast card |
| Supported OS | Windows Images and Drivers Supported: - Windows 10 IoT Enterprise LTSC 2021 64-bit - Windows 11 Professional 64-bit Linux Drivers Supported: - Debian 11 (kernel 5.10) - Ubuntu 22.04 LTS (kernel 5.15) - RHEL 9 (kernel 5.14) |
| Graphics Controller | Intel® UHD Graphics |
- Computer Interface
| Ethernet Ports | DRP-C100-C1-8L-T/C5-8L-T/C7-8L-T: Auto–sensing 10/100/1000 Mbps ports (RJ45 connector) x 10 DRP-C100-C1-2L4C-T/C5-2L4C-T/C7-2L4C-T: Auto–sensing 10/100/1000 Mbps ports (RJ45 connector) x 4 All Other Models: Auto–sensing 10/100/1000 Mbps ports (RJ45 connector) x 2 |
| Serial Ports | DRP-C100-C1-6C-T/C5-6C-T/C7-6C-T: RS-232/422/485 ports x 8, software selectable (DB9 male) x 8 DRP-C100-C1-2L4C-T/C5-2L4C-T/C7-2L4C-T: RS-232/422/485 ports x 6, software selectable (DB9 male) x 6 All Other Models: RS-232/422/485 ports x 2, software selectable (DB9 male) x 2 |
| USB 3.0 | USB 3.0 hosts x 3, type-A connectors |
| TPM | TPM v2.0 |
| Video Output | HDMI 2.0b x 1, (type A connector) VGA x 1, 15-pin D-sub connector (female) |
| Buttons | Reset button Power button |
- Ethernet Interface
| Magnetic Isolation Protection | 1.5 kV (built-in) |
- Serial Interface
| Baudrate | 50 bps to 115.2 kbps |
| Connector | DB9 male |
| Data Bits | 5, 6, 7, 8 |
| Parity | None, Even, Odd, Space, Mark |
| Stop Bits | 1, 1.5, 2 |
| Flow Control | RTS/CTS, XON/XOFF |
- Serial Signals
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
- LED Indicators
| System | Power x 1 Storage x 1 |
| LAN | 2 per port (10/100/1000 Mbps) |
- Power Parameters
| Input Voltage | 12/24 VDC |
| Power Connector | Screw-fastened Euroblock terminal |
| Power Consumption | 90 W |
- Physical Characteristics
| Housing | Metal |
| IP Rating | IP20 |
| Dimensions | DRP-C100-C1-T/C1-T-Win10/DRP-C100-C5-T/C5-T-Win10/DRP-C100-C7-T/-C7-TWin10: 60 x 130 x 150 mm (2.36 x 5.12 x 5.91 in) All Other Models: 94 x 130 x 150 mm (3.70 x 5.12 x 5.91 in) |
| Weight | DRP-C100-C1-T/C1-T-Win10/DRP-C100-C5-T/C5-T-Win10/DRP-C100-C7-T/-C7-TWin10:1,213 g (2.67 lb)All Other Models: 1.612 g (3.55 lb) |
| Installation | DIN-rail mounting |
- Declaration
| Green Product | RoHS, CRoHS, WEEE |
- Environmental Limits
| Operating Temperature | -30 to 60°C (-22 to 140°F) |
| Storage Temperature | -40 to 75°C (-40 to 167°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
- Standards and Certifications
| EMC | EN 55032/35 |
| EMI | CISPR 32, FCC Part 15B Class A BSMI |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 0.5 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 0.5 kV, Signal: 1 kV IEC 61000-4-6 CS: 3 V IEC 61000-4-8 PFMF: 1 A/m at 50 to 60 Hz |
| Safety | UL 62368-1 (CB) BSMI |
| Shock | IEC 60068-2-27 |
| Vibration | IEC 60068-2-64 |
| Package Drop Test | ISTA 1A |
| Package Vibration Test | ISTA 1A |
- Reliability
| Time Source | Built-in RTC (real-time clock) with lithium-battery backup |
| Automatic Reboot Trigger | Built-in WDT |
- MTBF
| Time | 584.337 hrs |
| Standards | Telcordia (Bellcore), GB |
- Warranty
| Warranty Period | 3 years |
| Details | See www.moxa.com/warranty |
