Manufacturer: MOXA
- 10/100BaseT(X) (RJ45 connector)
- Compact size for easy installation
- QoS supported to process critical data in heavy traffic
- IP40-rated plastic housing
Price from €79.00 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use onlyModels
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEDS-2008-ELPUnmanaged Fast Ethernet switch with 8 10/100BaseT(X) ports and -10 to 60°C operating temperature, plastic housingPromotion
In stockWarranty: €79.00€97.17Login to check your price EDS-2008-ELPUnmanaged Fast Ethernet switch with 8 10/100BaseT(X) ports and -10 to 60°C operating temperature, plastic housingPromotion
Availability:In stockNet price:€79.00
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDIN rail power supply 15W 24V 0.63AIn stockWarranty: €11.00€13.53Login to check your price DIN rail power supply 15W 24V 0.63AAvailability:In stockNet price:€11.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add19" Rackmont setIn stockWarranty: €166.00€204.18Login to check your price 19" Rackmont setAvailability:In stockNet price:€166.00
Description

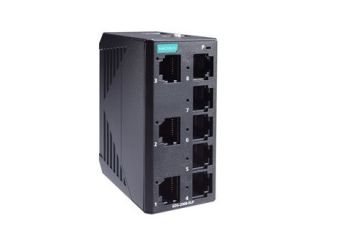

The EDS-2008-ELP series of industrial Ethernet switches have eight 10/100M copper ports and a plastic housing, which are ideal for applications that require simple industrial Ethernet connections. Moreover, to provide greater versatility for use with applications from different industries, the EDS-2008-ELP Series also allows users to enable or disable the Quality of Service (QoS) function, and broadcast storm protection (BSP) with DIP switches on the outer panel.
The EDS-2008-ELP Series has a 12/24/48 VDC single power input, DIN-rail mounting, and high-level EMI/EMC capabilities. In addition to its compact size, the EDS-2008-ELP Series has passed a 100% burn-in test to ensure it will function reliably after it has been deployed. The EDS-2008-ELP Series has a standard operating temperature range of -10 to 60°C.
Technical Specification
- Ethernet Interface
| 10/100BaseT(X) Ports (RJ45 connector) | 8 Full/Half duplex mode Auto MDI/MDI-X connection Auto negotiation speed |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.1p for Class of Service IEEE 802.3u for 100BaseT(X) IEEE 802.3x for flow control |
- Switch Properties
| Processing Type | Store and Forward |
| MAC Table Size | 8 K |
| Packet Buffer Size | 4 Mbits |
- DIP Switch Configuration
| Ethernet Interface | Quality of Service (QoS), Broadcast Storm Protection (BSP) |
- Power Parameters
| Connection | 1 removable 3-contact terminal block(s) |
| Input Current | 0.067 A @ 24 VDC |
| Input Voltage | 12/24/48 VDC |
| Operating Voltage | 9.6 to 60 VDC |
| Overload Current Protection | Supported |
| Reverse Polarity Protection | Supported |
- Physical Characteristics
| Dimensions | 36 x 81 x 65 mm (1.4 x 3.19 x 2.56 in) |
| Installation | DIN-rail mounting, Wall mounting (with optional kit) |
| Housing | Plastic |
| Weight | 90 g (0.2 lb) |
- Environmental Limits
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Operating Temperature | -10 to 60°C (14 to 140°F) |
| Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
- Standards and Certifications
| Safety | UL 61010-2-201, EN 62368-1 (LVD) |
| EMC | EN 55032/35 |
| EMI | CISPR 22, 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF |
| Shock | IEC 60068-2-27 |
| Vibration | IEC 60068-2-6 |
| Freefall | IEC 60068-2-32 |
- MTBF
| Time | 3,472,660 hrs |
| Standards | Telcordia (Bellcore), GB |
- Warranty
| Warranty period | 5 years |
