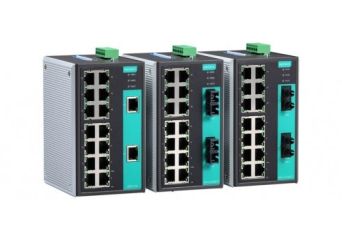

EDS-316

16-port unmanaged Ethernet switches

Relay output warning for power failure and port break alarm
Broadcast storm protection
-40 to 75°C operating temperature range (-T models)

Price from €541.00 Net price

High price? Log in and buy cheaper

In stock

Place the order by 12:00, the package will be shipped on the same day

Free shipping from €300

See 16 models

Promocja cenowa na model HDR-15-5

Product intended for professional use only

Models
Accessories
Description
Technical Specification
Download
Recommended Products

EDS-316

Models

Filter: ()

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
EDS-316 Industrial Unmanaged Ethernet Switch with 16 10/100BaseT(X) ports, 0 to 60°C	In stock	Warranty:		€541.00 €665.43 Login to check your price	Login to check your price	pcs.

EDS-316

Industrial Unmanaged Ethernet Switch with 16 10/100BaseT(X) ports, 0 to 60°C

Availability:

In stock

Net price:

€541.00

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
EDS-316-T Industrial Unmanaged Ethernet Switch with 16 10/100BaseT(X) ports, -40 to 75°C	Out of stock	Warranty:		€635.00 €781.05 Login to check your price	Login to check your price	pcs.

EDS-316-T

Industrial Unmanaged Ethernet Switch with 16 10/100BaseT(X) ports, -40 to 75°C

Availability: Out of stock

Net price:

€635.00

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
EDS-316-M-SC Industrial Unmanaged Ethernet Switch with 15 10/100BaseT(X) ports, 1 multi mode 100BaseFX port, SC connector, 0 to 60°C	Out of stock	Warranty:		€690.00 €848.70 Login to check your price	Login to check your price	pcs.

EDS-316-M-SC

Industrial Unmanaged Ethernet Switch with 15 10/100BaseT(X) ports, 1 multi mode 100BaseFX port, SC connector, 0 to 60°C

Availability: Out of stock

Net price:

€690.00

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
EDS-316-M-SC-T Industrial Unmanaged Ethernet Switch with 15 10/100BaseT(X) ports, 1 multi mode 100BaseFX port, SC connector, -40 to 75°C	Out of stock	Warranty:		€787.00 €968.01 Login to check your price	Login to check your price	pcs.

EDS-316-M-SC-T

Industrial Unmanaged Ethernet Switch with 15 10/100BaseT(X) ports, 1 multi mode 100BaseFX port, SC connector, -40 to 75°C

Availability: Out of stock

Net price:

€787.00

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
EDS-316-M-ST Industrial Unmanaged Ethernet Switch with 15 10/100BaseT(X) ports, 1 multi mode 100BaseFX port, ST connector, 0 to 60°C	Out of stock	Warranty:		€690.00 €848.70 Login to check your price	Login to check your price	pcs.

EDS-316-M-ST

Industrial Unmanaged Ethernet Switch with 15 10/100BaseT(X) ports, 1 multi mode 100BaseFX port, ST connector, 0 to 60°C

Availability: Out of stock

Net price:

€690.00

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
EDS-316-M-ST-T Industrial Unmanaged Ethernet Switch with 15 10/100BaseT(X) ports, 1 multi mode 100BaseFX port, ST connector, -40 to 75°C	Out of stock	Warranty:		€787.00 €968.01 Login to check your price	Login to check your price	pcs.

EDS-316-M-ST-T

Industrial Unmanaged Ethernet Switch with 15 10/100BaseT(X) ports, 1 multi mode 100BaseFX port, ST connector, -40 to 75°C

Availability: Out of stock

Net price:

€787.00

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
EDS-316-S-SC Industrial Unmanaged Ethernet Switch with 15 10/100BaseT(X) ports, 1 single mode 100BaseFX port, SC connector, 0 to 60°C	Out of stock	Warranty:		€816.00 €1,003.68 Login to check your price	Login to check your price	pcs.

EDS-316-S-SC

Industrial Unmanaged Ethernet Switch with 15 10/100BaseT(X) ports, 1 single mode 100BaseFX port, SC connector, 0 to 60°C

Availability: Out of stock

Net price:

€816.00

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
EDS-316-S-SC-T Industrial Unmanaged Ethernet Switch with 15 10/100BaseT(X) ports, 1 single mode 100BaseFX port, SC connector, -40 to 75°C	Out of stock	Warranty:		€888.00 €1,092.24 Login to check your price	Login to check your price	pcs.

EDS-316-S-SC-T

Industrial Unmanaged Ethernet Switch with 15 10/100BaseT(X) ports, 1 single mode 100BaseFX port, SC connector, -40 to 75°C

Availability: Out of stock

Net price:

€888.00

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
EDS-316-MM-SC Industrial Unmanaged Ethernet Switch with 14 10/100BaseT(X) ports, 2 multi mode 100BaseFX ports, SC connector, 0 to 60°C	In delivery	Warranty:		€776.00 €954.48 Login to check your price	Login to check your price	pcs.

EDS-316-MM-SC

Industrial Unmanaged Ethernet Switch with 14 10/100BaseT(X) ports, 2 multi mode 100BaseFX ports, SC connector, 0 to 60°C

Availability: In delivery

Net price:

€776.00

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
EDS-316-MM-SC-T Industrial Unmanaged Ethernet Switch with 14 10/100BaseT(X) ports, 2 multi mode 100BaseFX ports, SC connector, -40 to 75°C	Out of stock	Warranty:		€865.00 €1,063.95 Login to check your price	Login to check your price	pcs.

EDS-316-MM-SC-T

Industrial Unmanaged Ethernet Switch with 14 10/100BaseT(X) ports, 2 multi mode 100BaseFX ports, SC connector, -40 to 75°C

Availability: Out of stock

Net price:

€865.00

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
EDS-316-MM-ST Industrial Unmanaged Ethernet Switch with 14 10/100BaseT(X) ports, 2 multi mode 100BaseFX ports, ST connector, 0 to 60°C	Out of stock	Warranty:		€776.00 €954.48 Login to check your price	Login to check your price	pcs.

EDS-316-MM-ST

Industrial Unmanaged Ethernet Switch with 14 10/100BaseT(X) ports, 2 multi mode 100BaseFX ports, ST connector, 0 to 60°C

Availability: Out of stock

Net price:

€776.00

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
EDS-316-MM-ST-T Industrial Unmanaged Ethernet Switch with 14 10/100BaseT(X) ports, 2 multi mode 100BaseFX ports, ST connector, -40 to 75°C	Out of stock	Warranty:		€865.00 €1,063.95 Login to check your price	Login to check your price	pcs.

EDS-316-MM-ST-T

Industrial Unmanaged Ethernet Switch with 14 10/100BaseT(X) ports, 2 multi mode 100BaseFX ports, ST connector, -40 to 75°C

Availability: Out of stock

Net price:

€865.00

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
EDS-316-MS-SC Industrial Unmanaged Ethernet Switch with 14 10/100BaseT(X) ports, 1 multi mode and 1 single mode 100BaseFX ports, SC connector, 0 to 60°C	Out of stock	Warranty:		€947.00 €1,164.81 Login to check your price	Login to check your price	pcs.

EDS-316-MS-SC

Industrial Unmanaged Ethernet Switch with 14 10/100BaseT(X) ports, 1 multi mode and 1 single mode 100BaseFX ports, SC connector, 0 to 60°C

Availability: Out of stock

Net price:

€947.00

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
EDS-316-SS-SC Industrial Unmanaged Ethernet Switch with 14 10/100BaseT(X) ports, 2 single mode 100BaseFX ports, SC connector, 0 to 60°C	Out of stock	Warranty:		€1,129.00 €1,388.67 Login to check your price	Login to check your price	pcs.

EDS-316-SS-SC

Industrial Unmanaged Ethernet Switch with 14 10/100BaseT(X) ports, 2 single mode 100BaseFX ports, SC connector, 0 to 60°C

Availability: Out of stock

Net price:

€1,129.00

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
EDS-316-SS-SC-T Industrial Unmanaged Ethernet Switch with 14 10/100BaseT(X) ports, 2 single mode 100BaseFX ports, connector, -40 to 75°C	Out of stock	Warranty:		€1,204.00 €1,480.92 Login to check your price	Login to check your price	pcs.

EDS-316-SS-SC-T

Industrial Unmanaged Ethernet Switch with 14 10/100BaseT(X) ports, 2 single mode 100BaseFX ports, connector, -40 to 75°C

Availability: Out of stock

Net price:

€1,204.00

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
EDS-316-SS-SC-80 Industrial Unmanaged Ethernet Switch with 14 10/100BaseT(X) ports, 2 long-haul (80 km) single mode 100BaseFX ports, SC connector, 0 to 60°C	Out of stock	Warranty:		€2,588.00 €3,183.24 Login to check your price	Login to check your price	pcs.

EDS-316-SS-SC-80

Industrial Unmanaged Ethernet Switch with 14 10/100BaseT(X) ports, 2 long-haul (80 km) single mode 100BaseFX ports, SC connector, 0 to 60°C

Availability: Out of stock

Net price:

€2,588.00

Accessories

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
HDR-30-24 DIN rail power supply 30W 24V 1.5A	In stock	Warranty:		€13.40 €16.48 Login to check your price	Login to check your price	pcs. 96 pieces in box

HDR-30-24

DIN rail power supply 30W 24V 1.5A

Availability:

In stock

Net price:

€13.40

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
RK-4U 19" Rackmont set	In stock	Warranty:		€166.00 €204.18 Login to check your price	Login to check your price	pcs.

RK-4U

19" Rackmont set

Availability:

In stock

Net price:

€166.00

Description

The EDS-316 Ethernet switches provide an economical solution for your industrial Ethernet connections. These 16-port switches come with a built-in relay warning function that alerts network engineers when power failures or port breaks occur. In addition, the switches are designed for harsh industrial environments, such as the hazardous locations defined by the Class 1 Div. 2 and ATEX Zone 2 standards.

The switches comply with FCC, UL, and CE standards and support either a standard operating temperature range of -10 to 60°C or a wide operating temperature range of -40 to 75°C. All switches in the series undergo a 100% burn-in test to ensure that they fulfill the special needs of industrial automation control applications. The EDS-316 switches can be installed easily on a DIN rail or in a distribution box.

Technical Specification

Input/Output Interface

Alarm Contact Channels

1 relay output with current carrying capacity of 1 A @ 24 VDC

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)	EDS-316 Series: 16 EDS-316-MM-SC/MM-ST/MS-SC/SS-SC Series, EDS-316-SS-SC-80: 14 EDS-316-M-SC/M-ST/S-SC Series: 15 All models support: Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection
100BaseFX Ports (multi-mode SC connector)	EDS-316-M-SC: 1 EDS-316-M-SC-T: 1 EDS-316-MM-SC: 2 EDS-316-MM-SC-T: 2 EDS-316-MS-SC: 1
100BaseFX Ports (multi-mode ST connector)	EDS-316-M-ST Series: 1 EDS-316-MM-ST Series: 2
100BaseFX Ports (single-mode SC connector)	EDS-316-MS-SC, EDS-316-S-SC Series: 1 EDS-316-SS-SC Series: 2
100BaseFX Ports (single-mode SC connector, 80 km)	EDS-316-SS-SC-80: 2
Standards	IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control
Optical Fiber

DIP Switch Configuration

Ethernet Interface

Port break alarm

Switch Properties

Packet Buffer Size	1.25 Mbits
MAC Table Size	4 K
Processing Type	Store and Forward

Power Parameters

Input Current	Non-fiber models: 0.34 A @ 24 VDC Fiber models: 0.4 A @ 24 VDC
Connection	1 removable 6-contact terminal block(s)
Operating Voltage	9.6 to 60 VDC
Input Voltage	12/24/48 VDC, Redundant dual inputs
Reverse Polarity Protection	Supported
Overload Current Protection	Supported

Physical Characteristics

Housing	Metal
IP Rating	IP30
Dimensions	80.1 x 135 x 105 mm (3.15 x 5.31 x 4.13 in)
Weight	1140 g (2.52 lb)
Installation	DIN-rail mounting, Wall mounting (with optional kit)

Environmental Limits

Operating Temperature	Standard Models: -10 to 60°C (14 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included)	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)

Standards and Certifications

Hazardous Locations	ATEX, Class I Division 2
EMI	CISPR 32, FCC Part 15B Class A
Maritime	DNV-GL
EMC	EN 55032/24
Vibration	IEC 60068-2-6
EMS	IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 MHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
Safety	UL 508, UL 60950-1, CSA C22.2 No. 60950-1
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-32
