Manufacturer: MOXA
- Developed according to the IEC 62443-4-1 and compliant with the IEC 62443-4-2 industrial cybersecurity standards
- Support for IEEE 802.3bt PoE for up to 90 W output per port
- Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches) , and RSTP/STP for network redundancy
- Wide range of power input options for flexible deployment
- Compact and flexible housing design to fit into confined spaces
- Supports MXstudio for easy, visualized industrial network management
Price from €1,256.00 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use onlyModels
Filter: ()
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEDS-4012-4GS-LVManaged Gigabit Ethernet switch with 8 10/100BaseT(X) ports, 4 100/1000BaseSFP ports, dual power inputs 12/24/48 VDC, -10 to 60°C operating temperatureOut of stock Warranty: €1,256.00€1,544.88Login to check your price EDS-4012-4GS-LVManaged Gigabit Ethernet switch with 8 10/100BaseT(X) ports, 4 100/1000BaseSFP ports, dual power inputs 12/24/48 VDC, -10 to 60°C operating temperatureAvailability: Out of stockNet price:€1,256.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEDS-4012-4GS-LV-TManaged Gigabit Ethernet switch with 8 10/100BaseT(X) ports, 4 100/1000BaseSFP ports, dual power inputs 12/24/48 VDC, -40 to 75°C operating temperatureOut of stock Warranty: €1,382.00€1,699.86Login to check your price EDS-4012-4GS-LV-TManaged Gigabit Ethernet switch with 8 10/100BaseT(X) ports, 4 100/1000BaseSFP ports, dual power inputs 12/24/48 VDC, -40 to 75°C operating temperatureAvailability: Out of stockNet price:€1,382.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEDS-4012-4GS-HVManaged Gigabit Ethernet switch with 8 10/100BaseT(X) ports, 4 100/1000BaseSFP ports, single power input 110/220 VAC/VDC, -10 to 60°C operating temperatureIn stockWarranty: €1,360.00€1,672.80Login to check your price EDS-4012-4GS-HVManaged Gigabit Ethernet switch with 8 10/100BaseT(X) ports, 4 100/1000BaseSFP ports, single power input 110/220 VAC/VDC, -10 to 60°C operating temperatureAvailability:In stockNet price:€1,360.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEDS-4012-4GS-HV-TManaged Gigabit Ethernet switch with 8 10/100BaseT(X) ports, 4 100/1000BaseSFP ports, single power input 110/220 VAC/VDC, -40 to 75°C operating temperatureOut of stock Warranty: €1,486.00€1,827.78Login to check your price EDS-4012-4GS-HV-TManaged Gigabit Ethernet switch with 8 10/100BaseT(X) ports, 4 100/1000BaseSFP ports, single power input 110/220 VAC/VDC, -40 to 75°C operating temperatureAvailability: Out of stockNet price:€1,486.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEDS-4012-4GC-LVManaged Gigabit Ethernet switch with 8 10/100BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP ports, dual power inputs 12/24/48 VDC, -10 to 60°C operating temperatureIn stockWarranty: €1,360.00€1,672.80Login to check your price EDS-4012-4GC-LVManaged Gigabit Ethernet switch with 8 10/100BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP ports, dual power inputs 12/24/48 VDC, -10 to 60°C operating temperatureAvailability:In stockNet price:€1,360.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEDS-4012-4GC-LV-TManaged Gigabit Ethernet switch with 8 10/100BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP ports, dual power inputs 12/24/48 VDC, -40 to 75°C operating temperatureOut of stock Warranty: €1,486.00€1,827.78Login to check your price EDS-4012-4GC-LV-TManaged Gigabit Ethernet switch with 8 10/100BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP ports, dual power inputs 12/24/48 VDC, -40 to 75°C operating temperatureAvailability: Out of stockNet price:€1,486.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEDS-4012-4GC-HVManaged Gigabit Ethernet switch with 8 10/100BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP ports, single power input 110/220 VAC/VDC, -10 to 60°C operating temperatureIn stockWarranty: €1,464.00€1,800.72Login to check your price EDS-4012-4GC-HVManaged Gigabit Ethernet switch with 8 10/100BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP ports, single power input 110/220 VAC/VDC, -10 to 60°C operating temperatureAvailability:In stockNet price:€1,464.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEDS-4012-4GC-HV-TManaged Gigabit Ethernet switch with 8 10/100BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP ports, single power input 110/220 VAC/VDC, -40 to 75°C operating temperatureOut of stock Warranty: €1,591.00€1,956.93Login to check your price EDS-4012-4GC-HV-TManaged Gigabit Ethernet switch with 8 10/100BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP ports, single power input 110/220 VAC/VDC, -40 to 75°C operating temperatureAvailability: Out of stockNet price:€1,591.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEDS-4012-8P-4GS-LVAManaged Gigabit Ethernet switch with 8 10/100BaseT(X) ports with 802.3bt PoE, 4 100/1000BaseSFP ports, dual power inputs 48 VDC for PoE, -10 to 60°C operating temperatureIn delivery Warranty: €1,894.00€2,329.62Login to check your price EDS-4012-8P-4GS-LVAManaged Gigabit Ethernet switch with 8 10/100BaseT(X) ports with 802.3bt PoE, 4 100/1000BaseSFP ports, dual power inputs 48 VDC for PoE, -10 to 60°C operating temperatureAvailability: In deliveryNet price:€1,894.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEDS-4012-8P-4GS-LVA-TManaged Gigabit Ethernet switch with 8 10/100BaseT(X) ports with 802.3bt PoE, 4 100/1000BaseSFP ports, dual power inputs 48 VDC for PoE, -40 to 75°C operating temperatureOut of stock Warranty: €2,027.00€2,493.21Login to check your price EDS-4012-8P-4GS-LVA-TManaged Gigabit Ethernet switch with 8 10/100BaseT(X) ports with 802.3bt PoE, 4 100/1000BaseSFP ports, dual power inputs 48 VDC for PoE, -40 to 75°C operating temperatureAvailability: Out of stockNet price:€2,027.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEDS-4012-8P-4GS-LVBManaged Gigabit Ethernet switch with 8 10/100BaseT(X) ports with 802.3bt PoE, 4 100/1000BaseSFP ports, dual power inputs 12/24/48 VDC, -10 to 60°C operating temperatureOut of stock Warranty: €2,015.00€2,478.45Login to check your price EDS-4012-8P-4GS-LVBManaged Gigabit Ethernet switch with 8 10/100BaseT(X) ports with 802.3bt PoE, 4 100/1000BaseSFP ports, dual power inputs 12/24/48 VDC, -10 to 60°C operating temperatureAvailability: Out of stockNet price:€2,015.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEDS-4012-8P-4GS-LVB-TManaged Gigabit Ethernet switch with 8 10/100BaseT(X) ports with 802.3bt PoE, 4 100/1000BaseSFP ports, dual power inputs 12/24/48 VDC, -40 to 75°C operating temperatureIn stockWarranty: €2,148.00€2,642.04Login to check your price EDS-4012-8P-4GS-LVB-TManaged Gigabit Ethernet switch with 8 10/100BaseT(X) ports with 802.3bt PoE, 4 100/1000BaseSFP ports, dual power inputs 12/24/48 VDC, -40 to 75°C operating temperatureAvailability:In stockNet price:€2,148.00
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSmall Form Factor pluggable transceiver with 100Base multi-mode, LC connector, 4Km, -40 to 85°CIn stockWarranty: €122.00€150.06Login to check your price Small Form Factor pluggable transceiver with 100Base multi-mode, LC connector, 4Km, -40 to 85°CAvailability:In stockNet price:€122.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSmall Form Factor pluggable transceiver with 100Base single-mode, LC connector, 40Km, -40 to 85°CIn stockWarranty: €274.00€337.02Login to check your price Small Form Factor pluggable transceiver with 100Base single-mode, LC connector, 40Km, -40 to 85°CAvailability:In stockNet price:€274.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSmall Form Factor pluggable transceiver with 1000BaseLX, LC connector, 10 km, 0 to 60°CIn stockWarranty: €257.00€316.11Login to check your price Small Form Factor pluggable transceiver with 1000BaseLX, LC connector, 10 km, 0 to 60°CAvailability:In stockNet price:€257.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSmall Form Factor pluggable transceiver with 1000BaseSX, LC connector, 0.5 km, 0 to 60°CIn stockWarranty: €145.00€178.35Login to check your price Small Form Factor pluggable transceiver with 1000BaseSX, LC connector, 0.5 km, 0 to 60°CAvailability:In stockNet price:€145.00
Description

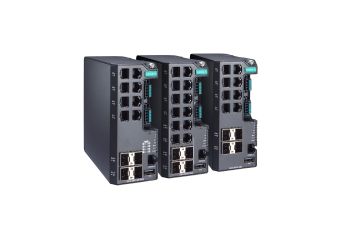

The EDS-4012 Series is a range of 12-port managed Fast Ethernet switches with the option for four 1 Gbps fiber-optic uplink ports. This Series also offers models with four 10/100BaseT(X) 802.3af (PoE), 802.3at (PoE+), and 802.3bt-compliant Ethernet PoE port options to connect high-bandwidth PoE devices.
Redundant Ethernet technologies such as Turbo Ring, Turbo Chain, and RSTP/STP increase the reliability of your system and improve the availability of your network backbone. The EDS-4012 Series is designed specifically for demanding applications such as video and process monitoring, ITS, and DCS systems, all of which can benefit from a scalable backbone.
The EDS-4012 Series is compliant with the IEC 62443-4-2 and IEC 62443-4-1 Industrial Cybersecurity certifications, which cover both product security and secure development life-cycle requirements, helping our customers meet the compliance requirements of secure industrial network design.
Technical Specification
- Ethernet Interface
| 10/100BaseT(X) Ports (RJ45 connector) |
EDS-4012-4GS-LV/-HV/-T models: 8 EDS-4012-4GC-LV/-HV/-T models: 8 Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection |
| PoE Ports (10/100BaseT(X), RJ45 connector) | EDS-4012-8P-4GS-LVA/-LVB/-T models: 8 |
| 100/1000BaseSFP Ports |
EDS-4012-4GS-LV/-HV/-T models: 4 EDS-4012-8P-4GS-LVA/-VB/-T models: 4 |
| Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP) | EDS-4012-4GC-LV/-HV/-T models: 4 |
| Standards |
IEEE 802.3 for 10BaseT |
- Ethernet Software Features
| Filter | GMRP, GVRP, GARP, 802.1Q VLAN, IGMP Snooping v1/v2/v3, IGMP Querier |
| Management | IPv4/IPv6, Flow control, Back Pressure Flow Control, DHCP Server/Client, ARP, RARP, LLDP, Fiber check, Port Mirroring (SPAN, RSPAN), Linkup Delay, SMTP, SNMP Trap, SNMP Inform, SNMPv1/v2c/v3, RMON, TFTP, SFTP, HTTP, HTTPS, Telnet, Syslog, Private MIB |
| MIB | P-BRIDGE MIB, Q-BRIDGE MIB, IEEE8021-SPANNING-TREE-MIB, IEEE8021-PAE-MIB, IEEE8023-LAG-MIB, LLDP-EXT-DOT1-MIB, LLDP-EXT-DOT3-MIB, SNMPv2-MIB, RMON MIB Groups 1, 2, 3, 9 |
| Redundancy Protocols | STP, RSTP, Turbo Ring v2, Turbo Chain, Ring Coupling, Dual-Homing, Link Aggregation, MSTP, MRP |
| Industrial Protocols | EtherNet/IP, Modbus TCP, PROFINET IO Device |
| Security | Broadcast storm protection, Rate Limit, Trust access control, Static Port Lock, MAC Sticky, HTTPS/SSL, SSH, RADIUS, TACACS+, Login and Password Policy, ACL, DHCP Snooping |
| Time Management | SNTP, NTP Server/Client, NTP Authentication, IEEE 1588v2 PTP (hardware-based) Supported power profiles: IEEE 1588 Default 2008, IEC 61850-9-3-2016, IEEE C37.238-2017 |
| Protocols | IPv4/IPv6, TCP/IP, UDP, ICMP, ARP, RARP, TFTP, DNS, NTP Client, DHCP Server, DHCP Client, 802.1X, QoS, HTTPS, HTTP, Telnet, SMTP, SNMPv1/v2c/v3, RMON, Syslog |
- Switch Properties
| MAC Table Size | 16 K |
| Jumbo Frame Size | 9.216 KB |
| Max. No. of VLANs | 256 |
| VLAN ID Range | VID 1 to 4094 |
| IGMP Groups | 512 |
| Priority Queues | 4 |
| Packet Buffer Size | 1 MB |
- LED Interface
| LED Indicators | PWR1, PWR2, STATE, FAULT, MSTR/HEAD, CPLR/TAIL, SYNC |
- Serial Interface
| Console Port | RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1) |
- USB Interface
| USB Connector | USB Type A (Reserved) |
- Input/Output Interface
| Alarm Contact Channels | 1, Relay output with current carrying capacity of 1 A @ 24 VDC |
| Digital Input Channels | 1 |
| Digital Inputs | +13 to +30 V for state 1 -30 to +3 V for state 0 Max. input current: 8 mA |
| Buttons | Reset button |
- DIP Switch Configuration
| DIP Switches | Turbo Ring, Master, Coupler, Reserve |
- Power Parameters
| Connection | 2 removable 4-contact terminal block(s) |
| Pre-installed Power Module | -LV/-LV-T models: PWR-100–LV -HV/-HV-T models: PWR-105-HV-I -LVA/-LVA-T models: PWR-101-LV-BP-I -LVB/-LVB-T models: PWR-103-LV-VB-I |
| Note | The EDS-4012 Series supports modular power supplies. The model names and power parameters are determined by the installed power module. For example: EDS-4012-4GS-T + PWR-100–LV = EDS-4012-4GS-LV-T EDS-4012-4GS-T + PWR-105-HV-I = EDS-4012-4GS-HV-T If you install a different power module, refer to the specifications of the corresponding model. For example, if you replace the power module of the EDS-4012-4GS–LV-T with the PWR-105–HV-I, refer to the specifications of the EDS-4012–4GS-HV-T. |
| Input Voltage | -LV/-LV-T models: 12/24/48 VDC, Redundant dual inputs -HV/-HV-T models: 110/220 VDC/VAC, Single input -LVA/-LVA-T models: 48 VDC, Redundant dual inputs -LVB/-LVB-T models: 12/24/48 VDC, Redundant dual inputs |
| Operating Voltage | -LV/-LV-T models: 9.6 to 60 VDC -HV/-HV-T models: 88 to 300 VDC, 85 to 264 VAC -LVA/-LVA-T models: 44 to 57 VDC (>52 VDC for PoE+ output recommended) -LVB/-LVB-T models: 12 to 57 VDC (>52 VDC for PoE+ output recommended) |
| Input Current | -LV/-LV-T models: 12-48 VDC, 1.50-0.40 A or 24 VDC, 0.70 A -HV/-HV-T models: 110-220 VAC, 50-60 Hz, 0.30-0.20 A or 110-220 VDC, 0.30-0.20 A -LVA/-LVA-T models: 48 VDC, 5.42 A -LVB/-LVB-T models: 12/48 VDC, 7.46/4.27 A or 24 VDC, 7.26 A |
| Power Consumption (Max.) | EDS-4012-4GS-LV/-T models: 10.52 W EDS-4012-4GS-HV-/T models: 12.22 W EDS-4012-4GC-LV/-T models: 10.7 W EDS-4012-4GC-HV/-T models: 13.35 W EDS-4012-8P-4GS-LVA/-T models: Without PoE: 13.34 W With PoE: Max. 240 W for total PD power consumption @ 48 VDC input EDS-4012-8P-4GS-LVB/-T models: Without PoE: 15.32 W With PoE: Max. 180 W for total PD power consumption @ 48 VDC input Max. 150 W for total PD power consumption @ 24 VDC input (Max. 120 W for -T model) Max. 62 W for total PD consumption @ 12 VDC input |
| Max. PoE Power Output per Port | 90 W |
| Overload Current Protection | Supported |
| Reverse Polarity Protection | Supported |
- Physical Characteristics
| IP Rating | IP40 |
| Dimensions | 55 x 140 x 120 mm (2.17 x 5.51 x 4.72 in) |
| Weight | 827 g (1.82 lb) |
| Installation | DIN-rail mounting, Wall mounting (with optional kit) |
| Housing | Metal |
- Environmental Limits
| Operating Temperature | Standard Models: -10 to 60°C (14 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
- Standards and Certifications
| Industrial Cybersecurity | IEC 62443-4-1 IEC 62443-4-2 |
| Safety | UL 61010-2-201, EN 62368-1 (LVD) |
| EMC | EN 55032/35, EN 61000-6-2/-6-4 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF |
| Vibration | IEC 60068-2-6 |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
| Railway | EN 50121-4 |
| Traffic Control | NEMA TS2 |
| Power Substation | IEC 61850-3 IEEE 1613 Class 1 |
| Hazardous Locations | -LV/-LV-T models: ATEX IECEx Class I Division 2 |
| Maritime |
-LV/-LV-T, PoE/PoE-T models: DNV, ABS, NK, LR |
- MTBF
| Time | EDS-4012-4GC-LV/-T models: 1,036,336 hrs EDS-4012-4GC-HV/-T models: 497,392 hrs EDS-4012-4GS-LV/-T models: 874,838 hrs EDS-4012-4GS-HV/-T models: 456,870 hrs EDS-4012-8P-4GS-LVA/-T models: 799,780 hrs EDS-4012-8P-4GS-LVB/-T models: 759,924 hrs |
| Standards | Telcordia SR332 |
- Warranty
| Warranty Period | 5 years |
| Details | See www.moxa.com/warranty |
