NOTE: EDS-G2008-ELP is covered with special discount conditions. Only a 3% discount for proforma/online payments and a 3% discount for purchases through our online store is applied to the list price. |
Promotion

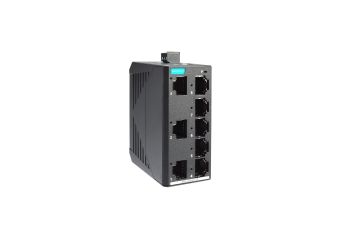

Manufacturer: MOXA
- Full Gigabit Ethernet ports
- Compact size for easy installation
- QoS supported to process critical data in heavy traffic
- IP40-rated plastic housing
- -40 to 75°C wide operating temperature range (-T models)
Price from €163.00 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEDS-G2008-ELP8-Port full gigabit Entry-level Unmanaged Switch, 8 Fast TP ports, -10 to 60°C, plastic housingPromotion
In stockWarranty: €163.00€200.49Login to check your price EDS-G2008-ELP8-Port full gigabit Entry-level Unmanaged Switch, 8 Fast TP ports, -10 to 60°C, plastic housingPromotion
Availability:In stockNet price:€163.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEDS-G2008-EL8-Port full gigabit Entry-level Unmanaged Switch, 8 Fast TP ports, -10 to 60°C, metal housingIn stockWarranty: €273.00€335.79Login to check your price EDS-G2008-EL8-Port full gigabit Entry-level Unmanaged Switch, 8 Fast TP ports, -10 to 60°C, metal housingAvailability:In stockNet price:€273.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEDS-G2008-EL-T8-Port full gigabit Entry-level Unmanaged Switch, 8 Fast TP ports, -40 to 75°C, metal housingOut of stock Warranty: €315.00€387.45Login to check your price EDS-G2008-EL-T8-Port full gigabit Entry-level Unmanaged Switch, 8 Fast TP ports, -40 to 75°C, metal housingAvailability: Out of stockNet price:€315.00
Useful products
Description
The EDS-G2008-EL/EDS-G2008-ELP series of industrial Ethernet switches have five Gigabit Ethernet ports, which are ideal for applications that require simple industrial Ethernet connections. Moreover, to provide greater versatility for use with applications from different industries, the EDS-G2008-EL/EDS-G2008-ELP Series also allows users to enable or disable the Quality of Service (QoS) function, and broadcast storm protection (BSP) with DIP switches on the outer panel. In addition, the EDS-G2008-EL Series has a rugged metal (EDS-G2008-ELP has plastic) housing to ensure suitability for use in industrial environments.
The EDS-G2005-EL/EDS-G2005-ELP Series has a 12/24/48 VDC single power input, DIN-rail mounting, and high-level EMI/EMC capabilities. In addition to its compact size, the EDS-G2005-EL/EDS-G2005-ELP Series has passed a 100% burn-in test to ensure it will function reliably after it has been deployed. The EDS-G2008-EL/EDS-G2008-ELP Series has a standard operating temperature range of -10 to 60°C with wide-temperature (-40 to 75°C) models also available.
Technical Specification
- Ethernet Interface
| 10/100/1000 BaseT(X) Ports (RJ45 connector) | 8 Full/Half duplex mode Auto MDI/MDI-X connection Auto negotiation speed |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3ab for 1000BaseT(X) IEEE 802.3x for flow control IEEE 802.1p for Class of Service |
| Processing Type | Store and Forward |
| MAC Table Size | 4 K |
| Packet Buffer Size | 1,5 Mbits |
- DIP Switch Configuration
| Ethernet Interface | Quality of Service (QoS), Broadcast Storm Protection (BSP) |
- Power Parameters
| Connection | 1 removable terminal block(s) |
| Input Current | 0.33 A @ 24 VDC |
| Input Voltage | 12/24/48 VDC |
| Operating Voltage | 9.6 to 60 VDC |
| Overload Current Protection | Supported |
| Reverse Polarity Protection | Supported |
- Physical Characteristics
| Dimensions | 36 x 81 x 65 mm (1.42 x 3.19 x 2.56 in) |
| Installation | DIN-rail mounting, Wall mounting (with optional kit) |
| Weight |
EDS-G2008-ELP: 140 g EDS-G2008-EL: 180 g |
| Housing |
EDS-G2008-ELP: Plastic EDS-G2008-EL: Metal |
- Environmental Limits
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Operating Temperature | EDS-G2008-EL/EDS-G2008-ELP: -10 to 60°C (14 to 140°F) EDS-G2008-EL-T: -40 to 75°C (-40 to 167°F) |
| Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
- Standards and Certifications
| Safety | UL 61010-2-201, EN 62368-1 (LVD) |
| EMC | EN 55032/35 |
| EMI | CISPR 22, 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF |
| Shock | IEC 60068-2-27 |
| Vibration | IEC 60068-2-6 |
| Freefall | IEC 60068-2-32 |
- MTBF
| Time | 3,404,784 hrs |
| Standards | Telcordia (Bellcore), GB |
- Warranty
| Warranty period | 5 years |
