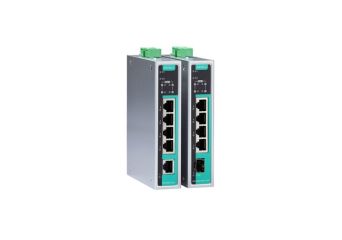

EDS-G205A-4PoE
5-port full Gigabit unmanaged Ethernet switches with 4 IEEE 802.3af/at PoE+ ports
- Full Gigabit Ethernet ports
- IEEE 802.3af/at, PoE+ standards
- Up to 36 W output per PoE port
- 12/24/48 VDC redundant power inputs
- Supports 9.6 KB jumbo frames
- Intelligent power consumption detection and classification
- Smart PoE overcurrent and short-circuit protection
- -40 to 75°C operating temperature range (-T models)
Price from €619.00 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
EDS-G205A-4PoE
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEDS-G205A-4PoEUnmanaged gigabit PoE switch with 4 PoE 10/100/1000BaseT(X) ports, 1 1000BaseT port, 0 to 60°CIn stockWarranty: €619.00€761.37Login to check your price EDS-G205A-4PoEUnmanaged gigabit PoE switch with 4 PoE 10/100/1000BaseT(X) ports, 1 1000BaseT port, 0 to 60°CAvailability:In stockNet price:€619.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEDS-G205A-4PoE-TUnmanaged gigabit PoE switch with 4 PoE 10/100/1000BaseT(X) ports, 1 1000BaseT port, -40 to 75°COut of stock Warranty: €684.00€841.32Login to check your price EDS-G205A-4PoE-TUnmanaged gigabit PoE switch with 4 PoE 10/100/1000BaseT(X) ports, 1 1000BaseT port, -40 to 75°CAvailability: Out of stockNet price:€684.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEDS-G205A-4PoE-1GSFPUnmanaged gigabit PoE switch with 4 PoE 10/100/1000BaseT(X) ports, 1 1000BaseX (SFP slot) port, 0 to 60°COut of stock Warranty: €661.00€813.03Login to check your price EDS-G205A-4PoE-1GSFPUnmanaged gigabit PoE switch with 4 PoE 10/100/1000BaseT(X) ports, 1 1000BaseX (SFP slot) port, 0 to 60°CAvailability: Out of stockNet price:€661.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEDS-G205A-4PoE-1GSFP-TUnmanaged gigabit PoE switch with 4 PoE 10/100/1000BaseT(X) ports, 1 1000BaseX (SFP slot) port, -40 to 75°CIn stockWarranty: €727.00€894.21Login to check your price EDS-G205A-4PoE-1GSFP-TUnmanaged gigabit PoE switch with 4 PoE 10/100/1000BaseT(X) ports, 1 1000BaseX (SFP slot) port, -40 to 75°CAvailability:In stockNet price:€727.00
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDIN rail power supply 154W 48V 3.2AIn stockWarranty: €32.90€40.47Login to check your price DIN rail power supply 154W 48V 3.2AAvailability:In stockNet price:€32.90 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDIN rail power supply 60W 48V 1.25AIn stockWarranty: €18.20€22.39Login to check your price DIN rail power supply 60W 48V 1.25AAvailability:In stockNet price:€18.20
Description
The EDS-G205A-4PoE switches are smart, 5-port, unmanaged full Gigabit Ethernet switches supporting Power-over-Ethernet on ports 2 to 5. The switches are classified as power source equipment (PSE), and when used in this way, the EDS-G205A-4PoE switches enable centralization of the power supply, providing up to 36 watts of power per port and reducing the effort needed for installing power.
The switches can be used to power IEEE 802.3af/at standard devices (power devices), eliminating the need for additional wiring, and they support IEEE 802.3/802.3u/802.3x with 10/100/1000M, full/half-duplex, MDI/MDI-X auto-sensing to provide an economical high-bandwidth solution for your industrial Ethernet network.
Technical Specification
- Ethernet Interface
| 10/100/1000BaseT(X) Ports (RJ45 connector) |
EDS-G205A-4PoE Series: 5 All models support: |
| 100/1000BaseSFP Ports | EDS-G205A-4PoE-1GSFP Series: 1 |
| PoE Ports (10/100/1000BaseT(X), RJ45 connector) | 4 |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3ab for 1000BaseT(X) IEEE 802.3af/at for PoE/PoE+ output IEEE 802.3u for 100BaseT(X) IEEE 802.3x for flow control IEEE 802.3z for 1000BaseX |
| PoE Pinout | V+, V+, V-, V- for pins 1, 2, 3, 6 (Endspan, MDI, Mode A) |
- Switch Properties
| MAC Table Size | 8 K |
| Packet Buffer Size | 1 Mbits |
| Processing Type | Store and Forward |
| Jumbo Frame Size | 10 KB |
- Power Parameters
| Connection | 2 removable 2-contact terminal block(s) |
| Input Voltage | 12/24/48 VDC, Redundant dual inputs |
| Operating Voltage | 12 to 57 VDC |
| Overload Current Protection | Supported |
| Power Consumption (Max.) | Max. 11.73 W full loading without PDs’ consumption |
| Reverse Polarity Protection | Supported |
| Input Current | 5.65 A @ 24 VDC |
| Power Budget | 62 W (max.) @ 12 VDC for total PD consumption; 36 W (max.) for each PoE port 120 W (max.) @ 24 VDC for total PD consumption; 36 W (max.) for each PoE port 144 W (max.) @ 48 VDC for total PD consumption; 36 W (max.) for each PoE port |
- Physical Characteristics
| Housing | Metal |
| IP Rating | IP30 |
| Dimensions | 29 x 135 x 105 mm (1.14 x 5.31 x 4.13 in) |
| Weight | 300 g (0.66 lb) |
| Installation | DIN-rail mounting, Wall mounting (with optional kit) |
- Environmental Limits
| Operating Temperature | Standard Models: 0 to 60°C (32 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
- Standards and Certifications
| Freefall | IEC 60068-2-32 |
| EMC | EN 61000-6-2/-6-4 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF |
| Railway | EN 50121-4 |
| Safety | UL 508 |
| Shock | IEC 60068-2-27 |
| Vibration | IEC 60068-2-6 |
- MTBF
| Time | 1,257,910 hrs |
| Standards | Telcordia (Bellcore), GB |
