Recommended
Advanced modular remote I/O adapter with built-in serial ports
Price from €344.00 Net price
Product out of stock
new
Manufacturer: MOXA
- 10/100BaseT(X) auto-negotiation and auto-MDI/MDI-X
- IEEE 802.3af (PoE) and IEEE 802.3at (PoE+) standard compliance
- Up to 36 W output on the PoE+ port
- Supports store-and-forward mode and pass-through mode
- -10 to 60°C operating temperature range
- Redundant dual DC power inputs
Price from €385.00 Net price
High price? Log in and buy cheaper
In delivery
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use onlyModels
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddIMC-P21A-G2-M-STPoE+ industrial 10/100Base-T(X) to 100Base-FX media converter, multi-mode port with ST connector, -10 to 60°C operating temperatureOut of stock Warranty: €385.00€473.55Login to check your price IMC-P21A-G2-M-STPoE+ industrial 10/100Base-T(X) to 100Base-FX media converter, multi-mode port with ST connector, -10 to 60°C operating temperatureAvailability: Out of stockNet price:€385.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddIMC-P21A-G2-M-SCPoE+ industrial 10/100Base-T(X) to 100Base-FX media converter, multi-mode port with SC connector, -10 to 60°C operating temperatureIn delivery Warranty: €385.00€473.55Login to check your price IMC-P21A-G2-M-SCPoE+ industrial 10/100Base-T(X) to 100Base-FX media converter, multi-mode port with SC connector, -10 to 60°C operating temperatureAvailability: In deliveryNet price:€385.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddIMC-P21A-G2-S-SCPoE+ industrial 10/100Base-T(X) to 100Base-FX media converter, single-mode port with SC connector, -10 to 60°C operating temperatureIn delivery Warranty: €467.00€574.41Login to check your price IMC-P21A-G2-S-SCPoE+ industrial 10/100Base-T(X) to 100Base-FX media converter, single-mode port with SC connector, -10 to 60°C operating temperatureAvailability: In deliveryNet price:€467.00
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDIN rail power supply 60W 48V 1.25AIn stockWarranty: €18.20€22.39Login to check your price DIN rail power supply 60W 48V 1.25AAvailability:In stockNet price:€18.20
Description

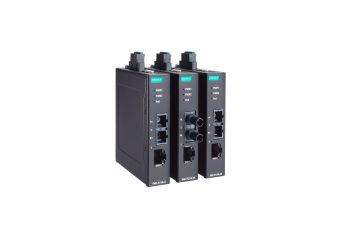

IMC-P21A-G2 PoE+ Fast Ethernet-to-fiber media converters are designed to provide reliable and stable 10/100BaseT(X)-to-100Base-FX media conversion. These converters are classified as power source equipment (PSE) and are used to directly power up powered devices (PDs), eliminating the need for additional wiring.
The IMC-P21A-G2 PoE+ Fast Ethernet-to-fiber media converters provide up to 30 watts of power for PoE+ port in standard mode and allow highpower output of up to 36 watts for heavy-duty industrial PoE devices, such as weather-proof IP surveillance cameras with wipers/heaters, highperformance wireless access points, and IP phones. The IMC-P21A-G2 media converters are highly versatile and with SC or ST fiber ports, can transmit data with high EMI immunity for up to 40 km from the device to the control center.
The PoE+ Fast Ethernet-to-fiber media converters support a variety of useful functions, as well as PoE diagnostics, Link Fault Pass-through, storeand- forward mode, and pass-through mode. The IMC-P21A-G2 converters support IEEE 802.3/802.3u/802.3x with 10/100M and MDI/MDI-X autosensing, providing a complete solution for your industrial Ethernet networks.
Technical Specification
- Ethernet Interface
| 100BaseFX Ports (multi-mode SC connector) | IMC-P21A-G2-M-SC models: 1 |
| 100BaseFX Ports (multi-mode ST connector) | IMC-P21A-G2-M-ST models: 1 |
| 100BaseFX Ports (single-mode SC connector) | IMC-P21A-G2-S-SC models: 1 |
| PoE Ports (10/100BaseT(X), RJ45 connector) | 1 |
| Optical Fiber |  |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
- Power Parameters
| Input Voltage | 44 to 57 VDC, PoE+ output: > 52 VDC recommended, PoE output: > 44 VDC recommended |
| Power Consumption | Max 828 mA |
| Overload Current Protection | Supported |
- Physical Characteristics
| Housing | Metal |
| IP Rating | IP40 (with I/O modules attached) |
| Dimensions | 90 x 73 x 20.3 mm (3.54 x 2.87 x 0.79 in) |
| Weight | Product Only: 212 g (0.47 lb) |
| Installation | DIN-rail mounting |
- Environmental Limits
| Operating Temperature | -10 to 60°C (14 to 140°F) |
| Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
- Standards and Certifications
| EMC | EN 55032/35 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz; Signal: 10 V, IEC 61000-4-8 PFMF |
| Shock | IEC 60068-2-27 |
| Vibration | IEC 60068-2-6, IEC 60068-2-64 |
| Freefall | ISTA 1A |
- MTBF
| Time | 6,708,861 hrs |
| Standards | Telcordia SR332 |
- Warranty
| Warranty Period | 5 years |
| Details | See www.moxa.com/warranty |
