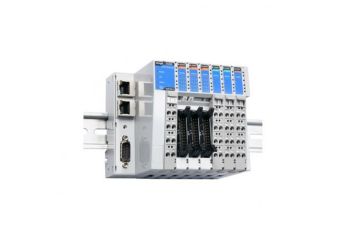

ioLogik E4200 - Active interface module
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddioLogik E4200Active Ethernet Network AdapterOut of stock Warranty: €624.00€767.52Login to check your price ioLogik E4200Active Ethernet Network AdapterAvailability: Out of stockNet price:€624.00
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddI/O Module, 4DI, 110VAC, RTBOut of stock Warranty: €82.00€100.86Login to check your price I/O Module, 4DI, 110VAC, RTBAvailability: Out of stockNet price:€82.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddI/O Module, 4DI, 220VAC, RTBOut of stock Warranty: €82.00€100.86Login to check your price I/O Module, 4DI, 220VAC, RTBAvailability: Out of stockNet price:€82.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddI/O Module, 16DI, Sink, 24VDC, 20pinOut of stock Warranty: €140.00€172.20Login to check your price I/O Module, 16DI, Sink, 24VDC, 20pinAvailability: Out of stockNet price:€140.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddI/O Module, 16DI, Source, 24VDC, 20pinOut of stock Warranty: €140.00€172.20Login to check your price I/O Module, 16DI, Source, 24VDC, 20pinAvailability: Out of stockNet price:€140.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddI/O Module, 8DI, Sink, 24VDC, RTBOut of stock Warranty: €85.00€104.55Login to check your price I/O Module, 8DI, Sink, 24VDC, RTBAvailability: Out of stockNet price:€85.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddI/O Module, 8DI, Source, 24VDC, RTBOut of stock Warranty: €85.00€104.55Login to check your price I/O Module, 8DI, Source, 24VDC, RTBAvailability: Out of stockNet price:€85.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddI/O Module, 4DO, Relay, 230VAC, 24VDC, 2.0A, RTBOut of stock Warranty: €150.00€184.50Login to check your price I/O Module, 4DO, Relay, 230VAC, 24VDC, 2.0A, RTBAvailability: Out of stockNet price:€150.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddI/O Module, 16DO, Sink, 24VDC, 0.3A, 20pinIn stockWarranty: €164.00€201.72Login to check your price I/O Module, 16DO, Sink, 24VDC, 0.3A, 20pinAvailability:In stockNet price:€164.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddI/O Module, 16DO, Source, 24VDC, 0.3A, 20pinOut of stock Warranty: €164.00€201.72Login to check your price I/O Module, 16DO, Source, 24VDC, 0.3A, 20pinAvailability: Out of stockNet price:€164.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddI/O Module, 8DO, Sink, 24VDC, 0.5A, RTBOut of stock Warranty: €92.00€113.16Login to check your price I/O Module, 8DO, Sink, 24VDC, 0.5A, RTBAvailability: Out of stockNet price:€92.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddI/O Module, 8DO, Source, 24VDC, 0.5A, RTBOut of stock Warranty: €92.00€113.16Login to check your price I/O Module, 8DO, Source, 24VDC, 0.5A, RTBAvailability: Out of stockNet price:€92.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddI/O Module, 8AI, 4~20mA, single-ended, 12bit, RTBOut of stock Warranty: €394.00€484.62Login to check your price I/O Module, 8AI, 4~20mA, single-ended, 12bit, RTBAvailability: Out of stockNet price:€394.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddI/O Module, 8AI, 0~10V, single-ended, 12bit, RTBOut of stock Warranty: €394.00€484.62Login to check your price I/O Module, 8AI, 0~10V, single-ended, 12bit, RTBAvailability: Out of stockNet price:€394.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddI/O Module, 4AO, Current, 4~20mA, 12bit, RTBOut of stock Warranty: €384.00€472.32Login to check your price I/O Module, 4AO, Current, 4~20mA, 12bit, RTBAvailability: Out of stockNet price:€384.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddI/O Module, 4AO, Voltage, 0~10V, 12bit, RTBOut of stock Warranty: €384.00€472.32Login to check your price I/O Module, 4AO, Voltage, 0~10V, 12bit, RTBAvailability: Out of stockNet price:€384.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddI/O Module, 2AI, RTD: PT100, JPT100, RTBOut of stock Warranty: €327.00€402.21Login to check your price I/O Module, 2AI, RTD: PT100, JPT100, RTBAvailability: Out of stockNet price:€327.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddI/O Module, 2AI, Thermocouple: 30mV (1uV/bit), RTBOut of stock Warranty: €327.00€402.21Login to check your price I/O Module, 2AI, Thermocouple: 30mV (1uV/bit), RTBAvailability: Out of stockNet price:€327.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddI/O Module, System expansion power supply, 1A (5VDC)Out of stock Warranty: €67.00€82.41Login to check your price I/O Module, System expansion power supply, 1A (5VDC)Availability: Out of stockNet price:€67.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddI/O Module, F. Power Dist., 10A (24/48VDC, 110/220VAC)Out of stock Warranty: €39.00€47.97Login to check your price I/O Module, F. Power Dist., 10A (24/48VDC, 110/220VAC)Availability: Out of stockNet price:€39.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddI/O Module, Potential Dist., 8ch, 0VDCOut of stock Warranty: €39.00€47.97Login to check your price I/O Module, Potential Dist., 8ch, 0VDCAvailability: Out of stockNet price:€39.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddI/O Module, Potential Dist., 8ch, 24VDCOut of stock Warranty: €39.00€47.97Login to check your price I/O Module, Potential Dist., 8ch, 24VDCAvailability: Out of stockNet price:€39.00
Description
The ioLogik 4000 Series is suitable for remote monitoring and alarm systems, such as those used for water treatment systems, water supply systems, wastewater treatment systems, and power monitoring systems. These kinds of applications need more I/O points and a variety of I/O types, including temperature sensors, gas detectors, and water quality detectors, all of which can benefit from the versatile mixture of I/O features supported by the ioLogik 4000 Series.
Slice Form Factor and Flexible I/O Variety
The unique modular construction of the ioLogik 4000 Series allows for mixing and matching of modules to achieve the best combination of I/O modules to meet the needs of a wide range of remote automation applications. An industrial modular housing enables I/O modules to be added to the base unit without a backplane. The ioLogik 4000 Series is perfect for space-limited applications, and high-density I/O points are provided for greater flexibility and expandability. Modules can connect to virtually any type of sensor, including but not limited to those for temperature, pressure, flow, voltage, current, and contact closure.
Easy Maintenance
The ioLogik 4000 Series comes with removable spring-type terminal blocks (RTBs) that allow you to conserve field wiring for future use.
Technical Specification
- Input/Output Interface
| Buttons | Reset button |
- Control Logic
| Language | Click&Go |
- Ethernet Interface
| 10/100BaseT(X) Ports (RJ45 connector) | 2, 2 MAC addresses |
- Ethernet Software Features
| Configuration Options | Windows Utility (Modular-ioAdmin) |
| Industrial Protocols | Modbus TCP Server (Slave), Moxa AOPC (Active Tag), MXIO Library, SNMPv1/v2c, SNMPv1 Trap |
| Management | Modular-ioAdmin |
- DIP Switch Configuration
| Serial Interface | Fixed baudrate |
- Modbus TCP
| Max. No. of Client Connections | 8 |
| Mode | Client (Master) |
- Power Parameters
| No. of Power Inputs | 1 |
- System Power Parameters
| Power Connector | Spring-type Euroblock terminal |
| No. of Power Inputs | 1 |
| Input Voltage | 11 to 28.8 VDC |
| Power Consumption | 175 mA @ 24 VDC |
- Field Power Parameters
| Power Connector | Spring-type Euroblock terminal |
| No. of Power Inputs | 1 |
| Input Voltage | 11 to 28.8 VDC |
| Current in Field Power Contact | 10 A (max.) |
- Physical Characteristics
| Housing | Plastic |
| Dimensions | 45 x 99 x 70 mm (1.77 x 3.90 x 2.76 in) |
| Weight | 180 g (0.396 lb) |
| Installation | DIN-rail mounting |
- Environmental Limits
| Operating Temperature | -10 to 60°C (14 to 140°F) |
| Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Altitude | 2000 m - Please contact Moxa if you require products guaranteed to function properly at higher altitudes. |
- Standards and Certifications
| EMC | EN 61000-6-2/-6-4 |
| EMI | CISPR 22, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF |
| Safety | UL 508 |
| Shock | IEC 60068-2-27 |
| Vibration | IEC 60068-2-6 |
- Declaration
| Green Product | RoHS, CRoHS, WEEE |
- MTBF
| Time | 357,000 hrs |
| Standards | Telcordia SR332 |
