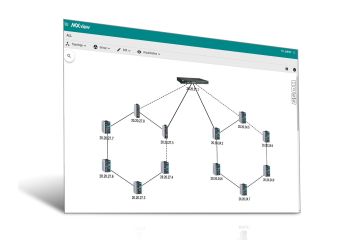

MXview

Moxa’s MXview network management software is designed for configuring, monitoring, and diagnosing networking devices in industrial networks. MXview provides an integrated management platform that can discover networking devices and SNMP/IP devices installed on subnets. All selected network components can be managed via a web browser from both local and remote sites—anytime and anywhere.

Visualization

• Discovers up to 2,000 Moxa devices and SNMP/ICMP devices within scan range
• Visualization of redundant link status and device roles of network redundancy protocols
• Visualization of graphic VLAN groups
• Security view for the security status of network devices with industrial security standard
• Visualization of network traffic loading with color-coded links
• Device front panel visualization, including ports and LED indicators
• Visualization of managed PoE device power consumption
• Wireless dashboard shows relationship between wireless APs and Clients
• Displays third-party device icons
• A network management dashboard to view the network status quickly

Network Diagnostics and Event Notification

• Detect problems in real time with SNMP trap/inform, or periodic polling
• Generate trend graphs to track bandwidth utilization and error packet rate statistics, accurate to four decimal places
• Supports Syslog server for centralized message management
• Configurable event notification alarms sent through email and SNMP trap, or locally through program notification, message box, and audio alerts
• Multiple options for events and notifications with self-defined threshold and duration
• Generate OPC 2.0 compliant tags automatically to integrate with SCADA/HMI applications
• Group health OPC tag represents entire network status
• Real-time device availability monitoring
• Supports third-party devices with MIB compiler and MIB browser
• Collaborate with third-party NMS through SNMP traps
• Provides RESTful API and web widget for integrating MXview into the existing system

Comprehensive Reports

• Maintain device availability reports and record for up to 90 days
• Generate an inventory report for each device on the network
• Compile comprehensive device properties report
• Generate network traffic trend reports

Centralized Configuration and Firmware Management

• Bulk deployment of device configurations and firmware
• In one click, back up the entire MXview database, including topology, job scheduling, events, and device properties
• Scheduling for periodic configuration backup
• Save history of configuration changes
• Comparison tool for checking differences between 2 configurations

Mobile App for Network Monitoring

• MXview ToGo mobile app for remote monitoring and notification—anytime, anywhere
• Smart Device Identification with QR Code enhances operational efficiency
• Device Locator with mobile app reduces searching time at field sites
