1, 2, and 4-port standard serial-to-Ethernet Modbus gateways
Price from €255.00 Net price
If placed an order by 3 p.m., the package will be shipped the same day In stock
Manufacturer: MOXA
- Secure operation modes for Real COM, TCP Server, TCP Client, Pair Connection, Terminal, and Reverse Terminal
- Supports nonstandard baudrates with high precision
- Enhanced remote configuration with HTTPS and SSH
- Port buffers for storing serial data when the Ethernet is offline
- Supports IPv6
- Generic serial commands supported in Command-by-Command mode
- Security features based on IEC 62443
Price from €280.00 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNPort 6150/EU1 port RS-232/422/485 secure device server, 12-48V, w/ adapterIn stockWarranty: €280.00€344.40Login to check your price NPort 6150/EU1 port RS-232/422/485 secure device server, 12-48V, w/ adapterAvailability:In stockNet price:€280.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNPort 6150-T1 Port Terminal Server, 3 in 1, 10/100M Ethernet, 12-48 VDC, -40 to 75°CIn stockWarranty: €340.00€418.20Login to check your price NPort 6150-T1 Port Terminal Server, 3 in 1, 10/100M Ethernet, 12-48 VDC, -40 to 75°CAvailability:In stockNet price:€340.00
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDIN Rail Mounting Kit 35mm, for DE-311/211, NPort 5200/5400, NPort W2250/2150In stockWarranty: €4.00€4.92Login to check your price DIN Rail Mounting Kit 35mm, for DE-311/211, NPort 5200/5400, NPort W2250/2150Availability:In stockNet price:€4.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDB9 Female to Terminal BlockIn stockWarranty: €10.00€12.30Login to check your price DB9 Female to Terminal BlockAvailability:In stockNet price:€10.00
Useful products
5-port entry-level unmanaged Ethernet switches with metal housing
Price from €84.00 Net price
If placed an order by 3 p.m., the package will be shipped the same day In stock
5-port entry-level unmanaged Ethernet switches with plastic housing
Price from €57.00 Net price
If placed an order by 3 p.m., the package will be shipped the same day In stock
Description

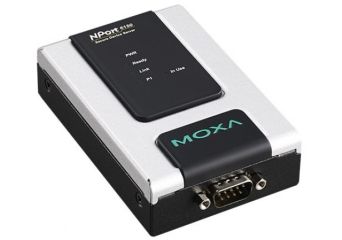

The NPort® 6000 device servers use the SSL and SSH protocols to transmit encrypted serial data over Ethernet. The NPort® 6000’s 3-in-1 serial port supports RS-232, RS-422, and RS-485, with the interface selected from an easy-to-access configuration menu. The NPort® 6000 2-port device servers are available for connecting to a 10/100BaseT(X) copper Ethernet or 100BaseT(X) fiber network. Both single-mode and multi-mode fiber are supported.
Secure Data Transmission
For many applications, guaranteeing secure data transmission is an important concern when connecting serial devices to a network. To answer this concern, the NPort® 6000 supports the SSL and SSH protocols, which work by encrypting data before sending it over the network. With the NPort® 6000, users can rest assured that serial data is transmitted securely over both private and public networks.
Technical Specification
- Ethernet Interface
| 10/100BaseT(X) Ports (RJ45 connector) | 1 Auto MDI/MDI-X connection |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
- Ethernet Software Features
| Configuration Options | Web Console (HTTP/HTTPS), Serial Console, Telnet/SSH Console, Windows Utility |
| Management | ARP, BOOTP, DHCP Client, DNS, HTTP, ICMP, IPv4/IPv6, PPPOE, SMTP, SNMPv1/v2c/v3, SNTP, TCP/IP, Telnet, UDP |
| Windows Real COM Drivers | Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Linux Real TTY Drivers | Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x |
| Fixed TTY Drivers | SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6.x, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X |
| Android API | Android 3.1.x and later |
| MIB | MIB-II |
| Time Management | SNTP Client |
| Unicast Routing | RIPV1/V2, Static Route |
| Authentication | Local Account Accessibility, RADIUS, TACACS+ |
- Serial Interface
| Connector | DB9 male |
| No. of Ports | 1 |
| Serial Standards | RS-232, RS-422, RS-485 |
| Secure Operation Modes | Reverse SSH, Secure Pair Connection, Secure Real COM, Secure TCP Client, Secure TCP Server, SSH |
| Standard Operation Modes | Disabled, Ethernet Modem, Pair Connection, PPP, Printer, Real COM, Reverse Telnet, RFC2217, TCP Client, TCP Server, Terminal, UDP |
| Baudrate | 50 bps to 921.6 kbps (supports non-standard baudrates) |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Flow Control | RTS/CTS, DTR/DSR, XON/XOFF |
| Parity | None, Even, Odd, Space, Mark |
| Pull High/Low Resistor for RS-485 | 1 kilo-ohm, 150 kilo-ohms |
| RS-485 Data Direction Control | ADDC® (automatic data direction control) |
| Terminator for RS-485 | 120 ohms |
- Serial Signals
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
- Power Parameters
| Input Current | 12-48 Vdc, 285 mA |
| Input Voltage | 12 to 48 VDC |
- Reliability
| Automatic Reboot Trigger | Built-in WDT |
| Alert Tools | Built-in buzzer and RTC (real-time clock) |
- Physical Characteristics
| Housing | Metal |
| Dimensions (with ears) | 90 x 100.4 x 29 mm (3.54 x 3.95 x 1.1 in) |
| Dimensions (without ears) | 67 x 100.4 x 29 mm (2.64 x 3.95 x 1.1 in) |
| Weight | 190 g (0.42 lb) |
| Installation | Desktop, DIN-rail mounting (with optional kit), Wall mounting |
- Environmental Limits
| Operating Temperature | Standard Models: 0 to 55°C (32 to 131°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature (package included) | -40 to 75°C (-40 to 167°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
- Standards and Certifications
| EMC | EN 55032/35 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV(AC), 0.5 kV(DC); Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 1 kV(AC), 0.5 kV(DC); Signal: 1 kV IEC 61000-4-6 CS: 3 V IEC 61000-4-8 PFMF IEC 61000-4-11 |
| Traffic Control | NEMA TS2 |
| Vibration | IEC 60068-2-6 |
| Freefall | IEC 60068-2-34 |
| Safety | UL 60950-1, UL 62368-1 |
- Declaration
| Green Product | RoHS, CRoHS, WEEE |
- MTBF
| Time | 1,934,102 hrs |
| Standards | Telcordia (Bellcore) Standard TR/SR |
