Recommended
Remote connection management platform for secure remote access
Price from €724.00 Net price
If placed an order by 3 p.m., the package will be shipped the same day In stock
Manufacturer: MOXA
- 10/100BaseT(X) auto-negotiation and auto-MDI/MDI-X
- Link Fault Pass-Through (LFPT)
- Power failure alarm by relay output (LV model only)
- -40 to 85°C operating temperature range
- Redundant dual DC power inputs (LV model only)
- Integrated high-reliability power supply eliminates the need for external power transformer
Price from €568.00 Net price
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Models
Filter: ()
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPTC-101-M-SC-LVIndustrial 10/100BaseT(X) to 100BaseFX media converter, multi-mode with SC connector, dual redundant power inputs (20-70 VDC), -40 to 85°C operating temperatureOut of stock Warranty: €568.00€698.64Login to check your price PTC-101-M-SC-LVIndustrial 10/100BaseT(X) to 100BaseFX media converter, multi-mode with SC connector, dual redundant power inputs (20-70 VDC), -40 to 85°C operating temperatureAvailability: Out of stockNet price:€568.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPTC-101-M-SC-HVIndustrial 10/100BaseT(X) to 100BaseFX media converter, multi-mode with SC connector, 1 isolated power supply (88-300 VDC or 85-264 VAC), -40 to 85°C operating temperatureOut of stock Warranty: €568.00€698.64Login to check your price PTC-101-M-SC-HVIndustrial 10/100BaseT(X) to 100BaseFX media converter, multi-mode with SC connector, 1 isolated power supply (88-300 VDC or 85-264 VAC), -40 to 85°C operating temperatureAvailability: Out of stockNet price:€568.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPTC-101-M-LC-LVIndustrial 10/100BaseT(X) to 100BaseFX media converter, multi-mode with LC connector, dual redundant power inputs (20-70 VDC), -40 to 85°C operating temperatureOut of stock Warranty: €568.00€698.64Login to check your price PTC-101-M-LC-LVIndustrial 10/100BaseT(X) to 100BaseFX media converter, multi-mode with LC connector, dual redundant power inputs (20-70 VDC), -40 to 85°C operating temperatureAvailability: Out of stockNet price:€568.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPTC-101-M-LC-HVIndustrial 10/100BaseT(X) to 100BaseFX media converter, multi-mode with LC connector, 1 isolated power supply (88-300 VDC or 85-264 VAC), -40 to 85°C operating temperatureOut of stock Warranty: €568.00€698.64Login to check your price PTC-101-M-LC-HVIndustrial 10/100BaseT(X) to 100BaseFX media converter, multi-mode with LC connector, 1 isolated power supply (88-300 VDC or 85-264 VAC), -40 to 85°C operating temperatureAvailability: Out of stockNet price:€568.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPTC-101-M-ST-LVIndustrial 10/100BaseT(X) to 100BaseFX media converter, multi-mode with ST connector, dual redundant power inputs (20-70 VDC), -40 to 85°C operating temperatureOut of stock Warranty: €568.00€698.64Login to check your price PTC-101-M-ST-LVIndustrial 10/100BaseT(X) to 100BaseFX media converter, multi-mode with ST connector, dual redundant power inputs (20-70 VDC), -40 to 85°C operating temperatureAvailability: Out of stockNet price:€568.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPTC-101-M-ST-HVIndustrial 10/100BaseT(X) to 100BaseFX media converter, multi-mode with ST connector, 1 isolated power supply (88-300 VDC or 85-264 VAC), -40 to 85°C operating temperatureOut of stock Warranty: €568.00€698.64Login to check your price PTC-101-M-ST-HVIndustrial 10/100BaseT(X) to 100BaseFX media converter, multi-mode with ST connector, 1 isolated power supply (88-300 VDC or 85-264 VAC), -40 to 85°C operating temperatureAvailability: Out of stockNet price:€568.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPTC-101-S-SC-LVIndustrial 10/100BaseT(X) to 100BaseFX media converter, single-mode with SC connector, dual redundant power inputs (20-70 VDC), -40 to 85°C operating temperatureOut of stock Warranty: €787.00€968.01Login to check your price PTC-101-S-SC-LVIndustrial 10/100BaseT(X) to 100BaseFX media converter, single-mode with SC connector, dual redundant power inputs (20-70 VDC), -40 to 85°C operating temperatureAvailability: Out of stockNet price:€787.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPTC-101-S-SC-HVIndustrial 10/100BaseT(X) to 100BaseFX media converter, single-mode with SC connector, 1 isolated power supply (88-300 VDC or 85-264 VAC), -40 to 85°C operating temperatureOut of stock Warranty: €787.00€968.01Login to check your price PTC-101-S-SC-HVIndustrial 10/100BaseT(X) to 100BaseFX media converter, single-mode with SC connector, 1 isolated power supply (88-300 VDC or 85-264 VAC), -40 to 85°C operating temperatureAvailability: Out of stockNet price:€787.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPTC-101-S-LC-LVIndustrial 10/100BaseT(X) to 100BaseFX media converter, single-mode with LC connector, dual redundant power inputs (20-70 VDC), -40 to 85°C operating temperatureOut of stock Warranty: €787.00€968.01Login to check your price PTC-101-S-LC-LVIndustrial 10/100BaseT(X) to 100BaseFX media converter, single-mode with LC connector, dual redundant power inputs (20-70 VDC), -40 to 85°C operating temperatureAvailability: Out of stockNet price:€787.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPTC-101-S-LC-HVIndustrial 10/100BaseT(X) to 100BaseFX media converter, single-mode with LC connector, 1 isolated power supply (88-300 VDC or 85-264 VAC), -40 to 85°C operating temperatureOut of stock Warranty: €787.00€968.01Login to check your price PTC-101-S-LC-HVIndustrial 10/100BaseT(X) to 100BaseFX media converter, single-mode with LC connector, 1 isolated power supply (88-300 VDC or 85-264 VAC), -40 to 85°C operating temperatureAvailability: Out of stockNet price:€787.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPTC-101-S-ST-LVIndustrial 10/100BaseT(X) to 100BaseFX media converter, single-mode with ST connector, dual redundant power inputs (20-70 VDC), -40 to 85°C operating temperatureOut of stock Warranty: €787.00€968.01Login to check your price PTC-101-S-ST-LVIndustrial 10/100BaseT(X) to 100BaseFX media converter, single-mode with ST connector, dual redundant power inputs (20-70 VDC), -40 to 85°C operating temperatureAvailability: Out of stockNet price:€787.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPTC-101-S-ST-HVIndustrial 10/100BaseT(X) to 100BaseFX media converter, single-mode with ST connector, 1 isolated power supply (88-300 VDC or 85-264 VAC), -40 to 85°C operating temperatureOut of stock Warranty: €787.00€968.01Login to check your price PTC-101-S-ST-HVIndustrial 10/100BaseT(X) to 100BaseFX media converter, single-mode with ST connector, 1 isolated power supply (88-300 VDC or 85-264 VAC), -40 to 85°C operating temperatureAvailability: Out of stockNet price:€787.00
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDIN rail power supply 30W 24V 1.5AIn stockWarranty: €13.40€16.48Login to check your price DIN rail power supply 30W 24V 1.5AAvailability:In stockNet price:€13.40
Description

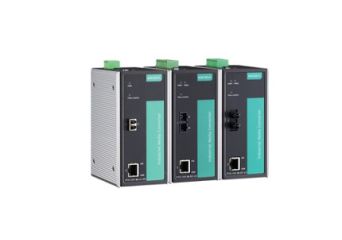

The PTC-101 Ethernet-to-fiber media converters convert from 10/100BaseT(X) to 100BaseFX. Models are available with either SC, ST, or LC connectors. The PTC-101 converters eliminate the need for additional wiring, and support IEEE 802.3 and IEEE 802.3u/x protocols with 10/100M, full/half-duplex, and MDI/MDI-X auto-sensing to provide a total solution for your industrial Ethernet networks. The PTC-101 is compliant with mandatory sections of IEC 61850-3, covering operating temperature, power input voltage, surge, ESD, and vibration, as well as conformal coating and power insulation, making the media converters suitable for a variety of industrial applications.
Technical Specification
- Ethernet Interface
| 10/100BaseT(X) Ports (RJ45 connector) | 1 |
| 100BaseFX Ports (multi-mode SC connector) | PTC-101-M-SC-HV/M-SC-LV: 1 |
| 100BaseFX Ports (multi-mode ST connector) | PTC-101-M-ST-HV/M-ST-LV: 1 |
| 100BaseFX Ports (single-mode SC connector) | PTC-101-S-SC-HV/S-SC-LV: 1 |
| 100BaseFX Ports (single-mode ST connector) | PTC-101-S-ST-HV/S-ST-LV: 1 |
| 100BaseFX Ports (multi-mode LC connector) | PTC-101-M-LC-HV/M-LC-LV: 1 |
| 100BaseFX Ports (single-mode LC connector) | PTC-101-S-LC-HV/S-LC-LV: 1 |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| Optical Fiber |  |
- Power Parameters
| Input Voltage | LV-DC models: 20 to 72 VDC HV-AC models: 100 to 240 VAC HV-DC models: 88 to 300 VDC |
| Input Current | LV-DC models: 150 mA @ 20 to 72 VDC HV-AC models: 200 to 350 mA @ 100 to 240 VAC HV-DC models: 47 mA @ 88 VDC |
| Overload Current Protection | Supported |
| Power Consumption | LV-DC models: 150 mA @ 20 to 72 VDC HV-AC models: 200 to 350 mA @ 100 to 240 VAC HV-DC models: 47 mA @ 88 VDC |
- Physical Characteristics
| Housing | Metal |
| Dimensions | 152.15 x 126.46 x 66.65 mm (5.99 x 4.86 x 2.62 in) |
| Weight | Packaged: 875 g (1.92 lb) Product only: 690 g (1.52 lb) |
| Installation | DIN-rail mounting |
- Environmental Limits
| Operating Temperature | -40 to 85°C (-40 to 185°F) |
| Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
- Standards and Certifications
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m IEC 61000-4-8 PFMF IEC 61000-4-11 |
| Environmental Testing | IEC 60068-2-1 IEC 60068-2-14 IEC 60068-2-2 IEC 60068-2-3 |
| Safety | EN 60950-1, UL 60950-1 |
| Vibration | IEC 60068-2-6 |
| Power Substation | IEC 61850-3 |
- MTBF
| Time | 1,211,613 hrs |
| Standards | MIL-HDBK-217F |
