TN-5916

EN 50155 16-port NAT router

Designed for rolling stock backbone networks
Dual bypass relay
Isolated power input range from 24 to 110 VDC
Complies with all EN 50155 mandatory test items
-40 to 75°C operating temperature range
Turbo Ring and RSTP/STP for network redundancy

In stock

Place the order by 12:00, the package will be shipped on the same day

Free shipping from €300

See 2 models

Promocja cenowa na model HDR-15-5

Product intended for professional use only

Models
Description
Technical Specification
Download
Recommended Products

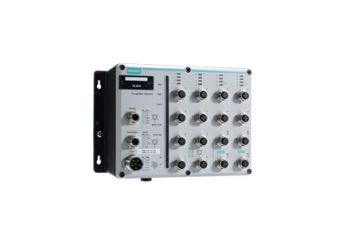

TN-5916

Models

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
TN-5916-WV-CT-T Industrial NAT Router with 16 10/100BaseT(X) ports, 4 of 10/100BaseT(X) ports with Relay bypass function, WV power Input, Comformal coating, -40 to 75°C operating temperature	Out of stock	Warranty:

TN-5916-WV-CT-T

Industrial NAT Router with 16 10/100BaseT(X) ports, 4 of 10/100BaseT(X) ports with Relay bypass function, WV power Input, Comformal coating, -40 to 75°C operating temperature

Availability: Out of stock

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
TN-5916-WV-T Industrial NAT Router with 16 10/100BaseT(X) ports, 4 of 10/100BaseT(X) ports with Relay bypass function, WV power Input, Comformal coating, -40 to 75°C operating temperature	In stock	Warranty:

TN-5916-WV-T

Industrial NAT Router with 16 10/100BaseT(X) ports, 4 of 10/100BaseT(X) ports with Relay bypass function, WV power Input, Comformal coating, -40 to 75°C operating temperature

Availability:

In stock

Description

The ToughNet TN-5900 Series, designed for rolling stock backbone networks, are high-performance M12 routers with four bypass relay backbone ports. They support NAT and routing functionality to facilitate the deployment of applications across networks. The TN-5900 Series routers use M12 and other circular connectors to ensure tight, robust connections that guarantee reliability against environmental disturbances, such as vibration and shock.

The TN-5900 Series routers provide a wide power input range of 24 to 110 VDC. TN-5900 Series switches operate in an extended operating temperature range of -40 to 75°C and are compliant with the mandatory requirements of EN 50155/50121-4, making them suitable for a variety of industrial applications.

Additional Features and Benefits

Routing functionality to divide a large network into hierarchical subnets and allow data and information to communicate across networks
NAT makes IP management easier, since end devices in different carriages can use the same IP addresses
Leading EN 50155 Ethernet router for rolling stock applications
Turbo Ring and RSTP/STP for network redundancy
IGMP V1/V2 snooping for filtering multicast traffic
IEEE 802.1Q VLAN to ease network planning
QoS (IEEE 802.1p/1Q and TOS/DiffServ) to improve reliability
Panel mounting or DIN-rail mounting installation capability
SNMPv3, HTTPS, and SSH to enhance network security
SNMP v1/v2c/v3 for different levels of network management
Port mirroring for online debugging
Automatic warning by exception through email and relay output
Line-swap fast recovery
Automatic recovery of connected device’s IP addresses
LLDP for automatic topology discovery in network management software
Configurable by web browser, Telnet/serial console, and CLI Windows utility

Technical Specification

Input/Output Interface

Alarm Contact Channels

2 x relay output in one M12 A-coded 5-pin male connector with current carrying capacity of 1 A @ 30 VDC

Ethernet Interface

10/100BaseT(X) Ports (M12 D-coded 4-pin female connector)	12
10/100BaseT(X) Ports (M12 D-coded 4-pin female connector with bypass relay)	4
Standards	IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN Tagging IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.3 for 10BaseT IEEE 802.3ad for Static Port Trunk IEEE 802.3u for 100BaseT(X) IEEE 802.3x for flow control

Ethernet Software Features

Configuration Options	Command Line Interface (CLI), Command Line Interface (CLI) through Serial/Telnet/SSH, Web Browser (HTTP/HTTPS), Windows Utility
Filter	802.1Q, IGMP v1/v2, Static Multicast
Management	Back Pressure Flow Control, DHCP server, Flow control, HTTP, IPv4, LLDP, Port Mirror, QoS/CoS/ToS, RARP, SMTP, SNMP Inform, SNMP Trap, SNMPv1/v2c/v3, Syslog, Telnet, TFTP, Account Management
MIB	RFC1213
Redundancy Protocols	Link Aggregation, RSTP, Static Port Trunk, STP, Turbo Ring v2
Routing Redundancy	VRRP
Security	Broadcast storm protection Not supported in FW v1.2. , HTTPS/SSL, Local Account Accessibility, TACACS+ Not supported in FW v1.2. , Port Lock, SSH
Time Management	NTP Server/Client, SNTP
Unicast Routing	Static Route, RIPV1/V2

Switch Properties

IGMP Groups	256
MAC Table Size	8 K
Max. No. of VLANs	16
VLAN ID Range	VID 1 to 4094

LED Interface

LED Indicators

STATE, PWR1, PWR2, FAULT, 10/100M

Features

1-to-1, N-to-1, Port forwarding

Serial Interface

Console Port

M12 A-coded male connector

Power Parameters

Input Current	0.85 A @ 24 VDC, 0.17 A @ 110 VDC
Input Voltage	24/36/48/72/96/110 VDC, Redundant dual inputs, No. of power inputs: 2
Operating Voltage	16.8 to 137.5 VDC
Overload Current Protection	Supported
Power Connector	M23 connector
Reverse Polarity Protection	Supported

Physical Characteristics

Housing	Metal
IP Rating	IP54
Dimensions	250 x 175.8 x 116.3 mm (9.84 x 6.92 x 4.58 in)
Weight	4,030 g (8.88 lb)
Installation	DIN-rail mounting (optional), Wall mounting
Protection	TN-5916-WV-CT-T: PCB conformal coating

Environmental Limits

Operating Temperature	-40 to 75°C (-40 to 167°F)
Storage Temperature (package included)	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
Altitude	2000 m

Standards and Certifications

EMC	EN 55032/24
EMS	IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
Freefall	IEC 60068-2-31
Radio Frequency	FCC
Railway	EN 50121-4, EN 50155, IEC 60571
Railway Fire Protection	EN 45545-2
Safety	IEC 60950-1, UL 61010-2-201
Shock	IEC 60068-2-27, IEC 61373, EN 50155
Vibration	IEC 60068-2-64, IEC 61373, EN 50155

Declaration

Green Product

RoHS, CRoHS, WEEE

MTBF

Time	556,025 hrs
Standards	Telcordia SR332
