Also check out the smaller and cheaper EDS-2008-ELP, available in our stock! The EDS-2008-ELP is an 8-port unmanaged Ethernet switch. More details here. NOTE: EDS-208 is covered with special discount conditions. Only a 3% discount for proforma/online payments and a 3% discount for purchases through our online store is applied to the list price. |
Manufacturer: MOXA
- 10/100BaseT(X) (RJ45 connector), 100BaseFX (multi-mode, SC/ST connectors)
- IEEE802.3/802.3u/802.3x support
- Broadcast storm protection
- DIN-rail mounting ability
- -10 to 60°C operating temperature range
Price from €104.00 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEDS-208Entry-level Unmanaged Ethernet Switch with 8 10/100BaseT(X) ports, -10 to 60°CIn stockWarranty: €104.00€127.92Login to check your price EDS-208Entry-level Unmanaged Ethernet Switch with 8 10/100BaseT(X) ports, -10 to 60°CAvailability:In stockNet price:€104.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEDS-208-M-SCEntry-level Unmanaged Ethernet Switch with 7 10/100BaseT(X) ports, 1 multi mode 100BaseFX port, SC connector, -10 to 60°CIn stockWarranty: €250.00€307.50Login to check your price EDS-208-M-SCEntry-level Unmanaged Ethernet Switch with 7 10/100BaseT(X) ports, 1 multi mode 100BaseFX port, SC connector, -10 to 60°CAvailability:In stockNet price:€250.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEDS-208-M-STEntry-level Unmanaged Ethernet Switch with 7 10/100BaseT(X) ports, 1 multi mode 100BaseFX port, ST connector, -10 to 60°COut of stock Warranty: €250.00€307.50Login to check your price EDS-208-M-STEntry-level Unmanaged Ethernet Switch with 7 10/100BaseT(X) ports, 1 multi mode 100BaseFX port, ST connector, -10 to 60°CAvailability: Out of stockNet price:€250.00
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDIN rail power supply 15W 24V 0.63AIn stockWarranty: €11.00€13.53Login to check your price DIN rail power supply 15W 24V 0.63AAvailability:In stockNet price:€11.00
Description

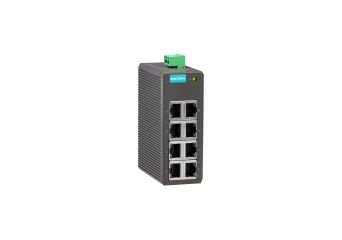

The EDS-208 Series supports IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDI/MDIX auto-sensing RJ45 ports. The EDS-208 Series is rated to operate at temperatures ranging from -10 to 60°C, and is rugged enough for any harsh industrial environment. The switches can be easily installed on a DIN rail as well as in distribution boxes. The DIN-rail mounting capability, wide operating temperature capability, and the IP30 housing with LED indicators make the plug-and-play EDS-208 switches easy to use and reliable.
Technical Specification
- Ethernet Interface
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control |
| 10/100BaseT(X) Ports (RJ45 connector) | Auto MDI/MDI-X connection Full/Half duplex mode |
| 100BaseFX Ports (multi-mode SC connector) | EDS-208-M-SC: Supported |
| 100BaseFX Ports (multi-mode ST connector) | EDS-208-M-ST: Supported |
- Switch Properties
| Processing Type | Store and Forward |
| MAC Table Size | 2 K |
| Packet Buffer Size | 768 kbits |
- Power Parameters
| Input Voltage | 24 VDC |
| Input Current | EDS-208: 0.07 A @ 24 VDC EDS-208-M Series: 0.1 A @ 24 VDC |
| Operating Voltage | 12 to 48 VDC |
| Connection | 1 removable 3-contact terminal block(s) |
| Overload Current Protection | 2.5 A @ 24 VDC |
| Reverse Polarity Protection | Supported |
- Physical Characteristics
| Housing | Plastic |
| IP Rating | IP30 |
| Dimensions | 40 x 100 x 86.5 mm (1.57 x 3.94 x 3.41 in) |
| Weight | 170 g (0.38 lb) |
| Installation | DIN-rail mounting |
- Environmental Limits
| Operating Temperature | -10 to 60°C (14 to 140°F) |
| Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
- Standards and Certifications
| Safety | UL 508 |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV IEC 61000-4-6 CS: 3 V IEC 61000-4-8 PFMF |
| Shock | IEC 60068-2-27 |
| Vibration | IEC 60068-2-6 |
| Freefall | IEC 60068-2-31 |
- MTBF
| Time | EDS-208: 401,624 hrs EDS-208-M Series: 368,353 hrs |
| Standards | Telcordia (Bellcore), GB |
