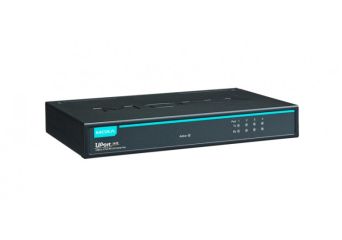

UPort 1410

4-port RS-232 USB-to-serial converters

Manufacturer: MOXA
Manufacturer: MOXA
  • Hi-Speed USB 2.0 for up to 480 Mbps USB data transmission rates
  • 921.6 kbps maximum baudrate for fast data transmission
  • Drivers provided for Windows, WinCE, and Linux
  • Mini-DB9-female-to-terminal-block adapter for easy wiring
  • LEDs for indicating USB and TxD/RxD activity
Price from €234.00 Net price

High price? Log in and buy cheaper

Product out of stock

Free shipping from €300

See 1 model

Promocja cenowa na model HDR-15-5


  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    UPort 1410
    4 Port USB-to-Serial Hub, RS-232
    Out of stock Warranty:
    Login to check your price
    UPort 1410
    4 Port USB-to-Serial Hub, RS-232
    Availability: Out of stock
    Net price:


The UPort® 1410 Series of USB-to-serial converters is the perfect accessory for laptop or workstation computers that do not have a serial port. They are essential for engineers who need to connect different serial devices in the field or separate interface converters for devices without a standard COM port or DB9 connector.

The UPort® 1410 Series converts from USB to RS-232. All products are compatible with legacy serial devices, and can be used with instrumentation and point-of-sale applications.

Technical Specification

  • USB Interface
Speed 12 Mbps, 480 Mbps
USB Connector USB Type B
USB Standards USB 1.1/2.0 compliant
  • Serial Interface
No. of Ports 4
Connector DB9 male
Baudrate 50 bps to 921.6 kbps
Data Bits 5, 6, 7, 8
Stop Bits 1, 1.5, 2
Parity None, Even, Odd, Space, Mark
Flow Control None, RTS/CTS, XON/XOFF
Serial Standards RS-232
  • Serial Signals
RS-422 Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w Data+, Data-, GND
  • Power Parameters
Input Voltage 5 V for USB port power, 12 V for external power adapter
Input Current 260 mA @ 12 VDC
  • Physical Characteristics
Housing Metal
Dimensions 204 x 30 x 125 mm (8.03 x 1.18 x 4.92 in)
Weight 720 g (1.59 lb)
  • Environmental Limits
Operating Temperature 0 to 55°C (32 to 131°F)
Storage Temperature (package included) -20 to 75°C (-4 to 167°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
  • Standards and Certifications
EMC EN 55032/24
EMI CISPR 32, FCC Part 15B Class 1
EMS IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV
IEC 61000-4-5 Surge: Power: 1 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m
IEC 61000-4-8 PFMF
Safety UL 60950-1
  • Declaration
Green Product RoHS, CRoHS, WEEE
  • MTBF
Time 394,441 hrs
Standards Telcordia (Bellcore) Standard
