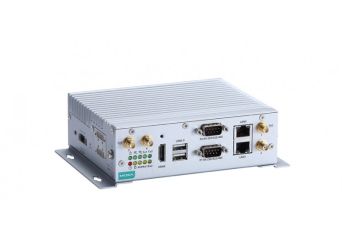

main product photo

V2201

Intel® Atom® E3800 DIN-rail computer with 2 mini PCIe expansion slots for wireless

  • Intel Atom® E3800 Series processor with three performance options
  • Dual mini-PCIe sockets for wireless modules, supports Wi-Fi, 3G, LTE, and GPS
  • -40 to 85°C system operating temperature (-40 to 70°C with LTE module installed)
  • Variety of interfaces: 2 serial ports, 2 Ethernet LAN ports, 4 DIs, 4 DOs, SD, USB, HDMI, wireless
  • EN 61000-6-2 and EN 61000-6-4 certification  ; meets EMC standard for heavy industry
  • Up to 5 Grms anti-vibration protection and 100 g/11 ms anti-shock protection
  • Ready-to-run Debian 9, Windows Embedded Standard 7, and Windows 10 Embedded IoT Enterprise 2016 LTSB platforms
  • Moxa Proactive Monitoring utility for system hardware health monitoring
  • Moxa Smart Recovery utility to recover system from boot failure (W7E only)
Product out of stock

Free shipping from €300

See 9 models

Promocja cenowa na model HDR-15-5

Product intended for professional use only
Komputer przemysłowy IoT x86 firmy Moxa

V2201

Models

  • ModelAvailabilityWarrantyWishlist
    Your Price
    		Your Price
    V2201-E1-T
    (CTO Model) Intel Atom E3815, HDMI, 2 LANs, 2 serial ports, 4 DIs, 4 DOs, 1 USB 3.0 port, 2 USB 2.0 ports, 1 SD socket, 1 uSIM socket, 2 mini-PCIe sockets, -40 to 85°C
    		 Out of stock Warranty:
    V2201-E1-T
    (CTO Model) Intel Atom E3815, HDMI, 2 LANs, 2 serial ports, 4 DIs, 4 DOs, 1 USB 3.0 port, 2 USB 2.0 ports, 1 SD socket, 1 uSIM socket, 2 mini-PCIe sockets, -40 to 85°C
    Availability: Out of stock
    -
  • ModelAvailabilityWarrantyWishlist
    Your Price
    		Your Price
    V2201-E2-T
    (CTO Model) Intel Atom E3826, HDMI, 2 LANs, 2 serial ports, 4 DIs, 4 DOs, 1 USB 3.0 port, 2 USB 2.0 ports, 1 SD socket, 1 uSIM socket, 2 mini-PCIe sockets, -40 to 85°C
    		 Out of stock Warranty:
    V2201-E2-T
    (CTO Model) Intel Atom E3826, HDMI, 2 LANs, 2 serial ports, 4 DIs, 4 DOs, 1 USB 3.0 port, 2 USB 2.0 ports, 1 SD socket, 1 uSIM socket, 2 mini-PCIe sockets, -40 to 85°C
    Availability: Out of stock
    -
  • ModelAvailabilityWarrantyWishlist
    Your Price
    		Your Price
    V2201-E4-T
    (CTO Model) Intel Atom E3845, HDMI, 2 LANs, 2 serial ports, 4 DIs, 4 DOs, 1 USB 3.0 port, 2 USB 2.0 ports, 1 SD socket, 1 uSIM socket, 2 mini-PCIe sockets, -40 to 70°C
    		 Out of stock Warranty:
    V2201-E4-T
    (CTO Model) Intel Atom E3845, HDMI, 2 LANs, 2 serial ports, 4 DIs, 4 DOs, 1 USB 3.0 port, 2 USB 2.0 ports, 1 SD socket, 1 uSIM socket, 2 mini-PCIe sockets, -40 to 70°C
    Availability: Out of stock
    -
  • ModelAvailabilityWarrantyWishlist
    Your Price
    		Your Price
    V2201-E1-W-T
    (CTO Model) Intel Atom E3815, HDMI,2 LANs,2 serial ports,4 DIs,4 DOs, 1 USB 3.0, 2 USB 2.0 , 1 SD socket, 1 uSIM socket,2 mini-PCIe sockets,5 wireless SMA connectors,-40 to 85°C(with Moxa recommended wireless modules(3G/LTE + Wi-Fi) installed,-40 to 70°C)
    		 Out of stock Warranty:
    V2201-E1-W-T
    (CTO Model) Intel Atom E3815, HDMI,2 LANs,2 serial ports,4 DIs,4 DOs, 1 USB 3.0, 2 USB 2.0 , 1 SD socket, 1 uSIM socket,2 mini-PCIe sockets,5 wireless SMA connectors,-40 to 85°C(with Moxa recommended wireless modules(3G/LTE + Wi-Fi) installed,-40 to 70°C)
    Availability: Out of stock
    -
  • ModelAvailabilityWarrantyWishlist
    Your Price
    		Your Price
    V2201-E2-W-T
    (CTO Model) Intel Atom E3826, HDMI,2 LANs,2 serial ports,4 DIs,4 DOs, 1 USB 3.0, 2 USB 2.0 , 1 SD socket, 1 uSIM socket,2 mini-PCIe sockets,5 wireless SMA connectors,-40 to 85°C(with Moxa recommended wireless modules(3G/LTE + Wi-Fi) installed,-40 to 70°C)
    		 Out of stock Warranty:
    V2201-E2-W-T
    (CTO Model) Intel Atom E3826, HDMI,2 LANs,2 serial ports,4 DIs,4 DOs, 1 USB 3.0, 2 USB 2.0 , 1 SD socket, 1 uSIM socket,2 mini-PCIe sockets,5 wireless SMA connectors,-40 to 85°C(with Moxa recommended wireless modules(3G/LTE + Wi-Fi) installed,-40 to 70°C)
    Availability: Out of stock
    -
  • ModelAvailabilityWarrantyWishlist
    Your Price
    		Your Price
    V2201-E4-W-T
    (CTO Model) Intel Atom E3845, HDMI, 2 LANs, 2 serial ports, 4 DIs, 4 DOs, 1 USB 3.0, 2 USB 2.0, 1 SD socket, 1 uSIM socket, 2 mini-PCIe sockets, 5 wireless SMA connectors, -40 to 70°C with Moxa recommended wireless modules (3G/LTE + Wi-Fi) installed
    		 Out of stock Warranty:
    V2201-E4-W-T
    (CTO Model) Intel Atom E3845, HDMI, 2 LANs, 2 serial ports, 4 DIs, 4 DOs, 1 USB 3.0, 2 USB 2.0, 1 SD socket, 1 uSIM socket, 2 mini-PCIe sockets, 5 wireless SMA connectors, -40 to 70°C with Moxa recommended wireless modules (3G/LTE + Wi-Fi) installed
    Availability: Out of stock
    -
  • ModelAvailabilityWarrantyWishlist
    Your Price
    		Your Price
    V2201-E1-T-W7E
    (Pre-Configured Model) Intel Atom E3815, HDMI, 2 LANs, 2 serial ports, 4 DIs, 4 DOs, 1 USB 3.0 port, 2 USB 2.0 ports, 1 SD socket, 1 uSIM socket, 2 mini-PCIe sockets, -40 to 85°C, Windows Embedded Standard 7 pre-installed
    		 Out of stock Warranty:
    V2201-E1-T-W7E
    (Pre-Configured Model) Intel Atom E3815, HDMI, 2 LANs, 2 serial ports, 4 DIs, 4 DOs, 1 USB 3.0 port, 2 USB 2.0 ports, 1 SD socket, 1 uSIM socket, 2 mini-PCIe sockets, -40 to 85°C, Windows Embedded Standard 7 pre-installed
    Availability: Out of stock
    -
  • ModelAvailabilityWarrantyWishlist
    Your Price
    		Your Price
    V2201-E1-T-LX
    (Pre-Configured Model) Intel Atom E3815, HDMI, 2 LANs, 2 serial ports, 4 DIs, 4 DOs, 1 USB 3.0 port, 2 USB 2.0 ports, 1 SD socket, 1 uSIM socket, 2 mini-PCIe sockets, -40 to 85°C, Linux Debian 8 pre-installed
    		 Out of stock Warranty:
    V2201-E1-T-LX
    (Pre-Configured Model) Intel Atom E3815, HDMI, 2 LANs, 2 serial ports, 4 DIs, 4 DOs, 1 USB 3.0 port, 2 USB 2.0 ports, 1 SD socket, 1 uSIM socket, 2 mini-PCIe sockets, -40 to 85°C, Linux Debian 8 pre-installed
    Availability: Out of stock
    -
  • ModelAvailabilityWarrantyWishlist
    Your Price
    		Your Price
    V2201-E4-W-T-LX
    (Pre-Configured Model)x86 ready-to-run embedded computer with Intel Atom E3845, HDMI, 2 LANs, 2 serial ports, 4 DIs, 4 DOs, 1 USB 3.0 port, 2 USB 2.0 ports, 1 SD socket, 1 uSIM socket, 1 Wi-Fi mini-PCIe (4GB RAM, 32GB mSATA, 16GB SD, DIN-rail mount kit)
    		 Out of stock Warranty:
    V2201-E4-W-T-LX
    (Pre-Configured Model)x86 ready-to-run embedded computer with Intel Atom E3845, HDMI, 2 LANs, 2 serial ports, 4 DIs, 4 DOs, 1 USB 3.0 port, 2 USB 2.0 ports, 1 SD socket, 1 uSIM socket, 1 Wi-Fi mini-PCIe (4GB RAM, 32GB mSATA, 16GB SD, DIN-rail mount kit)
    Availability: Out of stock
    -

Accessories

  • ModelAvailabilityWarrantyWishlist
    Your Price
    		Your Price
    UC-8100 LTE-CAT4-EU
    Telit LE910C4-EU LTE Cat. 4 mini card for the EMEA region
    		 Out of stock Warranty:
    €0.00
    -
    		-
    UC-8100 LTE-CAT4-EU
    Telit LE910C4-EU LTE Cat. 4 mini card for the EMEA region
    Availability: Out of stock
    Net price:
    -
    -

Description

The V2201 Series ultra-compact x86 embedded computer is based on the Intel® Atom™ E3800 Series processor, features the most reliable I/O design to maximize connectivity, and supports dual wireless modules, making it suitable for a diverse range of communication applications.  The computer’s thermal design ensures reliable system operation in temperatures ranging from -40 to 85°C (-40 to 70°C with a special purpose Moxa wireless module installed). The V2201 Series supports “Moxa Hardware Monitoring” for device I/O status monitoring and alerts, system temperature monitoring and alerts, and system power management. Monitoring system status closely makes it easier to recover from errors and provides the most reliable platform for your applications.

Applications

  • Remote Terminal Unit (RTU)
  • Data acquisition
  • M2M communication (smart gateway)
  • Digital signage
  • Factory automation
  • In-vehicle monitor/data logger (transportation)
  • Programmable router
  • Energy usage optimization
  • Predictive maintenance
  • Asset management

Technical Specification

  • Computer
CPU V2201-E1 Series: Intel Atom® Processor E3815 (Single core, 512 K cache, 1.46 GHz)
V2201-E2 Series: Intel Atom® Processor E3826 (Dual core, 1 M cache, 1.46 GHz)
V2201-E4 Series: Intel Atom® Processor E3845 (Quad core, 2 M cache, 1.91 GHz)
System Memory Pre-installed 4 GB DDR3L
System Memory Slot SODIMM DDR3/DDR3L slot x 1
Supported OS Linux Debian 9 (kernel v4.9)
Windows Embedded Standard 7 (WS7E) 32-bit
Windows Embedded Standard 7 (WS7E) 64-bit
Windows 10 Embedded IoT Ent 2016 LTSB Entry 64-bit
Storage Slot mSATA slots x 1
SD 3.0 (SDHC/SDXC) socket x 1
  • Computer Interface
Ethernet Ports Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2
Serial Ports RS-232/422/485 ports x 2, software selectable (DB9 male)
USB 2.0 USB 2.0 hosts x 2, type-A connectors
USB 3.0 USB 3.0 hosts x 1, type-A connectors
Digital Input DIs x 4
Digital Output DOs x 4
Expansion Slots mPCIe slot x 2
Video Output HDMI x 1, HDMI connector (type A)
Wi-Fi Antenna Connector RP-SMA x 2
Cellular Antenna Connector SMA x 2
Number of SIMs 1
SIM Format Mini
GPS Antenna Connector SMA x 1
  • Digital Inputs
Isolation 3K VDC
Connector Screw-fastened Euroblock terminal
Dry Contact On: short to GND Off: open
I/O Mode DI
Sensor Type Dry contact
Wet contact (NPN or PNP)
Wet Contact (DI to COM) On: 10 to 30 VDC
Off: 0 to 3 VDC
  • Digital Outputs
Connector Screw-fastened Euroblock terminal
Current Rating 200 mA per channel
I/O Type Sink
Voltage 24 to 30 VDC
  • LED Indicators
System SD slots x 1
Power x 1
Storage x 1
Programmable x 1
Wireless Signal Strength Cellular/Wi-Fi x 2
LAN 1 per port (10/100/1000 Mbps)
Serial 2 per port (Tx, Rx)
  • Serial Interface
Baudrate 50 bps to 115.2 kbps
Flow Control RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485, RTS Toggle (RS-232 only)
Isolation N/A
Parity None, Even, Odd, Space, Mark
Stop Bits 1, 1.5, 2
  • Serial Signals
RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w Data+, Data-, GND
RS-485-4w Tx+, Tx-, Rx+, Rx-, GND
  • Power Parameters
Input Voltage 9 to 36 VDC
Power Connector Terminal block (for DC models)
Power Consumption (Max.) 2000 mA @ 9 VDC
Power Consumption 18 W (max.)
  • Physical Characteristics
Housing Aluminum
IP Rating IP30
Dimensions (with ears) 178 x 52.5 x 120.2 mm (7.01 x 2.07 x 4.73 in)
Dimensions (without ears) 150 x 48.8 x 120.2 mm (5.91 x 1.92 x 4.73 in)
Weight 940 g (2.09 lb)
Installation DIN-rail mounting, Wall mounting (with optional kit)
  • Environmental Limits
Operating Temperature E1/E2 Models: -40 to 85°C (-40 to 185°F)
E4 Models: -40 to 70°C (-40 to 158°F)
Storage Temperature (package included) -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
  • Standards and Certifications
EMC EN 55032/24, EN 61000-6-2/-6-4
EMI CISPR 32, FCC Part 15B Class A
EMS IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
Safety EN 60950-1, UL 508, UL 60950-1
Shock IEC 60068-2-27
Vibration IEC 60068-2-64
  • Declaration
Green Product RoHS, CRoHS, WEEE
  • MTBF
Time 408,275 hrs
Standards Telcordia (Bellcore), GB
