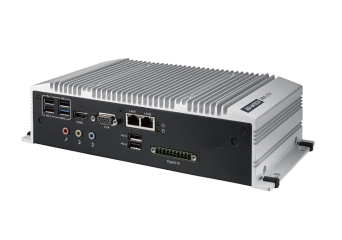

ARK-2121
Intel® Celeron® Quad Core J1900 SoC with Multiple I/Os Fanless Box PC
- Intel® Celeron® J1900 Quad Core 2.0 GHz SoC with Turbo boost support
- VGA and HDMI dual independent display
- 9 ~ 36 VDC wide range power input
- -20 ~ 70° C extend temperature operating
- Mini PCIe expansion with SIM holder for communication module
- mSATA and 1 x 2.5" SATA storage device
- Advantech iDoor module compatible
- Advantech EMIO miniPCIe module compatible with all-in-one ordering
Price from €732.00 Net price
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use onlyModels
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddARK-2121L-U0A2ECeleron J1900 D1 2.0GHz 9-36VDC VGA HDMIOut of stock Warranty: €732.00€900.36Login to check your price ARK-2121L-U0A2ECeleron J1900 D1 2.0GHz 9-36VDC VGA HDMIAvailability: Out of stockNet price:€732.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddARK-2121F-U0A2ECeleron J1900 D1 2.0GHz 6COMOut of stock Warranty: €861.00€1,059.03Login to check your price ARK-2121F-U0A2ECeleron J1900 D1 2.0GHz 6COMAvailability: Out of stockNet price:€861.00
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add1960065854N001iDoor BracketIn stockWarranty: €6.00€7.38Login to check your price 1960065854N001iDoor BracketAvailability:In stockNet price:€6.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddARK-15XX series DIN Rail mount kitsIn stockWarranty: €34.00€41.82Login to check your price ARK-15XX series DIN Rail mount kitsAvailability:In stockNet price:€34.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddARK-15XX series VESA mount kitsIn stockWarranty: €29.00€35.67Login to check your price ARK-15XX series VESA mount kitsAvailability:In stockNet price:€29.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDIN rail power supply 60W 12V 5AIn stockWarranty: €18.30€22.51Login to check your price DIN rail power supply 60W 12V 5AAvailability:In stockNet price:€18.30
Description
ARK-2121L
- Intel® Celeron® J1900 Quad Core 2.0 GHz SoC with Turbo boost support
- VGA and HDMI dual independent display
- 9 ~ 36 VDC wide range power input
- -20 ~ 70° C extend temperature operating
- Mini PCIe expansion with SIM holder for communication module
- mSATA and 1 x 2.5" SATA storage device
- Advantech iDoor module compatible
- Advantech EMIO miniPCIe module compatible with all-in-one ordering
- No RED Certification
ARK-2121F
- Intel® Celeron® J1900 Quad Core 2.0 GHz SoC with Turbo boost support
- VGA and HDMI dual independent display
- 6 x COM, 6 x USB, isolated DIO
- 9 ~ 36 VDC wide range power input
- -20 ~ 70° C extend temperature operating
- Mini PCIe expansion with SIM holder for communication module
- mSATA and 1 x 2.5" SATA storage device
- Optional DVI/2nd HDMI/4x GbE by project support
- Internal USB for security dongle
Technical Specification
| ARK-2121L-U0A2E | ARK-2121F-U0A2E | |
| Processor | Intel Celeron J1900 2.0 GHz | Intel Celeron J1900 2.0 GHz |
| RAM | Up to 8 GB DDR3L SODIMM | Up to 8 GB DDR3L SODIMM |
| VGA (DSub) | 1 | 1 |
| HDMI | 1 | 1 |
| LVDS | - | - |
| Ethernet | 2 x Gigabit Ethernet, WoL | 2 x Gigabit Ethernet, WoL |
| Audio | Realtek ALC888S, Line-out, Mic-in, Line-in | Realtek ALC888S, Line-out,Mic-in,Line-in |
| COM | 2x RS-232, 2x RS-232/422/485 | 6x RS-232/422/485 |
| USB | 1x USB 3.0, 3x USB 2.0 | 1x USB 3.0, 5x USB 2.0 |
| DIO | - | 4x DI, 4x DO |
| Watchdog | Yes | Yes |
| Mini PCIe | 1x full-szie, slot SIM | 2x full-size, slot SIM |
| Storage | 1 x 2,5", max. 12,5 mm height 1 x mSATA |
1 x 2,5", max. 12,5 mm height 1 x mSATA |
| MOS/iDoor | 1x iDoor | - |
| Power supply | 9 ~ 36 VDC, min. 14W | 9 ~ 36 VDC, min. 14W |
