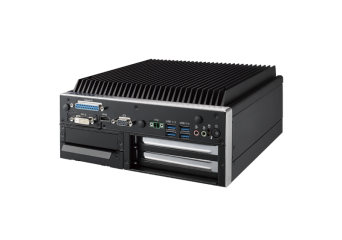

ARK-3520P
6th Gen. Intel® Core™ i3/ i5/ i7 with Expansion slots and wide range power Fanless Box PC
- Intel® Core™ i3/i5/i7 processor (BGA)
- Triple independent display: VGA + HDMI + Option Display
- DDR4 SO-DIMM memory up to 32 GB
- Flexible Expansion via PCI/PCIex4
- 9-36V wide range Power input
- Versatile I/Os including 6 x high speed USB 3.0 and 8 x COM ports
- 2 Removable 2.5" HDD drive bay
- Advantech iDoor module compatible
- No RED Certification
Price from €1,833.00 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use onlyModels
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddARK-3520P-U8A1EARK-3520P ,i7-6820EQ2.8GHz, 2PCI slotsIn stockWarranty: €2,203.00€2,709.69Login to check your price ARK-3520P-U8A1EARK-3520P ,i7-6820EQ2.8GHz, 2PCI slotsAvailability:In stockNet price:€2,203.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddARK-3520P-U7A1EARK-3520P ,i5-6440EQ, 2.7GHz, 2PCI slotsOut of stock Warranty: €1,833.00€2,254.59Login to check your price ARK-3520P-U7A1EARK-3520P ,i5-6440EQ, 2.7GHz, 2PCI slotsAvailability: Out of stockNet price:€1,833.00
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add1960065854N001iDoor BracketIn stockWarranty: €7.00€8.61Login to check your price 1960065854N001iDoor BracketAvailability:In stockNet price:€7.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddAMO-D002EMIOe-731 DP for ARK-3530/3520/2250LOut of stock Warranty: €47.00€57.81Login to check your price AMO-D002EMIOe-731 DP for ARK-3530/3520/2250LAvailability: Out of stockNet price:€47.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddAMO-R022EASSY AMO-R022 A1-01 2 x PCIe*4 Riser ARK-3520Out of stock Warranty: €26.00€31.98Login to check your price AMO-R022EASSY AMO-R022 A1-01 2 x PCIe*4 Riser ARK-3520Availability: Out of stockNet price:€26.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDIN rail power supply 100W 24V 4AIn stockWarranty: €31.70€38.99Login to check your price DIN rail power supply 100W 24V 4AAvailability:In stockNet price:€31.70 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSODDR4-4GB-INDRAM DDR4 SODIMM 4GB IndustrialIn stockWarranty: €29.00€35.67Login to check your price SODDR4-4GB-INDRAM DDR4 SODIMM 4GB IndustrialAvailability:In stockNet price:€29.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddSODDR4-8GB-INDRAM DDR4 SODIMM 8GB IndustrialIn stockWarranty: €31.00€38.13Login to check your price SODDR4-8GB-INDRAM DDR4 SODIMM 8GB IndustrialAvailability:In stockNet price:€31.00
Description
6th Gen. Intel® Core™ i3/ i5/ i7 with Expansion slots and wide range power Fanless Box PC
- Intel® Core™ i3/i5/i7 processor (BGA)
- Triple independent display: VGA + HDMI + Option Display
- DDR4 SO-DIMM memory up to 32 GB
- Flexible Expansion via PCI/PCIex4
- 9-36V wide range Power input
- Versatile I/Os including 6 x high speed USB 3.0 and 8 x COM ports
- 2 Removable 2.5" HDD drive bay
- Advantech iDoor module compatible
- No RED Certification
Technical Specification
| CPU | Core i3-6100E, Dual Core Core i5-6440EQ, Quad Core Core i7-6820EQ, Quad Core |
| RAM | Up to 32 GB DDR4 |
| VGA (DSub) | 1 |
| HDMI | 1 |
| Audio | Line-out, Mic-in |
| Gigabit Ethernet | 2 |
| 2,5" HDD | Two removable 2.5" SATA HDD Bays (Max. 15mm), Support RAID 0, 1 |
| mPCIe | 2 x Full-size (1 x support mSATA, 1 x support SIM holder) |
| M.2 | 1 x E key for WiFi |
| iDoor | 1x Optional |
| DIO | 16 bit |
| USB 3.0 | 6 |
| USB 2.0 | 2 |
| RS-232 | 4 |
| RS-232/422/485 | 4 |
| TPM | Optional |
| Working temp. | -20°C ~ +60°C |
