Promocja cenowa na model HDR-15-5
Product intended for professional use onlyModels
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCP-168U8 Port UPCI Board, RS-232In stockWarranty: €167.00€205.41Login to check your price CP-168U8 Port UPCI Board, RS-232Availability:In stockNet price:€167.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCP-168U-T8 Port UPCI Board, RS-232, Wide TemperatureOut of stock Warranty: €212.00€260.76Login to check your price CP-168U-T8 Port UPCI Board, RS-232, Wide TemperatureAvailability: Out of stockNet price:€212.00
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCable/CBL-M62M25x8-100In stockWarranty: €40.00€49.20Login to check your price Cable/CBL-M62M25x8-100Availability:In stockNet price:€40.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCable/CBL-M62M9x8-100In stockWarranty: €34.00€41.82Login to check your price Cable/CBL-M62M9x8-100Availability:In stockNet price:€34.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add8 Port Connection Box, DB25F, 150CM CableOut of stock Warranty: €100.00€123.00Login to check your price 8 Port Connection Box, DB25F, 150CM CableAvailability: Out of stockNet price:€100.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add8 Port Connection Box, DB25M, 150CM CableOut of stock Warranty: €100.00€123.00Login to check your price 8 Port Connection Box, DB25M, 150CM CableAvailability: Out of stockNet price:€100.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add8 Port Connection Box, DB25F, w/ SurgeOut of stock Warranty: €214.00€263.22Login to check your price 8 Port Connection Box, DB25F, w/ SurgeAvailability: Out of stockNet price:€214.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add8 Port Connection Box, DB9M, Matel CaseOut of stock Warranty: €109.00€134.07Login to check your price 8 Port Connection Box, DB9M, Matel CaseAvailability: Out of stockNet price:€109.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add8 Port Connection Box, RJ45, Matel CaseOut of stock Warranty: €97.00€119.31Login to check your price 8 Port Connection Box, RJ45, Matel CaseAvailability: Out of stockNet price:€97.00
Description

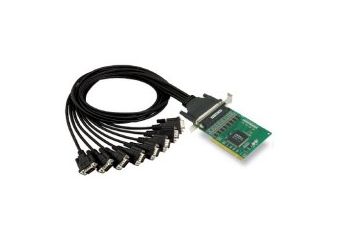

The CP-168U is a smart, 8-port universal PCI board designed for POS and ATM applications. It is a top choice of industrial automation engineers and system integrators, and supports many different operating systems, including Windows, Linux, and even UNIX. In addition, each of the board’s eight RS-232 serial ports supports a fast 921.6 kbps baudrate. The CP-168U provides full modem control signals to ensure compatibility with a wide range of serial peripherals, and it works with both 3.3 V and 5 V PCI buses, allowing the board to be installed in virtually any available PC server.
Technical Specification
- Serial Interface
| Comm. Controller | MU860 (16C550C compatible) |
| Bus | 32-bit Universal PCI |
| Connector | DB62 female |
| FIFO | 128 bytes |
| Max. No. of Boards per PC | 8 |
| No. of Ports | 8 |
| Serial Standards | RS-232 |
| Baudrate | 50 bps to 921.6 kbps |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | None, RTS/CTS, XON/XOFF |
- Serial Signals
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
- Serial Software Features
| Windows Drivers | DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Linux Drivers | Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x, Linux kernel 4.x, Linux kernel 5.x |
| UNIX Drivers | QNX 6, SCO OpenServer, UnixWare 7, Solaris 10, FreeBSD |
- Power Parameters
| Input Current | 180 mA @ 5 VDC |
- Physical Characteristics
| Dimensions | 82 x 120 mm (3.22 x 4.72 in) |
- LED Interface
| LED Indicators | Built-in Tx, Rx LEDs for each port |
- Environmental Limits
| Operating Temperature | CP-168U: 0 to 55°C (32 to 131°F) CP-168U-T: -40 to 85°C (-40 to 185°F) |
| Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
- Standards and Certifications
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class B |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV |
| International Approval | CP-168U: KC |
- Declaration
| Green Product | RoHS, CRoHS, WEEE |
- MTBF
| Time | 280,854 hrs |
| Standards | Telcordia (Bellcore) Standard TR/SR |
