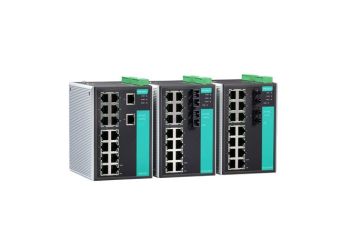

EDS-516A
16-port managed Ethernet switches
- Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and STP/RSTP/MSTP for network redundancy
- TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security
- Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
- Supports MXstudio for easy, visualized industrial network management
Price from €1,322.00 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use onlyModels
Filter: ()
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEDS-516AIndustrial Managed Ethernet Switch with 16 10/100BaseT(X) ports, 0 to 60°CIn stockWarranty: €1,322.00€1,626.06Login to check your price EDS-516AIndustrial Managed Ethernet Switch with 16 10/100BaseT(X) ports, 0 to 60°CAvailability:In stockNet price:€1,322.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEDS-516A-TIndustrial Managed Ethernet Switch with 16 10/100BaseT(X) ports, -40 to 75°COut of stock Warranty: €1,424.00€1,751.52Login to check your price EDS-516A-TIndustrial Managed Ethernet Switch with 16 10/100BaseT(X) ports, -40 to 75°CAvailability: Out of stockNet price:€1,424.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEDS-516A-MM-SCIndustrial Managed Ethernet Switch with 14 10/100BaseT(X) ports, 2 multi mode 100BaseFX ports, SC connector, 0 to 60°COut of stock Warranty: €1,666.00€2,049.18Login to check your price EDS-516A-MM-SCIndustrial Managed Ethernet Switch with 14 10/100BaseT(X) ports, 2 multi mode 100BaseFX ports, SC connector, 0 to 60°CAvailability: Out of stockNet price:€1,666.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEDS-516A-MM-SC-TIndustrial Managed Ethernet Switch with 14 10/100BaseT(X) ports, 2 multi mode 100BaseFX ports, SC connector, -40 to 75°COut of stock Warranty: €1,767.00€2,173.41Login to check your price EDS-516A-MM-SC-TIndustrial Managed Ethernet Switch with 14 10/100BaseT(X) ports, 2 multi mode 100BaseFX ports, SC connector, -40 to 75°CAvailability: Out of stockNet price:€1,767.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEDS-516A-MM-STIndustrial Managed Ethernet Switch with 14 10/100BaseT(X) ports, 2 multi mode 100BaseFX ports, ST connector, 0 to 60°COut of stock Warranty: €1,666.00€2,049.18Login to check your price EDS-516A-MM-STIndustrial Managed Ethernet Switch with 14 10/100BaseT(X) ports, 2 multi mode 100BaseFX ports, ST connector, 0 to 60°CAvailability: Out of stockNet price:€1,666.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddEDS-516A-MM-ST-TIndustrial Managed Ethernet Switch with 14 10/100BaseT(X) ports, 2 multi mode 100BaseFX ports, ST connector, -40 to 75°COut of stock Warranty: €1,767.00€2,173.41Login to check your price EDS-516A-MM-ST-TIndustrial Managed Ethernet Switch with 14 10/100BaseT(X) ports, 2 multi mode 100BaseFX ports, ST connector, -40 to 75°CAvailability: Out of stockNet price:€1,767.00
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDIN rail power supply 30W 24V 1.5AIn stockWarranty: €13.40€16.48Login to check your price DIN rail power supply 30W 24V 1.5AAvailability:In stockNet price:€13.40 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add19" Rackmont setIn stockWarranty: €166.00€204.18Login to check your price 19" Rackmont setAvailability:In stockNet price:€166.00
Description
The EDS-516A standalone 16-port managed Ethernet switches, with their advanced Turbo Ring and Turbo Chain technologies (recovery time < 20 ms), RSTP/STP, and MSTP, increase the reliability and availability of your industrial Ethernet network. Models with a wide operating temperature range of -40 to 75°C are also available, and the switches support advanced management and security features, making the EDS-516A switches suitable for any harsh industrial environment.
Additional Features and Benefits
- Command line interface (CLI) for quickly configuring major managed functions
- DHCP Option 82 for IP address assignment with different policies
- Supports EtherNet/IP and Modbus TCP protocols for device management and monitoring
- Compatible with PROFINET protocol for transparent data transmission
- Lock port function for blocking unauthorized access based on MAC address
- IGMP snooping and GMRP for filtering multicast traffic
- Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
- QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism
- Port Trunking for optimum bandwidth utilization
- RMON for proactive and efficient network monitoring
- SNMPv1/v2c/v3 for different levels of network management
- Bandwidth management to prevent unpredictable network status
- Automatic warning by exception through email and relay output
Technical Specification
- Input/Output Interface
| Alarm Contact Channels | Resistive load: 1 A @ 24 VDC |
| Digital Inputs | +13 to +30 V for state 1 -30 to +3 V for state 0 Max. input current: 8 mA |
- Ethernet Interface
| 10/100BaseT(X) Ports (RJ45 connector) | EDS-516A Series: 16 EDS-516A-MM-SC/MM-ST Series: 14 All models support: Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection |
| 100BaseFX Ports (multi-mode SC connector) | EDS-516A-MM-SC Series: 2 |
| 100BaseFX Ports (multi-mode ST connector) | EDS-516A-MM-ST Series: 2 |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.1X for authentication IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1Q for VLAN Tagging IEEE 802.1p for Class of Service IEEE 802.3x for flow control IEEE 802.3ad for Port Trunk with LACP |
- Ethernet Software Features
| Filter | 802.1Q VLAN, GMRP, GVRP, IGMP v1/v2, Port-based VLAN |
| Industrial Protocols | EtherNet/IP, Modbus TCP |
| Management | IPv4/IPv6, SNMPv1/v2c/v3, LLDP, Port Mirror, Back Pressure Flow Control, BOOTP, DDM, DHCP Option 66/67/82, DHCP Server/Client, Flow control, RARP, RMON, SMTP, SNMP Inform, Syslog, Telnet, TFTP |
| MIB | MIB-II, Bridge MIB, Ethernet-like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB |
| Redundancy Protocols | STP, MSTP, RSTP, LACP, Link Aggregation, Turbo Chain, Turbo Ring v1/v2 |
| Security | HTTPS/SSL, RADIUS, TACACS+, Port Lock, SSH, Broadcast storm protection |
| Time Management | NTP Server/Client, SNTP, IEEE 1588v2 PTP (software-based) |
- Switch Properties
| IGMP Groups | 256 |
| MAC Table Size | 8 K |
| Max. No. of VLANs | 64 |
| Packet Buffer Size | 2 Mbits |
| Priority Queues | 4 |
| VLAN ID Range | VID 1 to 4094 |
- LED Interface
| LED Indicators | PWR1, PWR2, FAULT, 10/100M (TP port), 100M (fiber port), MSTR/HEAD, CPLR/TAIL |
- Serial Interface
| Console Port | RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1) |
- DIP Switch Configuration
| Ethernet Interface | Turbo Ring, Master, Coupler, Reserve |
- Power Parameters
| Connection | 2 removable 6-contact terminal block(s) |
| Input Voltage | 24 VDC, Redundant dual inputs |
| Operating Voltage | 12 to 45 VDC |
| Input Current | EDS-516A Series: 0.35 A @ 24 VDC EDS-516A-MM-SC/MM-ST Series: 0.44 A @ 24 VDC |
| Overload Current Protection | Supported |
| Reverse Polarity Protection | Supported |
- Physical Characteristics
| Housing | Metal |
| IP Rating | IP30 |
| Dimensions | 94 x 135 x 142.7 mm (3.7 x 5.31 x 5.62 in) |
| Weight | 1586 g (3.50 lb) |
| Installation | DIN-rail mounting, Wall mounting (with optional kit) |
- Environmental Limits
| Operating Temperature | Standard Models: 0 to 60°C (32 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
- Standards and Certifications
| Safety | EN 60950-1, UL 60950-1, CSA C22.2 No. 60950-1, UL 508 |
| Hazardous Locations | ATEX, Class I Division 2 |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF |
| Maritime | DNV-GL |
| Shock | IEC 60068-2-27 |
| Vibration | IEC 60068-2-6 |
| Freefall | IEC 60068-2-31 |
- MTBF
| Time | 247,676 hrs |
| Standards | Telcordia (Bellcore), GB |
