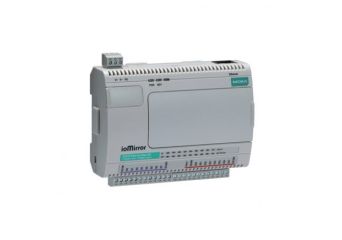

ioMirror E3210
Ethernet Peer-to-Peer I/O with 8 digital inputs and 8 digital outputs
- Direct input-to-output signal communication over IP
- High-speed peer-to-peer I/O within 20 ms
- One physical alarm port for connectivity status
- Utility for quick and easy web-based settings
- Local alarm channel
- Remote alarm message
- Supports Modbus TCP for remote monitoring
- Optional LCD module for easy configuration
Price from €293.00 Net price
High price? Log in and buy cheaper
In delivery
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
ioMirror E3210
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddioMirror E3210Ethernet Peer-to-Peer I/O Server,8DI/8DOIn delivery Warranty: €293.00€360.39Login to check your price ioMirror E3210Ethernet Peer-to-Peer I/O Server,8DI/8DOAvailability: In deliveryNet price:€293.00
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDIN rail power supply 30W 24V 1.5AIn stockWarranty: €13.40€16.48Login to check your price DIN rail power supply 30W 24V 1.5AAvailability:In stockNet price:€13.40
Description
The ioMirror E3200 Series, which is designed as a cable-replacement solution to connect remote digital input signals to output signals over an IP network, provides 8 digital input channels, 8 digital output channels, and a 10/100M Ethernet interface. Up to 8 pairs of digital input and output signals can be exchanged over Ethernet with another ioMirror E3200 Series device, or can be sent to a local PLC or DCS controller. Over a local area network, the ioMirror can achieve a low signal latency (typically less than 20 ms). With the ioMirror, remote sensors can be connected to local controllers or display panels over copper, fiber, or wireless Ethernet infrastructures, and signals can be transmitted over virtually unlimited distances, without noise problems.
Split Sensor Signals to 16 Different Locations
The ioMirror E3200 Series can split one input signal to two digital output channels at two different IP addresses. Eight tank level signals can be monitored at 16 different display panels, all at the same time.
Local Alarm and Remote Alarm Messages for Monitoring Connectivity
The ioMirror E3200 Series has a 24 VDC alarm output channel that can activate an attached buzzer or LED display when the connection fails. In addition, both ioMirror modules can send messages to the ioEventLog software, ensuring that at least one of the warning messages will reach the ioEventLog software.
Technical Specification
- Input/Output Interface
| Digital Input Channels | 8 |
| Digital Output Channels | 8 |
| Alarm Contact Channels | 1 |
| Isolation | 3k VDC or 2k Vrms |
| Buttons | Reset button |
- Digital Inputs
| Connector | Screw-fastened Euroblock terminal |
| Digital Filtering Time Interval | Software configurable |
| Dry Contact | On: short to GND Off: open |
| I/O Mode | DI |
| Over-Voltage Protection | 36 VDC |
| Points per COM | 8 channels |
| Sensor Type | Dry contact Wet Contact (NPN) |
| Wet Contact (DI to GND) | On: 10 to 30 VDC Off: 0 to 3 VDC |
- Digital Outputs
| Connector | Screw-fastened Euroblock terminal |
| Current Rating | 200 mA per channel |
| I/O Mode | DO |
| I/O Type | Sink |
| Over-Current Protection | 0.6 A per channel @ 25°C |
| Over-Temperature Shutdown | 160°C (min.) |
| Over-Voltage Protection | 35 VDC |
- Ethernet Interface
| 10/100BaseT(X) Ports (RJ45 connector) | 1 |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
- Ethernet Software Features
| Configuration Options | Web Console (HTTP) Windows Utility (ioMirrorAdmin) |
| Industrial Protocols | Modbus TCP Server (Slave) |
| Management | BOOTP DHCP Client HTTP TCP/IP UDP |
| Time Management | SNTP |
- Modbus TCP
| Functions Supported | 1, 2, 3, 4, 5, 6, 15, 16 |
- LED Interface
| LED Indicators | PWR, Ready |
- Power Parameters
| Power Connector | Screw-fastened Euroblock terminal |
| No. of Power Inputs | 1 |
| Input Voltage | 12 to 48 VDC |
| Power Consumption | 136 mA @ 24 VDC |
- Alarm Contacts
| I/O Type | Sink |
| Current Rating | Max. 200 mA per channel |
| Connector | Screw-fastened Euroblock terminal |
- Physical Characteristics
| Housing | Plastic |
| Dimensions | 115 x 79 x 45.6 mm (4.53 x 3.11 x 1.80 in) |
| Weight | 205 g (0.45 lb) |
| Wiring | I/O cable, 16 to 26 AWG Power cable, 16 to 26 AWG |
| Installation | Wall mounting DIN-rail mounting |
- Environmental Limits
| Operating Temperature | -10 to 60°C (14 to 140°F) |
| Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Altitude | 2000 m - Note: Please contact Moxa if you require products guaranteed to function properly at higher altitudes. |
- Standards and Certifications
| Freefall | IEC 60068-2-32 |
| EMI | EN 61000-6-4, FCC Part 15B Class A |
| Safety | UL 508 |
| Shock | IEC 60068-2-27 |
| Vibration | IEC 60068-2-6 |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF |
- MTBF
| Time | 231,020 hrs |
| Standards | Telcordia SR332 |
