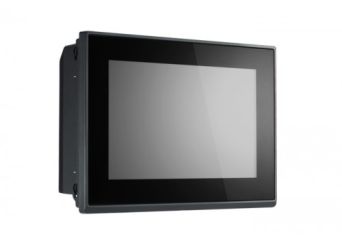

MPC-2070
7-inch industrial fanless panel computers
- 7-inch panel computer
- Intel Atom® processor E3826 1.46 GHz
- -40 to 70°C wide-temperature design, no fan or heater
- 1000-nit sunlight-readable LCD
- Glove-friendly, multi-touch screen
- Class 1 Division 2, ATEX Zone 2, and IECEx compliant
- Wide-range 10 to 36 VDC power input
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use onlyModels
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMPC-2070-E2-LB-T7 inches industrial panel computer, E3826 CPU, 4GB RAM, 400 nits, 16:9 aspect ratio, IP66 in front, touchOut of stock Warranty: MPC-2070-E2-LB-T7 inches industrial panel computer, E3826 CPU, 4GB RAM, 400 nits, 16:9 aspect ratio, IP66 in front, touchAvailability: Out of stock- -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMPC-2070-E2-LB-T-W7E7 inches industrial panel computer, E3826 CPU, 4GB RAM, 32GB CFast, W7E OS, 400 nits, 16:9 aspect ratio, IP66 in front, touchOut of stock Warranty: MPC-2070-E2-LB-T-W7E7 inches industrial panel computer, E3826 CPU, 4GB RAM, 32GB CFast, W7E OS, 400 nits, 16:9 aspect ratio, IP66 in front, touchAvailability: Out of stock- -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMPC-2070-E2-T7 inches industrial panel computer, E3826 CPU, 4GB RAM, 1000 nits, 16:9 aspect ratio, IP66 in front, touchIn stockWarranty: MPC-2070-E2-T7 inches industrial panel computer, E3826 CPU, 4GB RAM, 1000 nits, 16:9 aspect ratio, IP66 in front, touchAvailability:In stock- -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMPC-2070-E2-T-W7E7 inches industrial panel computer, E3826 CPU, 4GB RAM, 32GB CFast, W7E OS, 1000 nits, 16:9 aspect ratio, IP66 in front, touchOut of stock Warranty: MPC-2070-E2-T-W7E7 inches industrial panel computer, E3826 CPU, 4GB RAM, 32GB CFast, W7E OS, 1000 nits, 16:9 aspect ratio, IP66 in front, touchAvailability: Out of stock-
Description
The MPC-2070 7-inch panel computers with E3800 Series Intel Atom® processor deliver a reliable, durable, and versatile platform for use in industrial environments. With two software selectable RS-232/422/485 serial ports and two Gigabit Ethernet ports, the MPC-2070 panel computers support a wide variety of serial interfaces as well as high-speed IT communications, all with native network redundancy.
The MPC-2070 Series panel computers are designed with a wide, -40 to 70°C temperature range, and come with a fanless, streamlined enclosure designed for highly efficient heat dissipation. This makes the MPC-2070 Series one of the most reliable industrial platforms available for harsh, hot, outdoor environments like oil and gas fields, or drilling platforms. The MPC-2070 also features a 1000-nit LCD panel offering a sunlight-readable, projected-capacitive, glove-friendly, multi-touch screen, providing an excellent user experience for outdoor applications._newline
Technical Specification
- Computer
| CPU | Intel Atom® Processor E3826 (1M Cache, 1.46 GHz) |
| Graphics Controller | Intel® HD Graphics |
| System Memory Pre-installed | 4 GB DDR3L |
| System Memory Slot | SODIMM DDR3/DDR3L slot x 1 |
| Pre-installed OS | MPC-2070-E2-T/MPC-2070-E2-LB-T: OS is not pre-installed MPC-2070-E2-T-W7E/MPC-2070-E2-LB-T-W7E: OS is pre-installed |
| Supported OS | Windows 7 Pro for Embedded Systems Windows Embedded Standard 7 (WS7P) 64-bit Windows 10 Pro 64-bit Windows 10 Embedded IoT Ent 2016 LTSB Entry 64-bit Linux Debian 9 |
| Storage Slot | CFast slot x 1 SD slots x 1, SD 3.0 (SDHC/SDXC) socket |
| Storage Pre-installed | MPC-2070-E2-T-W7E/MPC-2070-E2-LB-T-W7E: 32 GB CFast card pre-installed |
- Computer Interface
| Ethernet Ports | Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2 |
| Serial Ports | RS-232/422/485 ports x 2, software selectable (DB9 male) |
| USB 2.0 | USB 2.0 hosts x 2, type-A connectors |
| Digital Input | DIs x 4 |
| Digital Output | DOs x 4 |
- LED Indicators
| System | Power x 1 |
| LAN | 2 per port (10/100/1000 Mbps) |
- Display
| Active Display Area | 152.4 (H) x 91.44 (V) mm |
| Contrast Ratio | 600:1 |
| Light Intensity (Brightness) | MPC-2070-E2-T Series: 1000 cd/m2 MPC-2070-E2-LB-T Series: 350 cd/m2 |
| Max. No. of Colors | 16.2M (8-bit/color) |
| Panel Size | 7-inch viewable image |
| Panel Type | TN |
| Pixel Pitch (RGB) | 0.1905 (H) x 0.1905 (V) mm |
| Pixels | 800 x 480 |
| Response Time | 5 ms (gray to gray) |
| Viewing Angles | 140°/120° |
- Touch Function
| Touch Type | Capacitive Touch (PCAP) |
| Touch Support Points | 4 points |
| Glove Support | Yes |
- Serial Interface
| Baudrate | 50 bps to 115.2 kbps |
| Data Bits | 5, 6, 7, 8 |
| Flow Control | RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485, RTS Toggle (RS-232 only) |
| Parity | None, Even, Odd, Space, Mark |
| Stop Bits | 1, 1.5, 2 |
- Serial Signals
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
- Power Parameters
| Input Voltage | 10 to 36 VDC |
| Power Consumption | 40 W (max.) |
- Physical Characteristics
| Housing | Metal |
| IP Rating | IP66, front IP20, rear |
| Dimensions | 200 x 140 x 45 mm (7.9 x 5.5 x 1.8 in) |
| Weight | 1,400 g (3.09 lb) |
- Environmental Limits
| Operating Temperature | -40 to 70°C (-40 to 158°F) |
| Storage Temperature (package included) | -40 to 70°C (-40 to 158°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
- Standards and Certifications
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF |
| Environmental Testing | IEC 60068-2-1, DNVGL-CG-0339 IEC 60068-2-2, DNVGL-CG-0339 IEC 60068-2-2, IEC 60945 IEC 60068-2-30, IEC 60945 |
| Hazardous Locations | ATEX, Class I Division 2, IECEx |
| Maritime | DNV-GL |
| Mechanical Protection Rating | IEC 60529, IP code |
| Safety | EN 60950-1, IEC 60950-1, UL 60950-1 |
| Shock | IEC 60068-2-27 |
| Vibration | IEC 60068-2-6, IEC 60068-2-6, IEC 60945, IEC 60068-2-64, DNVGL-CG-0339 |
- Declaration
| Green Product | RoHS, CRoHS, WEEE |
