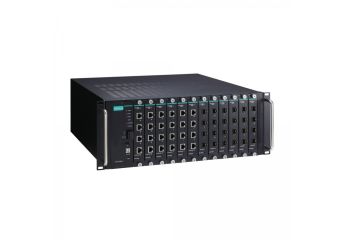

ICS-G7748A

48G-port Layer 2 full Gigabit modular managed Ethernet switches

Manufacturer: MOXA
Manufacturer: MOXA
  • Up to 48 Gigabit Ethernet ports
  • Up to 48 optical fiber connections (SFP slots)
  • Up to 48 PoE+ ports with external power supply (with IM-G7000A-4PoE module)
  • Fanless, -10 to 60°C operating temperature range
  • Modular design for maximum flexibility and hassle-free future expansion
  • Hot-swappable interface and power modules for continuous operation
  • Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and STP/RSTP/MSTP for network redundancy
  • Isolated redundant power inputs with universal 110/220 VAC power supply range
  • Supports MXstudio for easy, visualized industrial network management
  • V-ON™ ensures millisecond-level multicast data and video network recovery
Price from €13,479.00 Net price

High price? Log in and buy cheaper

Product out of stock

Free shipping from €300

See 1 model

Promocja cenowa na model HDR-15-5

Models

  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    ICS-G7748A-HV-HV
    Layer 2 Full Gigabit managed Ethernet switch with 12 slots for 4-port 10/100/1000BaseT(X) module or 4-port 100/1000BaseSFP slot module, 2 isolated power supplies (85 to 264 VAC), -10 to 60°C operating temperature
    Out of stock Warranty:
    €13,479.00
    €16,579.17
    Login to check your price
    ICS-G7748A-HV-HV
    Layer 2 Full Gigabit managed Ethernet switch with 12 slots for 4-port 10/100/1000BaseT(X) module or 4-port 100/1000BaseSFP slot module, 2 isolated power supplies (85 to 264 VAC), -10 to 60°C operating temperature
    Availability: Out of stock
    Net price:
    €13,479.00

Accessories

  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    Gigabit Ethernet interface module with 4 100/1000BaseSFP slots, -10 to 60°C operating temperature
    Out of stock Warranty:
    €882.00
    €1,084.86
    Login to check your price
    Gigabit Ethernet interface module with 4 100/1000BaseSFP slots, -10 to 60°C operating temperature
    Availability: Out of stock
    Net price:
    €882.00
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    Gigabit Ethernet interface module with 4 10/100/1000BaseT(X) ports, RJ45 connectors, -10 to 60°C operating temperature
    Out of stock Warranty:
    €882.00
    €1,084.86
    Login to check your price
    Gigabit Ethernet interface module with 4 10/100/1000BaseT(X) ports, RJ45 connectors, -10 to 60°C operating temperature
    Availability: Out of stock
    Net price:
    €882.00
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    Gigabit PoE+ Ethernet interface module with 4 10/100/1000BaseT(X) PoE+ ports, RJ45 connectors, 0 to 60°C operating temperature
    Out of stock Warranty:
    €1,374.00
    €1,690.02
    Login to check your price
    Gigabit PoE+ Ethernet interface module with 4 10/100/1000BaseT(X) PoE+ ports, RJ45 connectors, 0 to 60°C operating temperature
    Availability: Out of stock
    Net price:
    €1,374.00

Description

Process automation and transportation automation applications combine data, voice, and video, and consequently require high performance and high reliability. The ICS-G7748A Series full Gigabit backbone switches’ modular design makes network planning easy, and allows greater flexibility by letting you install up to 48 Gigabit Ethernet ports.

The ICS-G7748A’s full Gigabit capability increases bandwidth to provide high performance and the ability to quickly transfer large amounts of video, voice, and data across a network. The fanless switches support the Turbo Ring, Turbo Chain, and RSTP/STP redundancy technologies, and come with an isolated redundant power supply to increase system reliability and the availability of your network backbone.



Additional Features and Benefits

  • Advanced PoE management functions: PoE output setting, PD failure check, PoE scheduling, and PoE diagnostics (with IM-G7000A-4PoE module)
  • Command line interface (CLI) for quickly configuring major managed functions
  • DHCP Option 82 for IP address assignment with different policies
  • Supports EtherNet/IP and Modbus TCP protocols for device management and monitoring
  • Compatible with PROFINET protocol for transparent data transmission
  • Port mirroring for online debugging
  • Automatic warning by exception through email and relay output
  • Redundant, dual AC power inputs
  • Digital inputs for integrating sensors and alarms with IP networks
  • IGMP snooping and GMRP for filtering multicast traffic
  • IEEE 802.1Q VLAN and GVRP protocol to ease network planning
  • QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism
  • Port Trunking for optimum bandwidth utilization
  • TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security
  • Access control lists (ACL) increase the flexibility and security of network management
  • SNMPv1/v2c/v3 for different levels of network management
  • RMON for proactive and efficient network monitoring
  • Bandwidth management to prevent unpredictable network status
  • Lock port function for blocking unauthorized access based on MAC address

Technical Specification

  • Input/Output Interface
Alarm Contact Channels Relay output with current carrying capacity of 2 A @ 30 VDC
Digital Inputs +13 to +30 V for state 1
-30 to +1 V for state 0
Max. input current: 8 mA
  • Ethernet Interface
Slot Combination 12 slots for 4-port interface modules (10/100/1000BaseT(X), or PoE+ 10/100/1000BaseT(X), or 100/1000BaseSFP slots). See the IM-G7000A datasheet for Gigabit Ethernet module product information.
Standards IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1p for Class of Service
IEEE 802.1Q for VLAN Tagging
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1X for authentication
IEEE 802.3 for 10BaseT
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3ad for Port Trunk with LACP
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for flow control
IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
IEEE 802.3af/at for PoE/PoE+ output
  • Ethernet Software Features
Management ARP, Back Pressure Flow Control, BOOTP, DDM, DHCP Option 66/67/82, DHCP Server/Client, IPv4/IPv6, LLDP, Port Mirror, RMON, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP, SMTP, RARP, Flow control
Filter 802.1Q, GMRP, GVRP, IGMP v1/v2/v3
Redundancy Protocols Link Aggregation, MSTP, RSTP, Turbo Chain, Turbo Ring v1/v2, V-ON
Security Access control list, Broadcast storm protection, HTTPS/SSL, MAB authentication, Sticky MAC, NTP authentication, Port Lock, RADIUS, SSH, TACACS+
Time Management NTP Server/Client, SNTP
Industrial Protocols EtherNet/IP, Modbus TCP
MIB Bridge MIB, Ethernet-like MIB, MIB-II, P-BRIDGE MIB, Q-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB
  • Switch Properties
DRAM 128 MB
Flash 16 MB
IGMP Groups 4096
Jumbo Frame Size 9.6 KB
MAC Table Size 16 K
Max. No. of VLANs 256
Packet Buffer Size 12 Mbits
VLAN ID Range VID 1 to 4094
Priority Queues 8
  • USB Interface
Storage Port USB Type A
  • Serial Interface
Console Port USB-serial console (Type B connector)
  • Power Parameters
Input Voltage 110 to 220 VAC, Redundant dual inputs
Operating Voltage 85 to 264 VAC
Overload Current Protection Supported
Reverse Polarity Protection Supported
Input Current 0.87/0.51 A @ 110/220 VAC
  • Physical Characteristics
IP Rating IP30
Dimensions 440 x 176 x 523.8 mm (17.32 x 6.93 x 20.62 in)
Weight 12,900 g (28.5 lb)
Installation Rack mounting
  • Environmental Limits
Operating Temperature -10 to 60°C (14 to 140°F)
Storage Temperature (package included) -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
  • Standards and Certifications
Safety EN 60950-1, UL 60950-1
EMC EN 55032/24
EMI CISPR 32, FCC Part 15B Class A
EMS IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
Railway EN 50121-4
Freefall IEC 60068-2-32
Shock IEC 60068-2-27
Vibration IEC 60068-2-6
  • MTBF
Time 314,973 hrs
Standards Telcordia (Bellcore), GB
