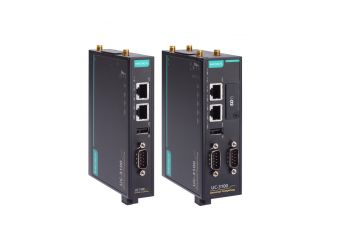

main product photo

UC-3100

Arm Cortex-A8 1 GHz IIoT gateway with built-in LTE Cat. 1 and Wi-Fi modules

Manufacturer: MOXA
Manufacturer: MOXA
  • Armv7 Cortex-A8 1000 MHz processor
  • Integrated Wi-Fi 802.11a/b/g/n and LTE Cat. 1 for the US, EU, APAC, and AUS regions
  • Bluetooth 4.2 support for the US region
  • Industrial CAN 2.0 A/B protocols supported
  • Robust root file system to prevent the system from being bricked due to a firmware update failure
  • -30 to 70°C system operating temperature
  • Meets the EN 61000-6-2 and EN 61000-6-4 standards for industrial EMC applications
  • Moxa Industrial Linux with 10-year long-term support
Price from €703.00 Net price

High price? Log in and buy cheaper

Product out of stock

Free shipping from €300

See 3 models

Promocja cenowa na model HDR-15-5

UC-3100 miniaturowy komputer przemysłowy bezprzewodowy

UC-3100

Models

  • ModelAvailabilityWarrantyWishlist
    Your Price
    		Your Price
    UC-3101-T-EU-LX
    RISC-based LTE cat.1 computer for EU, 1 GHz CPU, 512MB RAM, 4GB eMMC, 2 Ethernet, 1 serial port, 1 USB port and -30 to 70°C operating temperature
    		 Out of stock Warranty:
    €703.00
    €864.69
    Login to check your price
    		Login to check your price
    UC-3101-T-EU-LX
    RISC-based LTE cat.1 computer for EU, 1 GHz CPU, 512MB RAM, 4GB eMMC, 2 Ethernet, 1 serial port, 1 USB port and -30 to 70°C operating temperature
    Availability: Out of stock
    Net price:
    €703.00
    Login to check your price
  • ModelAvailabilityWarrantyWishlist
    Your Price
    		Your Price
    UC-3111-T-EU-LX
    RISC-based LTE cat.1 computer for EU, Wi-Fi a/b/g/n, 1 GHz CPU, 512MB RAM, 4GB eMMC, 2 Ethernet, 2 serial ports, 1 SD slot, 1 USB port and -30 to 70°C operating temperature
    		 Out of stock Warranty:
    €955.00
    €1,174.65
    Login to check your price
    		Login to check your price
    UC-3111-T-EU-LX
    RISC-based LTE cat.1 computer for EU, Wi-Fi a/b/g/n, 1 GHz CPU, 512MB RAM, 4GB eMMC, 2 Ethernet, 2 serial ports, 1 SD slot, 1 USB port and -30 to 70°C operating temperature
    Availability: Out of stock
    Net price:
    €955.00
    Login to check your price
  • ModelAvailabilityWarrantyWishlist
    Your Price
    		Your Price
    UC-3121-T-EU-LX
    RISC-based LTE cat.1 computer for EU, Wi-Fi a/b/g/n, 1 GHz CPU, 512MB RAM, 4GB eMMC, 2 Ethernet, 1 serial port, 1 CAN port, 1 USB port and -30 to 70°C operating temperature
    		 Out of stock Warranty:
    €913.00
    €1,122.99
    Login to check your price
    		Login to check your price
    UC-3121-T-EU-LX
    RISC-based LTE cat.1 computer for EU, Wi-Fi a/b/g/n, 1 GHz CPU, 512MB RAM, 4GB eMMC, 2 Ethernet, 1 serial port, 1 CAN port, 1 USB port and -30 to 70°C operating temperature
    Availability: Out of stock
    Net price:
    €913.00
    Login to check your price

Accessories

Description

Moxa’s UC-3100 Series computers can be used as smart gateways in the field for data pre-processing and transmission, as well as for other embedded data-acquisition applications. The series includes 9 models, each supporting different wireless options and protocols. The UC-3100’s advanced heat dissipation design makes it suitable for use in temperatures ranging from -30 to 70°C. In fact, the Wi-Fi and LTE connections can be used simultaneously in both cold and hot environments, allowing you to maximize the data pre-processing and data transmission capabilities of your applications in most harsh environments.

The UC-3100 is more than just a hardware solution. In order to offer a better user experience with a Moxa Arm-based computer, the UC-3100 supports the following software features, allowing you to use the most suitable configuration for your application.

  • High VPN performance; more than 70 Mbps Ethernet throughput with AES-256 encryption
  • Robust file system to prevent the system from being bricked due to a firmware upgrade failure
  • Real COM mode to provide a control interface to Moxa’s NPort products

In addition, Moxa provides 10 years of Linux OS support. With a new version of the Debian repository released on an average every 2 to 3 years, you can create a reliable solution that will be supported now and long into the future.



Applications

  • Remote Terminal Unit (RTU)
  • Data acquisition
  • M2M communication (smart gateway)
  • Digital signage
  • Factory automation
  • In-vehicle monitor/data logger (transportation)
  • Programmable router
  • Energy usage optimization
  • Predictive maintenance
  • Asset management

Technical Specification

  • Computer
CPU Armv7 Cortex-A8 1 GHz
DRAM 1 GB DDR3 for all US models
512 MB DDR3 for all EU and AU models
Supported OS Linux Debian 9 kernel 4.4 (Moxa Industrial Linux)
Storage Pre-installed 8 GB eMMC for all US models
4 GB eMMC for all EU and AU models
Storage Slot UC-3111-T-US-LX: SD slots x 1
UC-3121-T-US-LX: SD slots x 1
UC-3111-T-EU-LX: SD slots x 1
UC-3111-T-AU-LX: SD slots x 1
  • Computer Interface
Ethernet Ports Auto-sensing 10/100 Mbps ports (RJ45 connector) x 2
Serial Ports UC-3101/3121: RS-232/422/485 ports x 1, software-selectable (DB9)
UC-3111: RS-232/422/485 ports x 2, software-selectable (DB9)
USB 2.0 USB 2.0 hosts x 1, type-A connectors
Cellular Antenna Connector SMA x 2
SIM Format Nano
Number of SIMs 2
GPS Antenna Connector SMA x 1 (US models only)
Wi-Fi Antenna Connector RP-SMA x 2 for UC-3111/UC-3121 only
Console Port RS-232 (TxD, RxD, GND), 4-pin header output (115200, n, 8, 1)
  • Ethernet Interface
Magnetic Isolation Protection 1.5 kV (built-in)
  • Cellular Interface
Band Options US models:
LTE Bands: Band 2 (1900 MHz) / Band 4 (1700 MHz) / Band 5 (850 MHz) / Band 12 (700 MHz) / Band 13 (700 MHz) / Band 14 (700 MHz) / Band 66 (1700 MHz) / Band 71 (600 MHz)
UMTS Bands: 2 (1900 MHz) / Band 4 (1700 MHz) / Band 5 (850 MHz)
Carrier Approval: Verizon, AT&T

EU models:
LTE Bands: Band 1 (2100 MHz) / Band 3 (1800 MHz) / Band 8 (900 MHz) / Band 20 (800 MHz) / Band 28 (700 MHz)
GSM Bands: 900 MHz / 1800 MHz

AU models:
LTE Bands: 3 (1800 MHz) / Band 5 (850 MHz) / Band 8 (900 MHz) / Band 28 (700 MHz)
UMTS Bands: 1 (2100 MHz) / Band 5 (850 MHz) / Band 8 (900 MHz)
  • WLAN Interface
WLAN Standards 802.11a/b/g/n: UC-3111-T-LX and UC-3121-T-LX models
Bluetooth 4.2 compliance: UC-3111-T-LX and UC-3121-T-LX models
Frequency Band 2.4 GHz/5 GHz: UC-3111-T-LX and UC-3121-T-LX models
  • Serial Interface
Data Bits 5, 6, 7, 8
Parity None, Even, Odd, Space, Mark
Stop Bits 1, 1.5, 2
  • Serial Signals
RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w Data+, Data-, GND
RS-485-4w Tx+, Tx-, Rx+, Rx-, GND
  • CAN Interface
Baudrate UC-3121-T-US-LX: 10 to 1000 kbps
UC-3121-T-EU-LX: 10 to 1000 kbps
UC-3121-T-AU-LX: 10 to 1000 kbps
Connector UC-3121-T-US-LX: DB9 male
UC-3121-T-EU-LX: DB9 male
UC-3121-T-AU-LX: DB9 male
Isolation UC-3121-T-US-LX: 2 kV (built-in)
UC-3121-T-EU-LX: 2 kV (built-in)
UC-3121-T-AU-LX: 2 kV (built-in)
Signals UC-3121-T-US-LX: CAN_H, CAN_L, CAN_GND, CAN_SHLD, CAN_V+, GND
UC-3121-T-EU-LX: CAN_H, CAN_L, CAN_GND, CAN_SHLD, CAN_V+, GND
UC-3121-T-AU-LX: CAN_H, CAN_L, CAN_GND, CAN_SHLD, CAN_V+, GND
  • LED Indicators
System Power x 1
CAN UC-3121-T-US-LX: 1 per port (Tx, Rx)
UC-3121-T-EU-LX: 1 per port (Tx, Rx)
UC-3121-T-AU-LX: 1 per port (Tx, Rx)
Serial 1 per port (Tx, Rx)
LAN 1 per port (10/100 Mbps)
Wireless Signal Strength UC-3101: 3 x cellular
UC-3111/UC-3121: 3 x cellular and 3 x Wi-Fi
  • Power Parameters
Power Consumption UC-3101: 6 W (max.)
UC-3111/UC-3121: 8 W (max.)
Input Current 500 mA @ 12 VDC
Input Voltage 9 to 36 VDC
  • Physical Characteristics
Housing Metal
Installation DIN-rail mounting
Wall mounting (with optional kit)
Dimensions (without ears) 128.5 x 89.1 x 26 mm (5.06 x 3.51 x 1.02 in) for UC-3101
128.5 x 89.1 x 41 mm (5.06 x 3.51 x 1.61 in) for UC-3111/UC-3121
Weight Product only: 550 g (1.22 lb)
  • Environmental Limits
Operating Temperature US Models: -40 to 70°C (-40 to 158°F)
All other models: -30 to 70°C (-22 to 158°F)
Storage Temperature (package included) -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
Vibration 5 Grms @ IEC 60068-2-64, random wave, 5-500 Hz, 1 hr per axis (without USB devices attached)
Shock IEC 60068-2-27
  • Standards and Certifications
EMC EN 61000-6-2/-6-4
EN 55032/24
EMI CISPR 22, FCC Part 15B Class A
EMS IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 0.5 kV; Signal: 1 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
Cellular Standards EN 301511
EN 301908-1
EN 62311(MPE SAR)
EN 301489-1/-52
EN 301489-1/17
Radio Frequency FCC
PTCRB
RCM
Safety IEC 60950-1
IEC 62368-1
UL 62368-1
UL 60950-1
WLAN Standards EN 301489-1-17
EN 300328
EN 301893
Green Product RoHS, CRoHS, WEEE
Hazardous Locations Class I Division 2
IECEx
ATEX
  • MTBF
Time UC-3101-T-US-LX : 702,846 hrs
UC-3101-T-EU-LX : 585,775 hrs
UC-3101-T-AU-LX : 585,775 hrs
UC-3111-T-US-LX : 465,569 hrs
UC-3111-T-EU-LX : 416,081 hrs
UC-3111-T-AU-LX : 416,081 hrs
UC-3121-T-US-LX : 474,796 hrs
UC-3121-T-EU-LX : 428,931 hrs
UC-3121-T-AU-LX : 428,931 hrs
Standards Telcordia (Bellcore) Standard
