Rugged X86-Based Vehicle-Mounted Terminal 10.4“ / 12.1“ LCD / IP66 / Windows or Android
Product out of stock
ARK-2232L

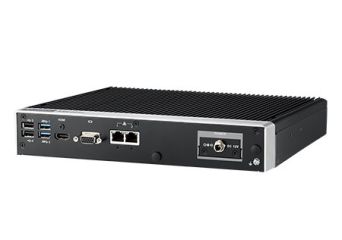

Intel® Atom® E3940 SoC Modular Fanless Box PC
- Intel Atom E3940 Quad Core Soc
- Dual independent displays with one 4K HDMI and one VGA
- 12V lockable DC jack power input
- 9-36V power module compatible with all-in-one ordering
- -20 ~ 60 °C extend temperature operating
- Mini PCIe expansion with SIM holder for communication module
- M.2 NGFF 2230 E Key for Wifi communication module
- mSATA and 1 x 2.5" SATA storage device
- Advantech iDoor module and MIOe module compatible
- Advantech EMIO miniPCIe module compatible with all-in-one ordering
- No RED Certification
Price from €528.00 Net price
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use onlyModels
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddARK-2232L-S6A2Intel Atom E3940 F1 1.6GHz VGA HDMI 4COMOut of stock Warranty: €528.00€649.44Login to check your price ARK-2232L-S6A2Intel Atom E3940 F1 1.6GHz VGA HDMI 4COMAvailability: Out of stockNet price:€528.00
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddARK-2XXX series DIN Rail mount kitsOut of stock Warranty: €39.00€47.97Login to check your price ARK-2XXX series DIN Rail mount kitsAvailability: Out of stockNet price:€39.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddAMK-V019EARK-2XXX series VESA mount kitsOut of stock Warranty: €34.00€41.82Login to check your price AMK-V019EARK-2XXX series VESA mount kitsAvailability: Out of stockNet price:€34.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddAMO-2201EARK Plus 4 RS232/422/485 + removable HDDOut of stock Warranty: €176.00€216.48Login to check your price AMO-2201EARK Plus 4 RS232/422/485 + removable HDDAvailability: Out of stockNet price:€176.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Adddesktop power supply 90W 12V 6.67AIn stockWarranty: €24.90€30.63Login to check your price desktop power supply 90W 12V 6.67AAvailability:In stockNet price:€24.90 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDIN rail power supply 60W 12V 5AIn stockWarranty: €17.20€21.16Login to check your price DIN rail power supply 60W 12V 5AAvailability:In stockNet price:€17.20 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMIOe-PWR2-00A1E 9V-36V power moduleOut of stock Warranty: €75.00€92.25Login to check your price MIOe-PWR2-00A1E 9V-36V power moduleAvailability: Out of stockNet price:€75.00
Description
Intel® Atom® E3940 SoC Modular Fanless Box PC
- Intel Atom E3940 Quad Core Soc
- Dual independent displays with one 4K HDMI and one VGA
- 12V lockable DC jack power input
- 9-36V power module compatible with all-in-one ordering
- -20 ~ 60 °C extend temperature operating
- Mini PCIe expansion with SIM holder for communication module
- M.2 NGFF 2230 E Key for Wifi communication module
- mSATA and 1 x 2.5" SATA storage device
- Advantech iDoor module and MIOe module compatible
- Advantech EMIO miniPCIe module compatible with all-in-one ordering
- No RED Certification
Technical Specification
| ARK-2232L-S6A2 | |
| CPU | Atom E3940 Quad Core SoC |
| RAM | Up to 8 GB DDR3L |
| VGA (DSub) | 1 |
| HDMI | 1 |
| Audio | Line-out, Mic-in |
| Gigabit Ethernet | 2 |
| 2,5" HDD | 1x (Max. 12.5mm) |
| mPCIe | 1 x Full-size with SIM holder |
| M.2 | 1 x M.2 2230 E key |
| DIO | 8 bit |
| USB 3.0 | 2 |
| USB 2.0 | 4 |
| RS-232 | 2 |
| RS-232/422/485 | 2 |
| TPM | Optional |
| Working temp. | -20°C ~ +60°C |
