Manufacturer: Advantech
- Intel 6th Gen Intel® Core™ U-series (i3/i5/i7)
- VGA and HDMI dual display, option 3rd display for triple display
- 12V lockable DC jack power input
- 9-36V power module compatible with all-in-one ordering
- -20 ~ 60 °C extend temperature operating
- 2 x full size mPCIe expansion for WIFI/Cellular communication module
- 1 x full size mSATA and 1 x 2.5" SATA storage device
- Advantech iDoor module compatible
- Advantech ARK Plus module support by dual layer configurations
Price from €1,289.00 Net price
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddARK-2250L-U3A4ARK-2250L A4 A201-3 i3-6100U DDR4 2.3GHzOut of stock Warranty: €1,289.00€1,585.47Login to check your price ARK-2250L-U3A4ARK-2250L A4 A201-3 i3-6100U DDR4 2.3GHzAvailability: Out of stockNet price:€1,289.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddARK-2250L-U4A4ARK-2250L A4 i3-7100U DDR4 2.4GHzOut of stock Warranty: €1,289.00€1,585.47Login to check your price ARK-2250L-U4A4ARK-2250L A4 i3-7100U DDR4 2.4GHzAvailability: Out of stockNet price:€1,289.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddARK-2250L-U6A4ARK-2250L A4 A201-3 i7-6600U DDR4 2.6GHzOut of stock Warranty: €1,956.00€2,405.88Login to check your price ARK-2250L-U6A4ARK-2250L A4 A201-3 i7-6600U DDR4 2.6GHzAvailability: Out of stockNet price:€1,956.00
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddARK-2XXX series DIN Rail mount kitsIn stockWarranty: €39.00€47.97Login to check your price ARK-2XXX series DIN Rail mount kitsAvailability:In stockNet price:€39.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddAMK-V019EARK-2XXX series VESA mount kitsIn stockWarranty: €34.00€41.82Login to check your price AMK-V019EARK-2XXX series VESA mount kitsAvailability:In stockNet price:€34.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddAMO-2201EARK Plus 4 RS232/422/485 + removable HDDOut of stock Warranty: €176.00€216.48Login to check your price AMO-2201EARK Plus 4 RS232/422/485 + removable HDDAvailability: Out of stockNet price:€176.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddAMO-2202EARK Plus 4 10/100/1000BaseT(X)PoEOut of stock Warranty: €552.00€678.96Login to check your price AMO-2202EARK Plus 4 10/100/1000BaseT(X)PoEAvailability: Out of stockNet price:€552.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddAMO-2203EARK Plus 2-port isolated CAN-BusOut of stock Warranty: €252.00€309.96Login to check your price AMO-2203EARK Plus 2-port isolated CAN-BusAvailability: Out of stockNet price:€252.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddAMO-D002EMIOe-731 DP for ARK-3530/3520/2250LOut of stock Warranty: €47.00€57.81Login to check your price AMO-D002EMIOe-731 DP for ARK-3530/3520/2250LAvailability: Out of stockNet price:€47.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddAMO-D003EMIOe-733 HDMI for ARK-3530/3520L/2250LIn stockWarranty: €51.00€62.73Login to check your price AMO-D003EMIOe-733 HDMI for ARK-3530/3520L/2250LAvailability:In stockNet price:€51.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Adddesktop power supply 90W 12V 6.67AIn stockWarranty: €26.60€32.72Login to check your price desktop power supply 90W 12V 6.67AAvailability:In stockNet price:€26.60 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDIN rail power supply 100W 12V 7.5AIn stockWarranty: €31.80€39.11Login to check your price DIN rail power supply 100W 12V 7.5AAvailability:In stockNet price:€31.80 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddMIOe-PWR2-00A1E 9V-36V power moduleIn stockWarranty: €80.00€98.40Login to check your price MIOe-PWR2-00A1E 9V-36V power moduleAvailability:In stockNet price:€80.00
Description

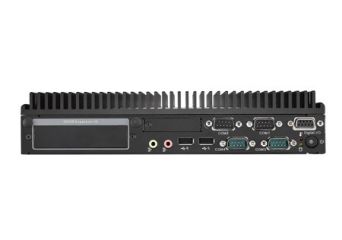

Intel 6th Generation Core™ i3/i5/i7 Modular Fanless Box PC
- Intel 6th Gen Intel® Core™ U-series (i3/i5/i7)
- VGA and HDMI dual display, option 3rd display for triple display
- 12V lockable DC jack power input
- 9-36V power module compatible with all-in-one ordering
- -20 ~ 60 °C extend temperature operating
- 2 x full size mPCIe expansion for WIFI/Cellular communication module
- 1 x full size mSATA and 1 x 2.5" SATA storage device
- Advantech iDoor module compatible
- Advantech ARK Plus module support by dual layer configurations
Technical Specification
| CPU | ||
| CPU | Core i7 6600U | Core i3 6100U |
| Frequency | 2.6 GHz (Dual-Core) | 2.3 GHz (Dual Core) |
| L3 Cache | 4MB | 3MB |
| BIOS | AMI UEFI 128 Mbit | |
| RAM | ||
| Technology | DDR4 2133 MHz | |
| Max. capacity | 16 GB | |
| Socket | 1 x 260-pin SO-DIMM | |
| Graphics | ||
| Controler | Intel HD Graphics 520 | |
| Graphic Engine | DirectX 11.3, OpenGL 4.4, and OpenCL 2.1 Full AVC/ VC1/ MPEG2 HW Decode |
|
| VGA | Up to 1920 x 1080 @ 60Hz | |
| HDMI | HDMI 1.4a for HD video playback, 4096 x 2160 @ 24Hz | |
| Dual display | Yes, VGA + HDMI | |
| Optional display | HDMI, DP | |
| Triple display | VGA + HDMI + optional modul | |
| Ethernet | ||
| LAN1 | 10/100/1000 Mbps Intel i219 GbE, support Wake On Lan | |
| LAN2 | 10/100/1000 Mbps Intel i210 GbE, support Wake On Lan | |
| Audio | ||
| Interface | Realtek ALC888S, High Definition Audio. Line-out, Mic-in | |
| I/O | ||
| Serial port | 4 x RS-232/422/485 (auto flow control) | |
| USB | 4 x USB 3.0, 2 x USB 2.0 | |
| DIO | 8bit | |
| Other | ||
| Watchdog timer | 255 levels timer interval, setup by software | |
| Expansions | ||
| Mini PCIe | 2 x full size Mini PCIe (1 x SIM holder) | |
| iDoor | 1 slot (optional) | |
| Mass memory | ||
| HDD / SSD | Supports one SATA 2.5" HDD Bay (max. height 12,5 mm) | |
| SSD | 1 x full size mSATA (shared with mPCIe) | |
| OS Support | ||
| Microsoft | Windows 10, Windows 8.1, WES7, Windows 7 | |
| Linux | Support by project | |
| Power supply | ||
| Type | ATX | |
| Power Input Voltage | 12VDC (9-36V optional) | |
| Min. Input Voltage | 12V, 5A | |
| Power supply | AC to DC, DC12V/5A, 60W (Option) | |
| Power consumption | ||
| Typical | 7.96 Watt | 6.92 Watt |
| Max. | 43.28 Watt | 41.72 Watt |
| Mechanical properties | ||
| Construction | Aluminum housing | |
| Mounting | DIN-rail, VESA, wall-mount | |
| Dimensions (W. x H. x D.) | 260 x 54 x 140.2 mm (10.24" x 2.13" x 5.52") | |
| Weight | 2.3 kg (5.07 lb) | |
| Environment | ||
| Operating temp. | With extended temperature peripherals: -20 ~ 60 °C (-4 ~ 140 °F) with 0.7m/s air flow With 2.5-inch hard disk 0 ~ 40 °C (32 ~ 104 °F) with 0.7m/s air flow |
|
| Storage temp. | -40 ~ 85 °C ( -40 ~ 185 °F) | |
| Humidity | 95% @ 40 °C (non-condensing) | |
| Vibration During Operation | With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis. | |
| Shock During Operation | With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration | |
| EMC | CE/FCC Class B, CCC, BSMI | |
| Safety Certifications | UL, CCC, BSMI | |
