1, 2, and 4-port standard serial-to-Ethernet Modbus gateways
- Small size for easy installation
- Real COM and TTY drivers for Windows, Linux, and macOS
- Standard TCP/IP interface and versatile operation modes
- Easy-to-use Windows utility for configuring multiple device servers
- SNMP MIB-II for network management
- Configure by Telnet, web browser, or Windows utility
High price? Log in and buy cheaper
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNPort 5110/EU1 port device server, 10/100M Ethernet, RS-232, DB9 male, 15KV ESD, 12-48VDCIn stockWarranty: €139.00€170.97Login to check your price NPort 5110/EU1 port device server, 10/100M Ethernet, RS-232, DB9 male, 15KV ESD, 12-48VDCAvailability:In stockNet price:€139.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNPort 5110-T1 port device server, 10/100M Ethernet, RS-232, DB9 male, 15KV ESD, 12-48VDC, -40~75?In stockWarranty: €203.00€249.69Login to check your price NPort 5110-T1 port device server, 10/100M Ethernet, RS-232, DB9 male, 15KV ESD, 12-48VDC, -40~75?Availability:In stockNet price:€203.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNPort 51101 port device server, 10/100M Ethernet, RS-232, DB9 male, 15KV ESD, 12-48VDCIn stockWarranty: €132.00€162.36Login to check your price NPort 51101 port device server, 10/100M Ethernet, RS-232, DB9 male, 15KV ESD, 12-48VDCAvailability:In stockNet price:€132.00
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDIN Rail Mounting Kit 35mm, for DE-311/211, NPort 5200/5400, NPort W2250/2150In stockWarranty: €4.00€4.92Login to check your price DIN Rail Mounting Kit 35mm, for DE-311/211, NPort 5200/5400, NPort W2250/2150Availability:In stockNet price:€4.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Addwall plug-in power supply EU 6W 12V 0.5AIn stockWarranty: €11.50€14.15Login to check your price wall plug-in power supply EU 6W 12V 0.5AAvailability:In stockNet price:€11.50 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDB9 Female to Terminal BlockIn stockWarranty: €10.00€12.30Login to check your price DB9 Female to Terminal BlockAvailability:In stockNet price:€10.00
Useful products
Industrial DIN rail power supply: HDR-30-5, HDR-30-12, HDR-30-15, HDR-30-24, HDR-30-48
5-port entry-level unmanaged Ethernet switches with metal housing
5-port entry-level unmanaged Ethernet switches with plastic housing
Description

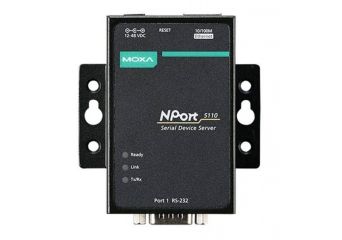

NPort® 5100 device servers are designed to make serial devices network-ready in an instant. The small size of the servers makes them ideal for connecting devices such as card readers and payment terminals to an IP-based Ethernet LAN. Use the NPort 5100 device servers to give your PC software direct access to serial devices from anywhere on the network.
Most Cost-effective Serial-to-Ethernet Solution
Using serial device servers to connect legacy serial devices to Ethernet is now commonplace, and users expect device servers to be cost-effective and to provide a broad selection of useful functions. With its full support of Microsoft and Linux operating systems and solid 5-year warranty, the NPort® 5100 Series provides the best choice for serial-to-Ethernet converters.
Adjustable Termination and Pull High/Low Resistors
In some critical environments, termination resistors may be needed to prevent the reflection of serial signals. When using termination resistors, it is also important to set the pull high/low resistors correctly so that the electrical signal is not corrupted. Since no set of resistor values is universally compatible with all environments, the NPort® 5100 device servers come with jumpers for adjusting termination and pull high/low resistor values for each serial port.
Standard TCP/IP Interface and Broad Choice of Operation Modes
The NPort® 5100 device servers can be configured for TCP Server, TCP Client, UDP Server/Client, Pair Connection, or Ethernet Modem mode, ensuring compatibility with software based on a standard network API (e.g., Winsock or BSD Sockets).
Real COM/TTY Drivers for Existing Software
The Real COM/TTY drivers provided with the NPort® 5100 device servers allow you to continue using software designed for communicating through COM/TTY ports. Installation and configuration are painless, and allows your serial devices and PC to communicate seamlessly over a TCP/IP network. Using Moxa’s Real COM/TTY drivers is an excellent way to preserve your software investment while still allowing you to enjoy the benefits of networking your serial devices.
Easy to Troubleshoot
NPort® 5100 device servers support SNMP, which can be used to monitor all units over Ethernet. Each unit can be configured to send trap messages automatically to the SNMP manager when user-defined errors are encountered. For users who do not use SNMP manager, an email alert can be sent instead. Users can define the trigger for the alerts using Moxa’s Windows utility, or the web console. For example, alerts can be triggered by a warm start, a cold start, or a change in password.
Technical Specification
- Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector) | 1 |
Magnetic Isolation Protection | 1.5 kV (built-in) |
- Ethernet Software Features
Configuration Options | Serial Console (NPort 5110/5110-T only) |
Management | DHCP Client, IPv4, SNTP, SMTP, SNMPv1, Telnet, DNS, HTTP, ARP, BOOTP, UDP, TCP/IP, ICMP |
Windows Real COM Drivers | Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
Linux Real TTY Drivers | Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x |
Fixed TTY Drivers | macOS 10.12, macOS 10.13, macOS 10.14, macOS 10.15, SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X |
Android API | Android 3.1.x and later |
MIB | RFC1213, RFC1317 |
- Serial Interface
Connector | DB9 male |
No. of Ports | 1 |
Serial Standards | RS-232 |
Operation Modes | Disabled, Ethernet Modem, Pair Connection, Real COM, Reverse Telnet, TCP Client, TCP Server, UDP |
Baudrate | 110 bps to 230.4 kbps |
Data Bits | 5, 6, 7, 8 |
Stop Bits | 1, 1.5, 2 |
Parity | None, Even, Odd, Space, Mark |
Flow Control | RTS/CTS, DTR/DSR, XON/XOFF |
- Serial Signals
RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
- Power Parameters
Input Current | 128 mA @ 12 VDC |
Input Voltage | 12 to 48 VDC |
No. of Power Inputs | 1 |
Source of Input Power | Power input jack |
- Physical Characteristics
Housing | Metal |
Dimensions (with ears) | 75.2 x 80 x 22 mm (2.96 x 3.15 x 0.87 in) |
Dimensions (without ears) | 52 x 80 x 22 mm (2.05 x 3.15 x 0.87 in) |
Weight | 340 g (0.75 lb) |
Installation | Desktop, DIN-rail mounting (with optional kit), Wall mounting |
- Environmental Limits
Operating Temperature | Standard Models: 0 to 55°C (32 to 131°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
Storage Temperature (package included) | -40 to 75°C (-40 to 167°F) |
Ambient Relative Humidity | 5 to 95% (non-condensing) |
- Standards and Certifications
EMC | EN 55032/24 |
EMI | CISPR 32, FCC Part 15B Class A |
EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF IEC 61000-4-11 |
Safety | UL 60950-1 |
- MTBF
Time | 3,126,448 hrs |
Standards | Telcordia (Bellcore) Standard TR/SR |
